Bosch 11236VS User Manual

-6-
Model number 11236VS
Voltage rating 120V 50 - 60Hz
Amperage rating 7.5 A
No load speed n
0
0-850/min
Shank style SDS-plus
®
Maximum Capacities:
Carbide tipped bits
1-1/8
"
Thin wall core bits
3
"
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories.
Such preventive safety
measures reduce the risk of starting the tool accidentally.

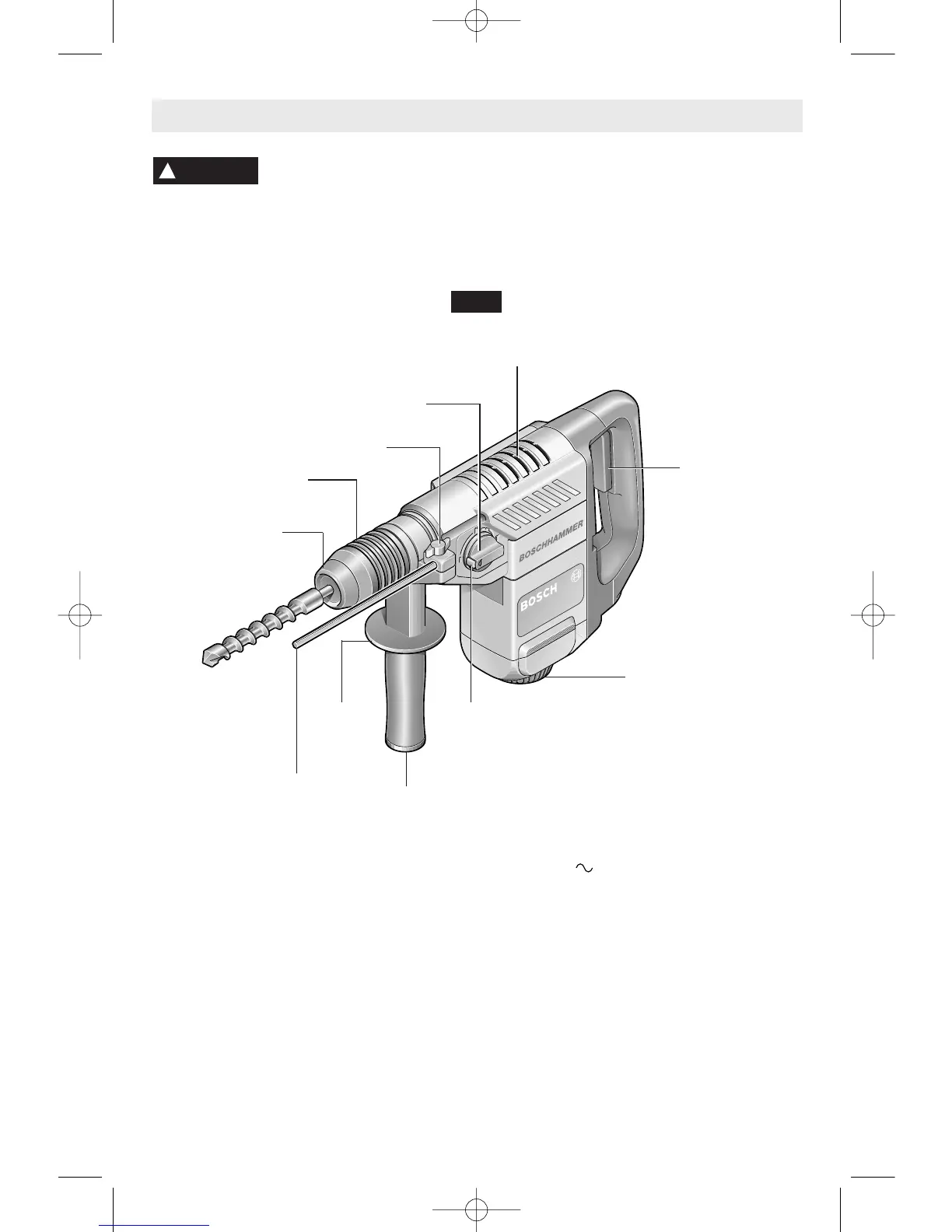

Rotary Hammer
DUST SHIELD
LOCKING SLEEVE
WING KNOB
VARIABLE
SPEED
CONTROLLED
TRIGGER
SWITCH
VENTILATION
OPENINGS
HAND GRIP
AUXILIARY
HANDLE
SELECTOR LEVER
DEPTH
GAUGE
RELEASE
BUTTON
VENTILATION OPENINGS
!
WARNING
FIG. 1
BM 1619929532 02-08 2/15/08 4:00 PM Page 6

Bosch 11236VS Specifications

General

Chuck Size	SDS-plus
Voltage	120V
Impact Energy	2.6 ft-lbs
Max. Capacity in Concrete	1-1/8 in
Operating Modes	Rotary Hammer, Hammer Only, Rotation Only
Max. Concrete Drilling Capacity	1-1/8 in.
