Bosch 1297D - Functional Description and Specifications

-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Orbital Sander

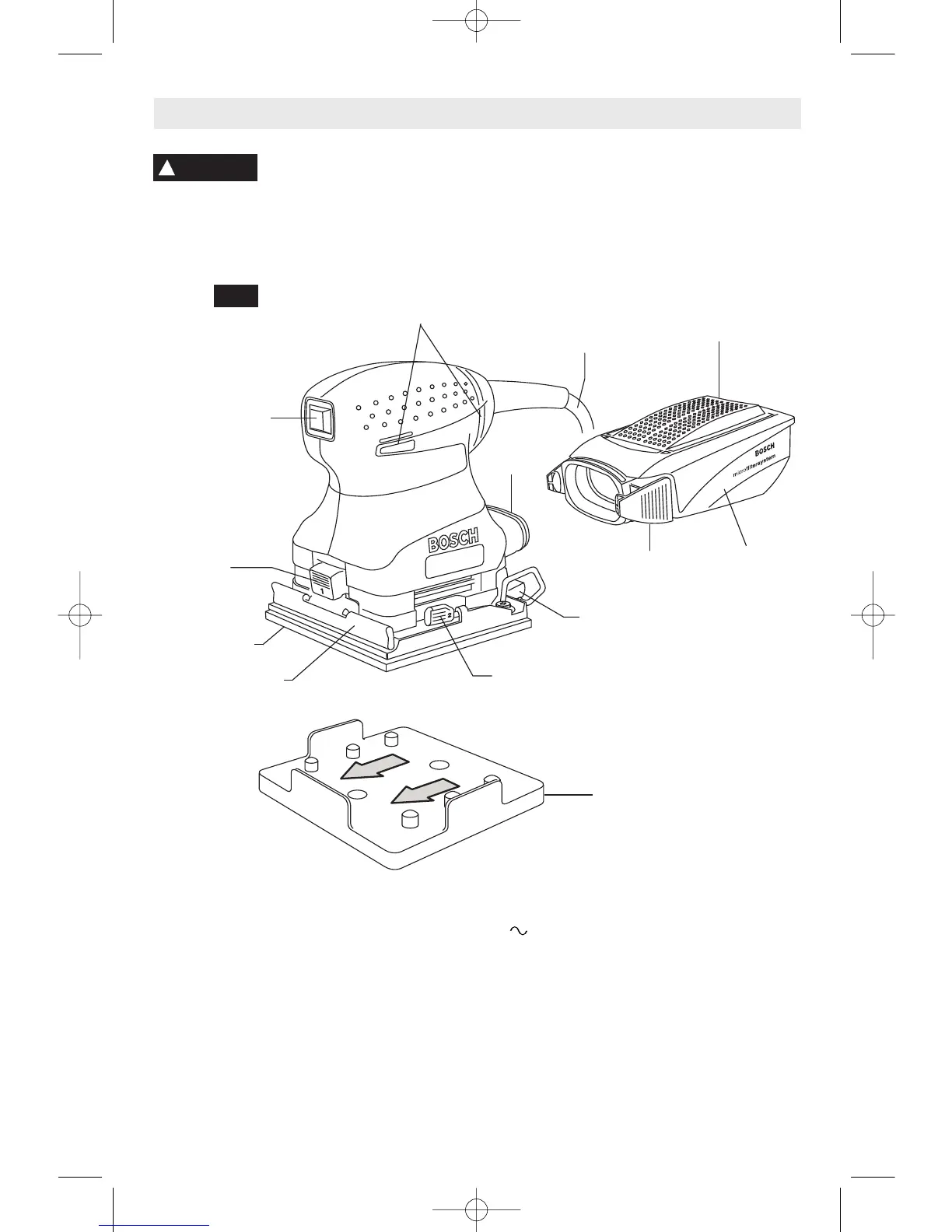

FIG. 1
SWITCH
PAD
SHEETLOC™
FRONT
CLAMP
RELEASE
BUTTON
SHEETLOC™
REAR CLAMP
LEVER
CORD
NOTE: For other tool specifications refer to the nameplate on your tool.
RELEASE
TABS
DUST
PORT
MICROFILTER
DUST CANISTER LID
MICROFILTER
DUST
CANISTER
VENTILATION
OPENINGS
PUNCH PLATE
Model Number: 1297D
Voltage Rating: 120 V 50 - 60Hz
Amperage Rating:
2.0 A
No Load Speed: n
0
12,000/min
Pad Size: 4 1/2” x 4 1/8” (1/4 sheet)
Regular Paper: 4 1/2” x 5 1/2”
PSA (Stick-On) Paper:
4 1/2” x 4 1/2”
REAR CLAMP
SPRING PLATE
FRONT
CLAMP
