22
Router Table Operation

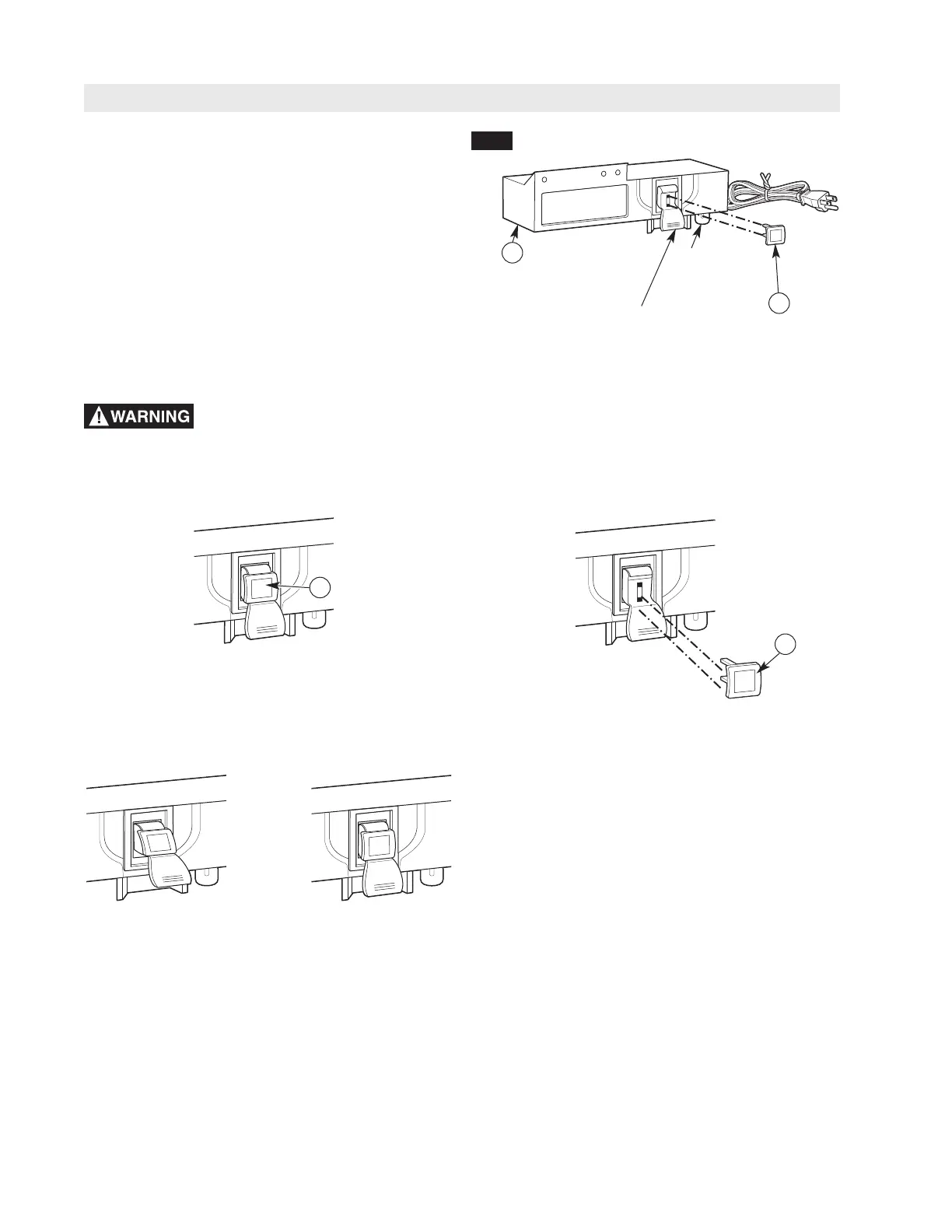

SWITCH OPERATION (Fig. 17)
This section explains the operation and features of the
switch box assembly prior to plugging the power cord into
a power outlet. The intent is to familiarize the user with
the switch operation without actually turning ON the router.
The switch box (14) (Fig. 17) incorporates a lockout key
(14A) to help prevent unauthorized use by others.
• The lockout key (14A) is the yellow part in the top of
the red plastic paddle. The yellow lockout key must
be completely inserted into the top of the red plastic
paddle and switch box (14) before the paddle can be
turned ON.
• The circuit reset button for the switch box (14) is on the
bottom right side of the box.
Make sure that the extension cord
is not plugged into an electrical
outlet before proceeding any further.
1. Make sure the yellow lockout key (14A) is completely
inserted in the top of the red plastic paddle.
Red plastic paddle
(ON/OFF switch)
FIG. 17
4. To prevent unauthorized use, the switch can be
disabled by removing the yellow lockout key (14A)
completely from the top of the red plastic paddle.
2. To turn the router ON, lift the red plastic paddle up to
the ON position.
3. To turn the router OFF, press the red plastic paddle to
the OFF position.
Circuit
reset button
14
OFF
(DOWN)
ON
(UP)
14A
14A
14A
