Functional Description and Specifications

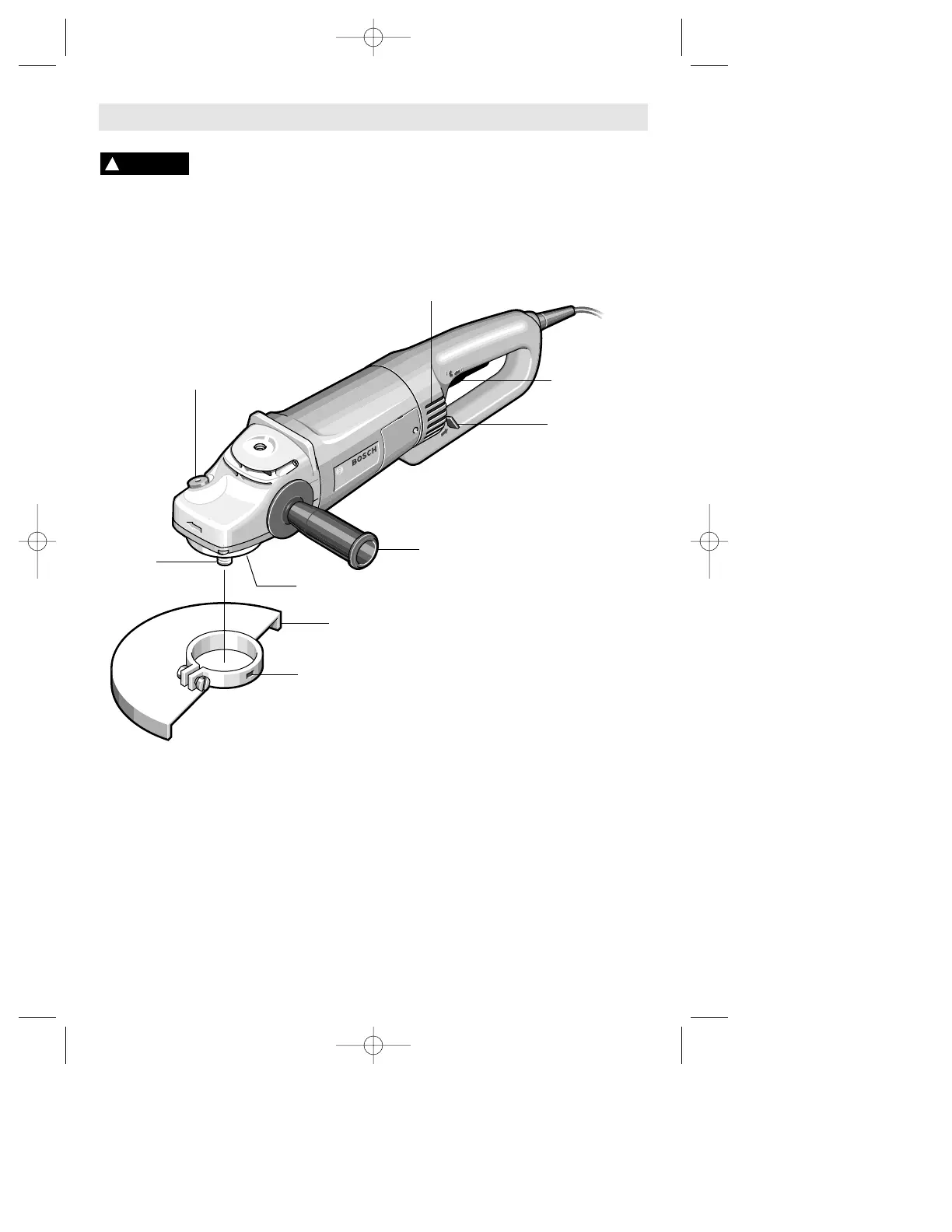

SPINDLE LOCK
SIDE HANDLE
MOTOR HOUSING
RELEASE LEVER
(1754G ONLY)
WHEEL
GUARD
VENTILATION
OPENINGS
PADDLE SWITCH
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Model number 1752G & 1754G 1752G7
Spindle thread 5/8"-11 UNC 5/8"-11 UNC
Max. grinding wheel (Type 27) 9" Dia. 7" Dia.
Max. flared cup wheel (Type 11) 5” Dia. 5” Dia.
Max. wire wheel 6" Dia. 6" Dia.
Max. wire cup brush 6" Dia. 6" Dia.
Max. sanding disc 9" Dia. 9" Dia.
LOCATING
TAB
Angle Grinders
SPINDLE
MOUNTING
FLANGE
NOTE: For tool specifications refer to the nameplate on your tool.
