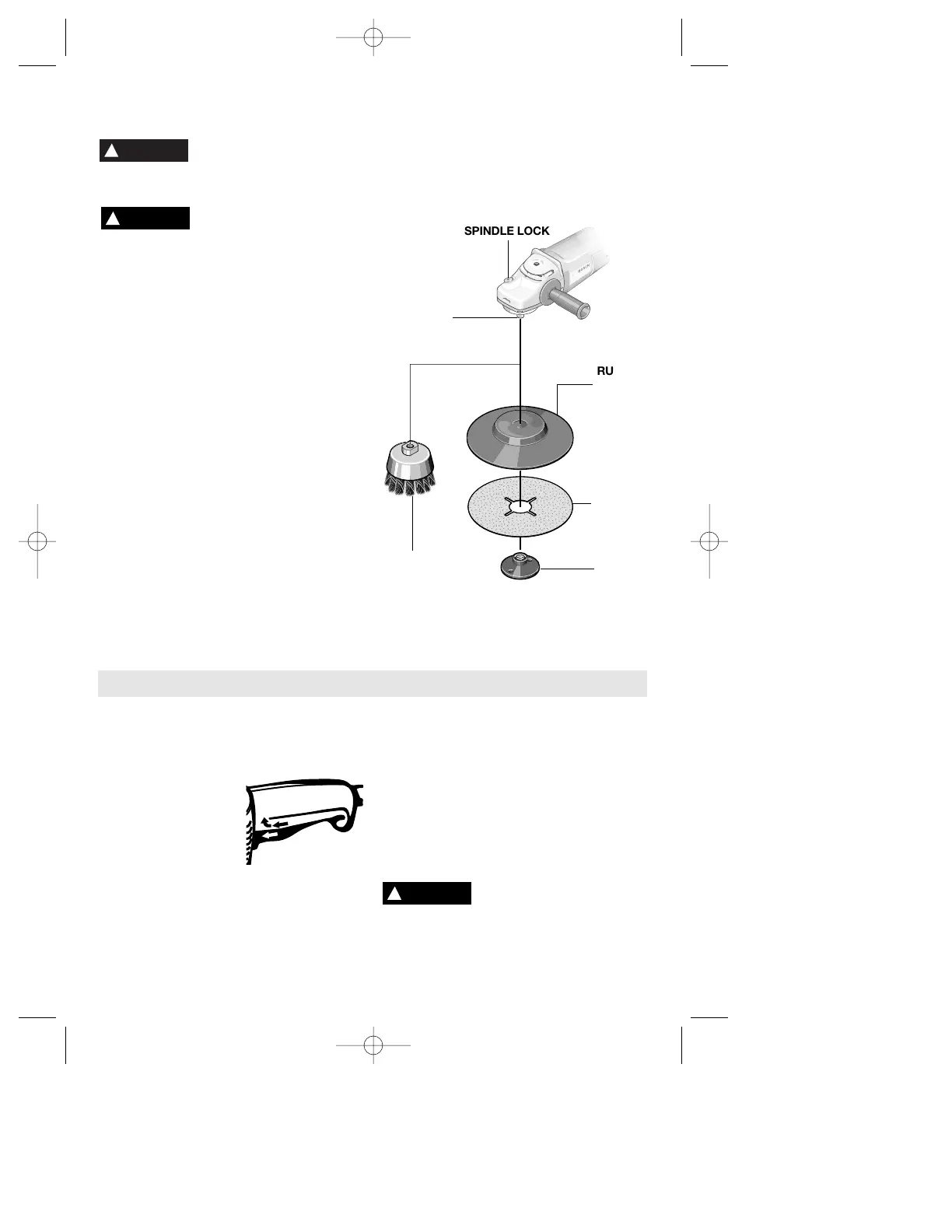

Sanding Accessories Assembly
BACKING PAD
Before attaching a backing
pad be sure its maximum
safe operating speed is not exceeded by the
nameplate speed of the tool.
Wheel guard may not be
used for most sanding
operations. Always reinstall wheel guard
when converting back to grinding
operations.
TO INSTALL BACKING PAD AND
SANDING DISC
Disconnect tool from power source. Set the
tool on its top side (spindle up). Place the
rubber backing pad onto the spindle shaft.
Center the sanding disc on top of the
backing pad. Insert the lock nut through the
disc and thread onto the spindle as far as
you can with your fingers. Press in the
spindle lock, then tighten the backing pad
securely with lock nut wrench.
TO REMOVE BACKING PAD AND
SANDING DISC
Disconnect tool from power source. Using
the lock nut wrench unscrew the nut from
the spindle, while holding spindle lock in.
WIRE BRUSH ASSEMBLY
Before assembling wire brush to this tool,
disconnect from the power source. Wire
brushes are equipped with their own
threaded hub, simply thread on to spindle.
Be sure to seat against shoulder before
turning tool “ON”.
SIDE HANDLE
The side handle used to guide and balance
the tool can be threaded into the front
housing on either side, and on top of the tool,
depending on personal preference and
comfort. Use the side handle for safe control
and ease of operation.
-8-
!
WARNING
!
WARNING
SPINDLE LOCK
RUBBER
BACKING
PAD
SANDING
DISC
LOCK NUT
SPINDLE
SPIN-ON
WIRE
BRUSH
Operating Instructions
"TRI-CONTROL" PADDLE SWITCH
The “Tri-Control” Paddle Switch enables the
operator to control the switch functions of
"Lock-OFF", "ON/OFF"
and "Lock-ON".
TO UNLOCK SWITCH
AND TURN TOOL
"ON": Push paddle
lever FORWARD
(toward the spindle)
then squeeze the paddle lever.
TO SWITCH TOOL "OFF": Release pressure
on paddle lever. The switch is spring loaded
and will return to "OFF" position
automatically.
The "Lock-ON" feature, incorporated into
the paddle switch, is a convenience for long
operations.
TO LOCK SWITCH "ON": After paddle
switch has been activated push paddle lever
completely FORWARD and release paddle
lever.
TO SWITCH TOOL "OFF": Squeeze and then
release paddle lever. The switch is spring
loaded and will return to "OFF" position
automatically.
Hold the tool with both
hands while starting the
tool, since torque from the motor can cause
the tool to twist.
Start the tool before applying to work and let
