Bosch Climate 5000 Series Multi Zone Ductless Air Conditioner / Heat Pump Installation Manual
05.2019 | Bosch Thermotechnology Corp.
Data subject to change

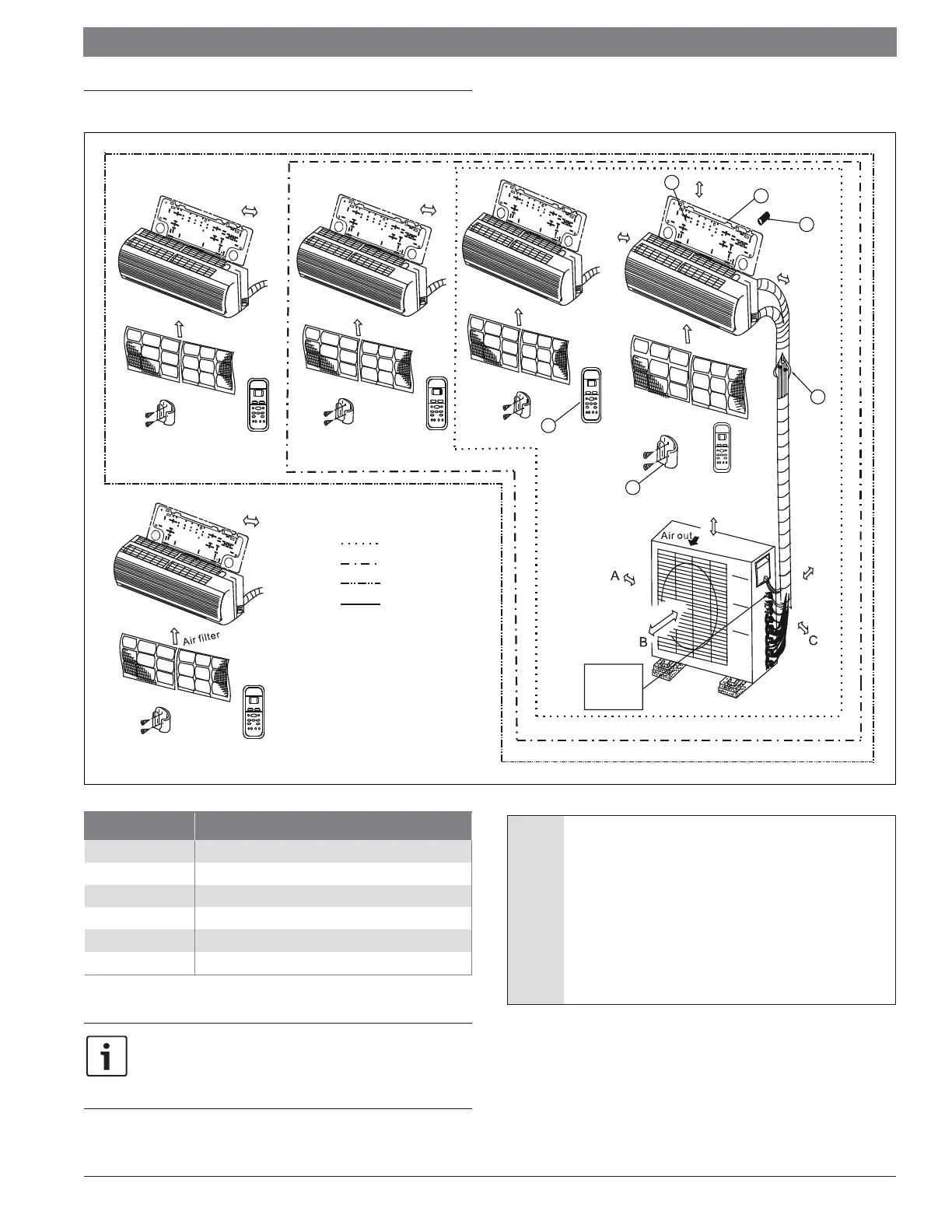

4 Installation Diagram
Figure 2
More than 5.9in
More
than 78.7in
1
5
3
2
4
6
Two-Zone
Three-Zone
Four-Zone
Five-Zone
More than
4.7in
More than
4
.7in
Air Filter
Air Filter
More than
4.7in
Air Filter
More than 4.7in
More than 23.6in
More than
11.8in
More than
11
.8in
More than
23.6in
Loop a
connective
cable
More than
4.7in
Air Filter
Number Name
1 Installation plate
2 Mounting screw
3 Clip anchor
4 Signal/Power cable & Drain pipe
5 Remote control
6 Remote control holder
Table 2
Diagram shown using Wall Mounted Indoor unit only. Indoor unit can be
changed with Four-Way Cassette, Concealed Ducted type indoors or
mixed based on applications. Please refer to Installation Manual from
Indoor Unit for Indoor unit installation procedures.
NOTICE:
Copper lines must be independently insulated.
To prevent wall damage, use a stud finder to locate studs.
A minimum pipe run of 10 ft is recommended to minimize
vibration & excessive noise.
Two of the A, B, and C air circulation pathways must be free
from obstructions at all times.
