Inserting and Removing the battery
u Always switch off the battery and the eBike sys-
tem when inserting the battery into the holder
or removing it from the holder.

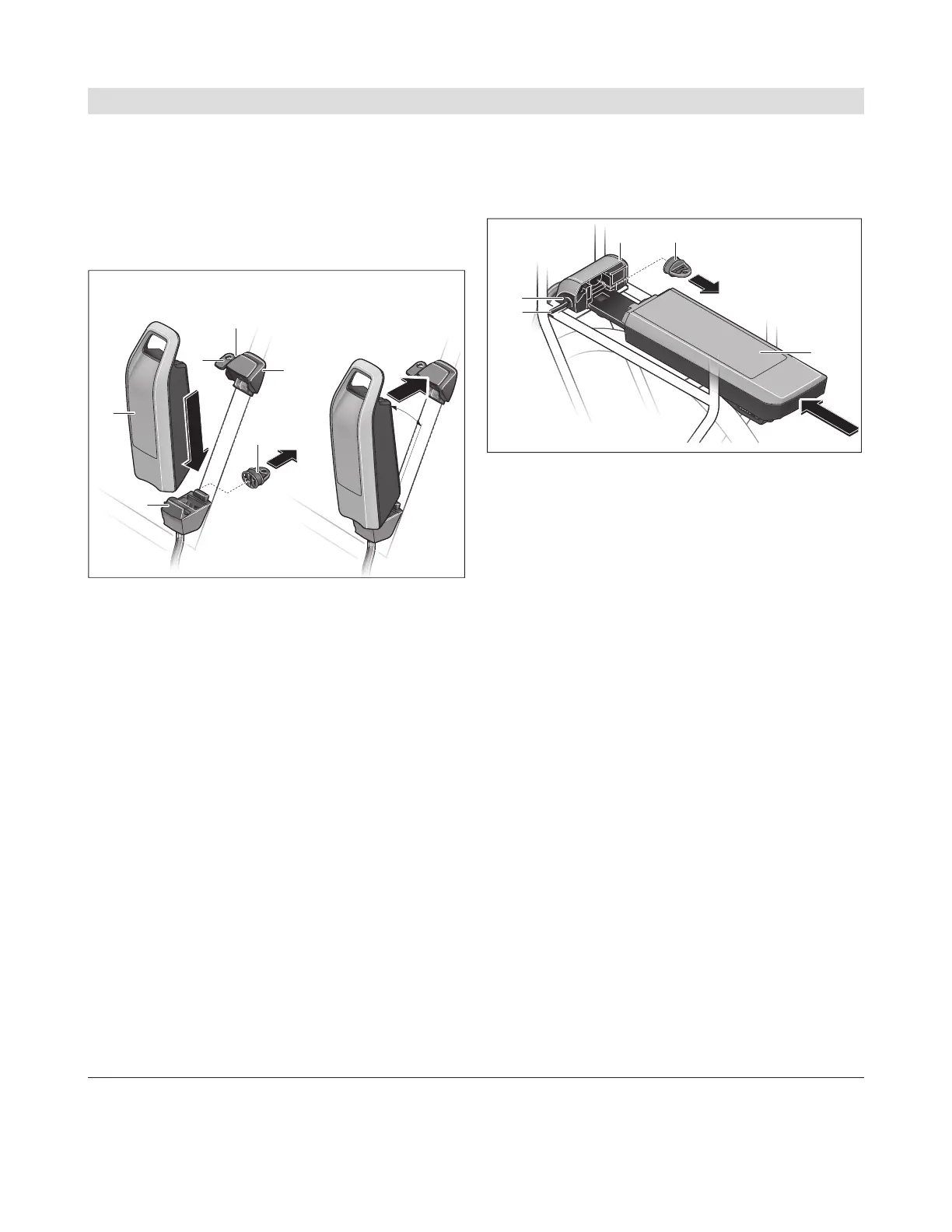

Inserting and Removing the Standard Battery
In order for the battery to be inserted, the key (5)
must be inserted into the lock (6) and the lock must
be open.
To insert the standard battery (8), place it onto the
contacts on the lower holder (9) on the eBike (the
battery can be tilted towards the frame by up to 7°).
Tilt it into the upper holder (7) as far as possible.
u Always check that the battery pack is locked in
place. To do this, pull on the battery pack (after the
key has been removed).
Check that the battery is secure. Always secure the
battery by closing the lock (6) – otherwise the lock
may open and the battery may fall out of the holder.
Always remove the key (5) from the lock (6) after
closing it. This prevents both the key from falling out
and the battery from being removed by unauthorized
third parties when the eBike is not in use.
To remove the standard battery (8), switch it off
and open the lock using the key (5). Tilt the battery
out of the upper holder (7) and pull it out of the lower
holder (9).
Inserting and removing the rack-mounted battery
In order for the battery to be inserted, the key (5)
must be inserted into the lock (6) and the lock must
be open.
To insert the rack-mounted battery (2), slide it con-
tacts-first into the holder (1) on the rack until it clicks
into place.
u Always check that the battery pack is locked in
place. To do this, pull on the battery pack (after the
key has been removed).
Check that the battery is secure. Always secure the
battery by closing the lock (6) – otherwise the lock
may open and the battery may fall out of the holder.
Always remove the key (5) from the lock (6) after
closing it. This prevents both the key from falling out
and the battery from being removed by unauthorized
third parties when the eBike is not in use.
To remove the rack-mounted battery (2), switch it
off and open the lock using the key (5). Pull the bat-
tery out of the holder (1).
English – 11
Bosch eBike Systems 0 275 U07 XPX | (10.01.2019)
