English – 12
0 275 U07 XPX | (10.01.2019) Bosch eBike Systems

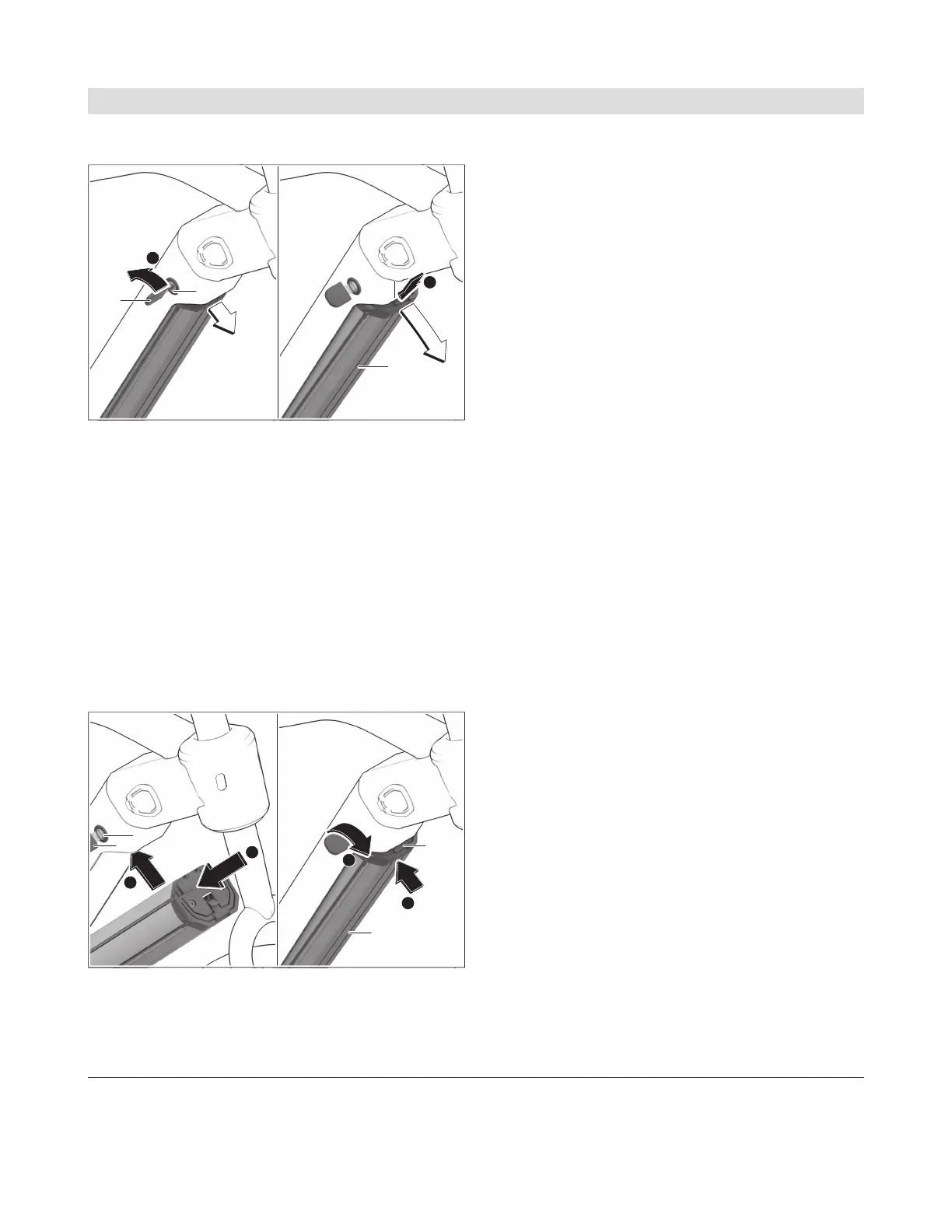

Removing the PowerTube battery
❶
To remove the PowerTube battery (15), open
the lock (6) using the key (5). The battery will be
unlocked and fall into the safety restraint (14).
❷ Press on the safety restraint from above. The
battery will be unlocked completely and fall into
your hand. Pull the battery out of the frame.
Note: As a result of varying designs, the PowerTube
battery may need to be inserted and removed using a
different method. In this case, consult the bicycle
documentation provided by your bicycle manufac-
turer.
Inserting the PowerTube battery
In order for the battery to be inserted, the key (5)
must be inserted into the lock (6) and the lock must
be open.
❶
To insert the PowerTube battery (15), place it so
that its contacts are in the lower holder of the
frame.
❷ Push the battery upwards until it is held by the
safety restraint (14).
❸ Hold the lock open with the key and press the
battery upwards until you hear it click into place.
Check that the battery is secure in all directions.
❹
Always secure the battery by closing the lock (6)
– otherwise the lock may open and the battery
may fall out of the holder.
u Always check that the battery pack is locked in
place. To do this, pull on the battery pack (after the
key has been removed).
Always remove the key (5) from the lock (6) after
locking it. This prevents both the key from falling out
and the battery from being removed by unauthorized
third parties when the eBike is not in use.
