23

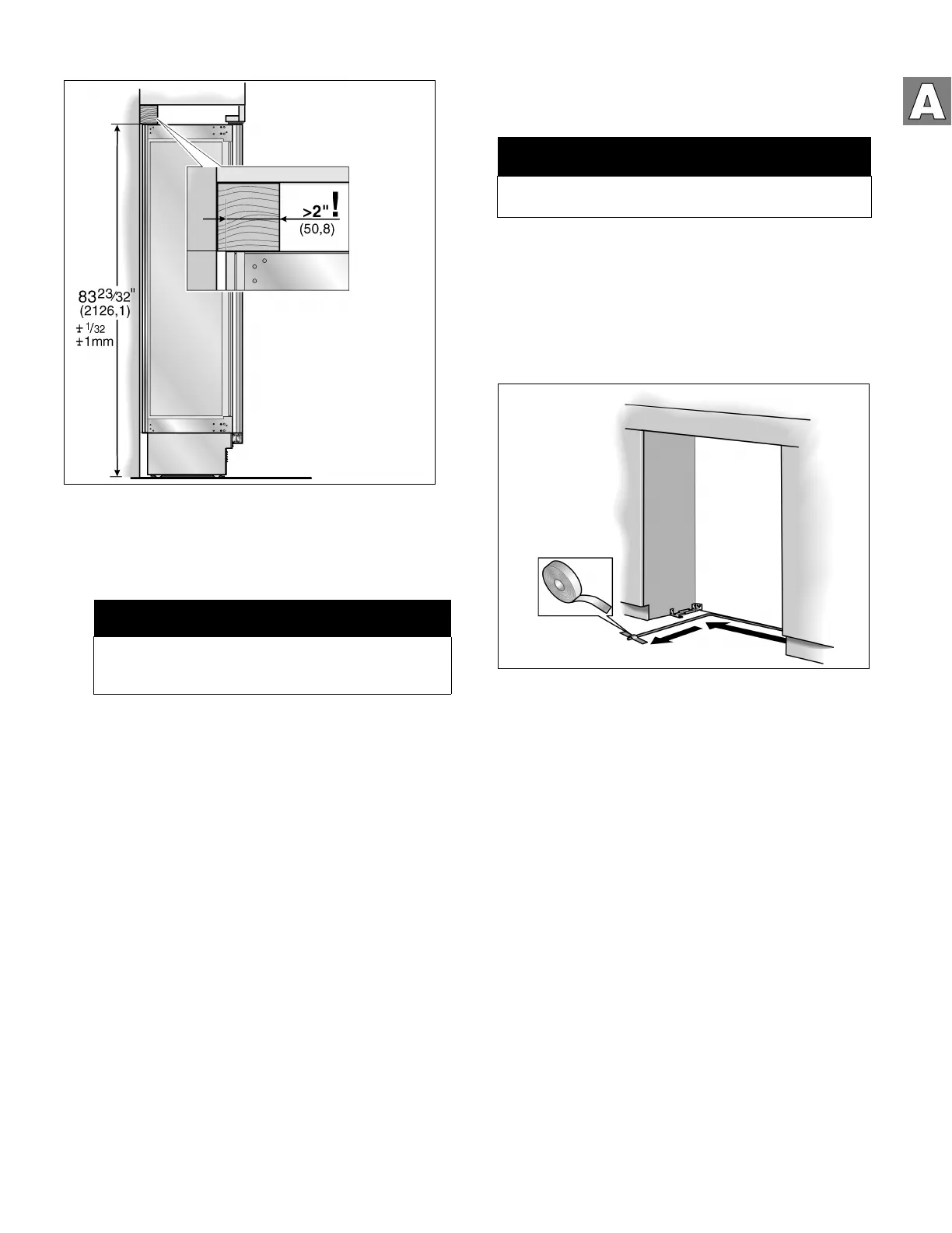

Mark the installation height (lower edge of the beam) on
the rear panel of the cavity.
Select screws according to the thickness of the wooden
beam: length = min. 2.5 x beam thickness, diameter
#12 or #14.
According to the subsurface:
Locate wall studs near the rear panel of the cavity and
mark drill holes in the beam
or
Fasten suitable dowel into the rear wall.
Predrill the wooden beam.
Attach the wooden beam to the rear panel of the cavity.
8. Preparing to connect the water
(only for appliances which require a water connection)
Attach the connecting pipe to the shut-off valve
according to the instructions supplied by the
manufacturer of the ice maker installation kit.
Install the connecting pipe.
Always observe the indicated gap dimensions to
prevent damage to the connecting pipe when pushing
in the appliance.
Attach the connecting pipe to the floor with adhesive
tape.
NOTE
Specify the number of screws according to the
cavity width, thereby ensuring that the beam can be
attached securely.
m
CAUTION
m
Turn off the main water tap to prevent damage caused
by leaking water.
