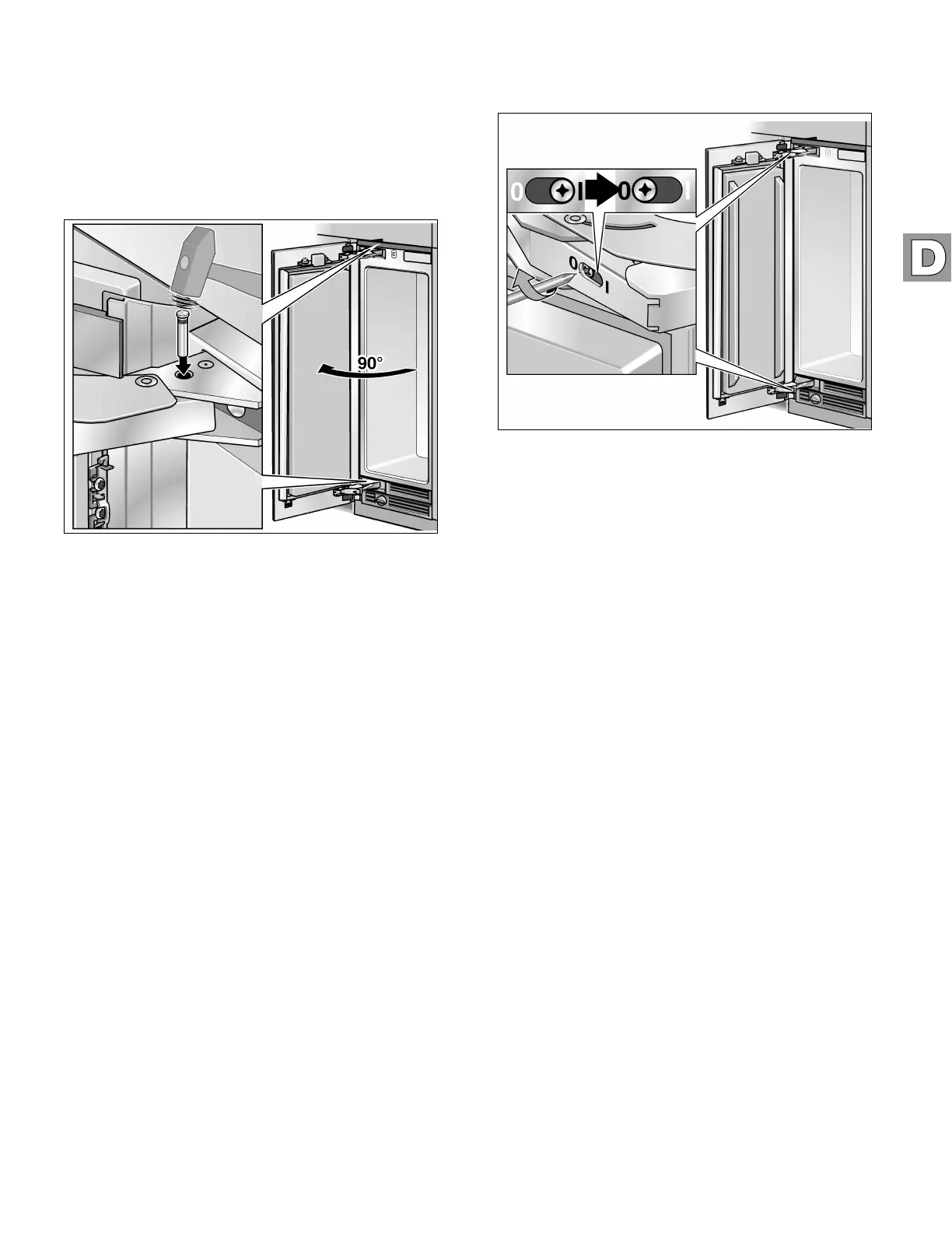

30. Adjusting the door opening angle
Depending on the installation situation, it may be necessary
to adjust the door opening angle. A door opening angle of
115° has been set at the factory.
To adjust the door opening angle to 90°:
Open door to 90°.
Insert the banking pin through the boreholes which are
now vertically aligned and drive in with a hammer.
31. Changing the door spring
Rotate the adjusting screw with a cross-head
screwdriver.
I = maximum spring tension
0 = no spring tension
