Product description and
specifications
Product features PowerPack
(6)
(5)
(1)
(13)
(12)
(2)
(3) (4)
(11)
(10)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(12)
(13)

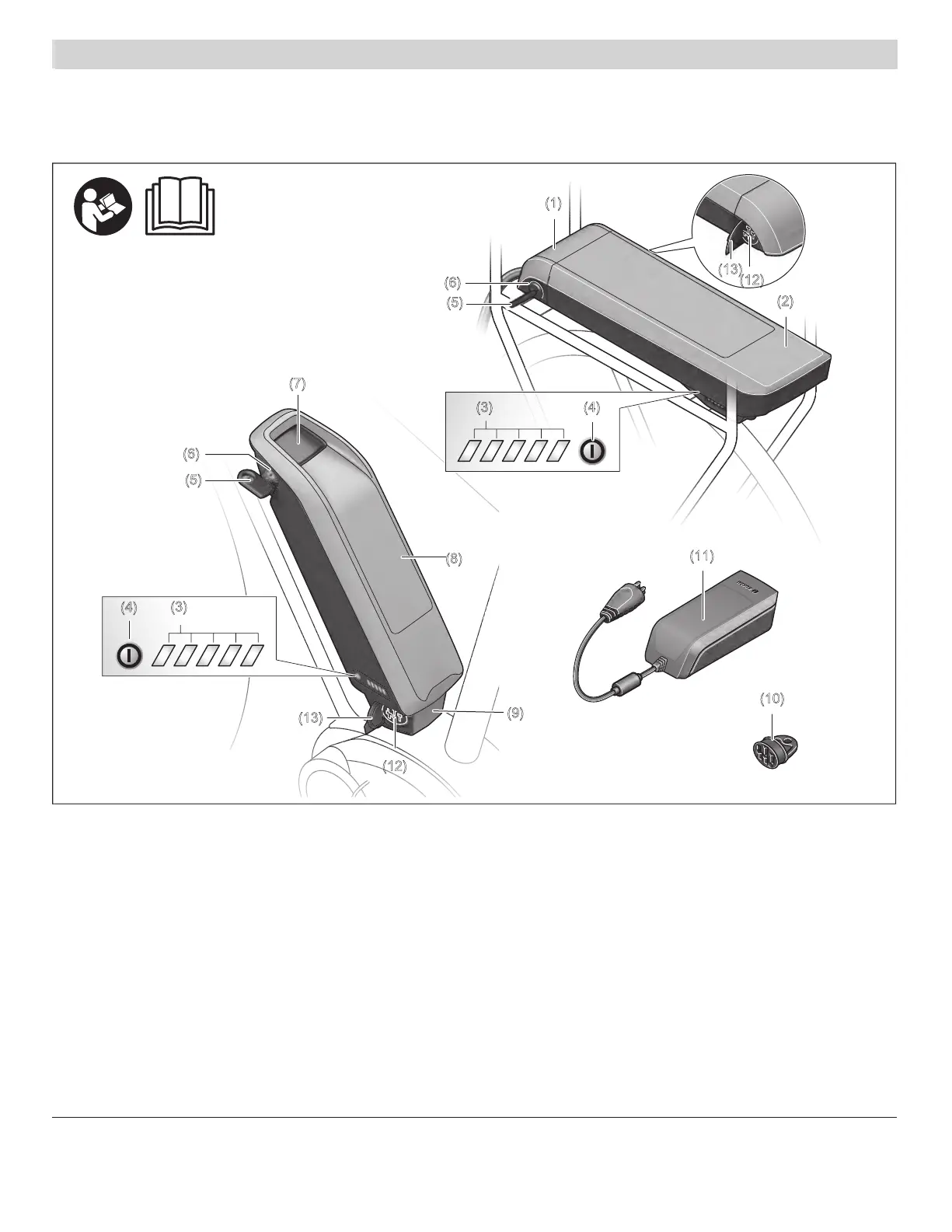

All representations of bike components are schematic
and can deviate from your eBike.
(1)
Rack-mounted battery holder
(2)
Rack-mounted battery
(3)
Operation/state of charge indicator
(4)
On/off button
(5)
Key for the battery lock
(6)
Battery lock
(7)
Upper holder for standard battery
(8)
Standard battery
(9)
Lower holder for standard battery
(10)
Cover (supplied only on eBikes with two bat-
tery packs)
(11)
Charger
(12)
Socket for charging connector
(13)
Charging socket cover
