Product description and
specifications
(1)
(2)
(3)
(4)
(6)
(7)
24
5
!
KM/H
KM
48
%
18
da b c e jhf g i
(5)
(1)

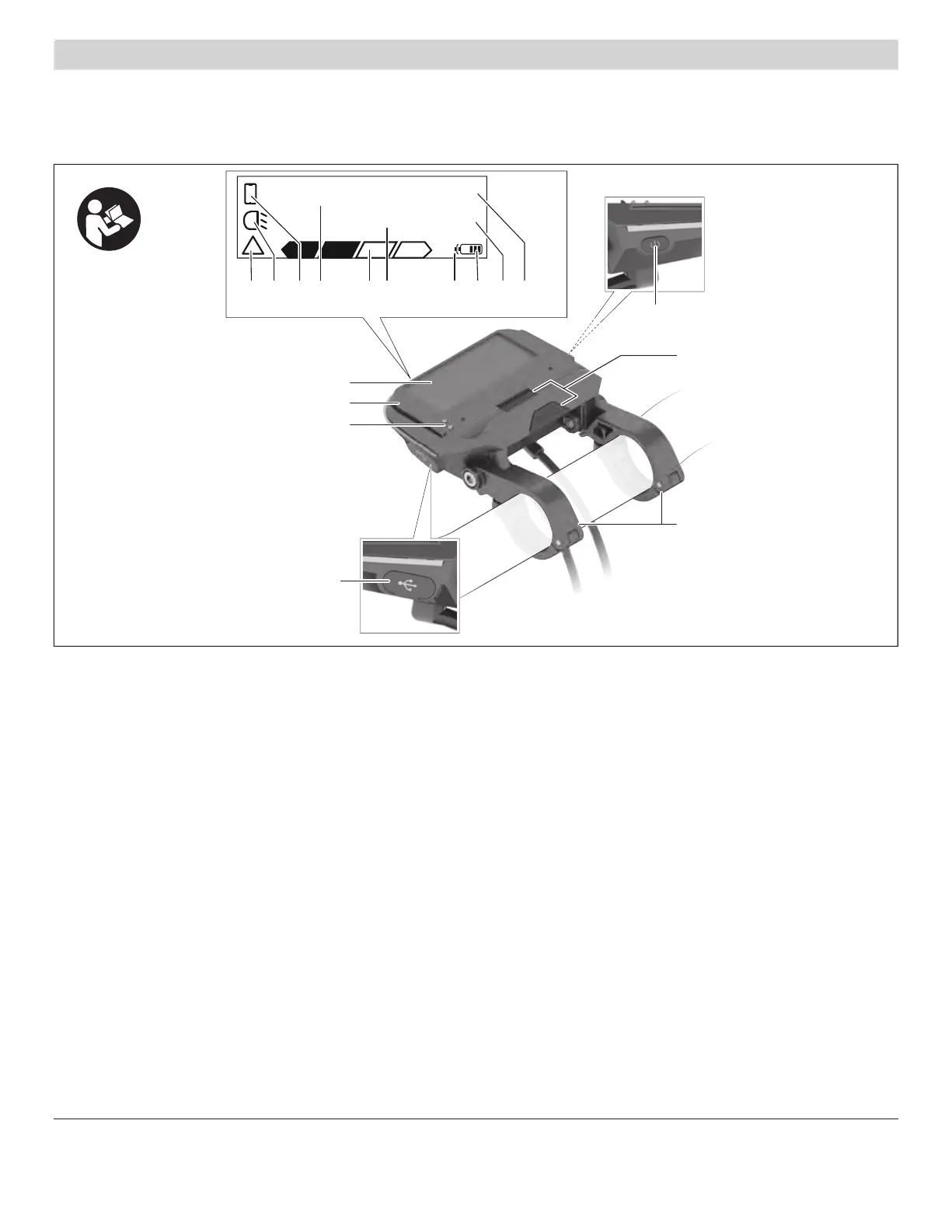

SmartphoneHub
(2)
On/off button for SmartphoneHub
(3)
Release lever for smartphone holder
(4)
Holder for SmartphoneHub
A)
(5)
Protective cap for USB port
(6)
Power supply for smartphone holder
(7)
Display
A)
For mounting on the handlebars, custom solutions are possi-
ble even without the use of the handlebar clamps.
Display elements for SmartphoneHub
a
Error indicator
b
Bike lights display
c
Smartphone connection indicator
d
Speed
e
Assistance level indicator
f
Unit indicator
g
Indicator for second battery (optional)
h
Battery charge indicator
i
State of charge of the battery
j
Operating range
