English – 4
1 270 U20 XBI | (28.02.2019) Bosch eBike Systems
Product Description and
Specifications
Product Features
TURBO
SPORT
TOUR
ECO
OFF
MPH
KM/H
Range
AMM
PMWH
MIN
MPH
KM/H
RESET
TURBO
SPORT
SPORT
TOUR
ECO
OFF
MPH
KM/H
Range
AMM
PMWH
MIN
MPH
KM
/H
TURBO
SPORT
TOUR
ECO
OFF
MPH
KM/H
Range
AMM
PMWH
MIN
MPH
KM/H
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(h)
(i)
(7)
(8)
(1)
(2)
(3)
(4)
(5)
(6)
(9)
(10)
(11)
(12)
(13)

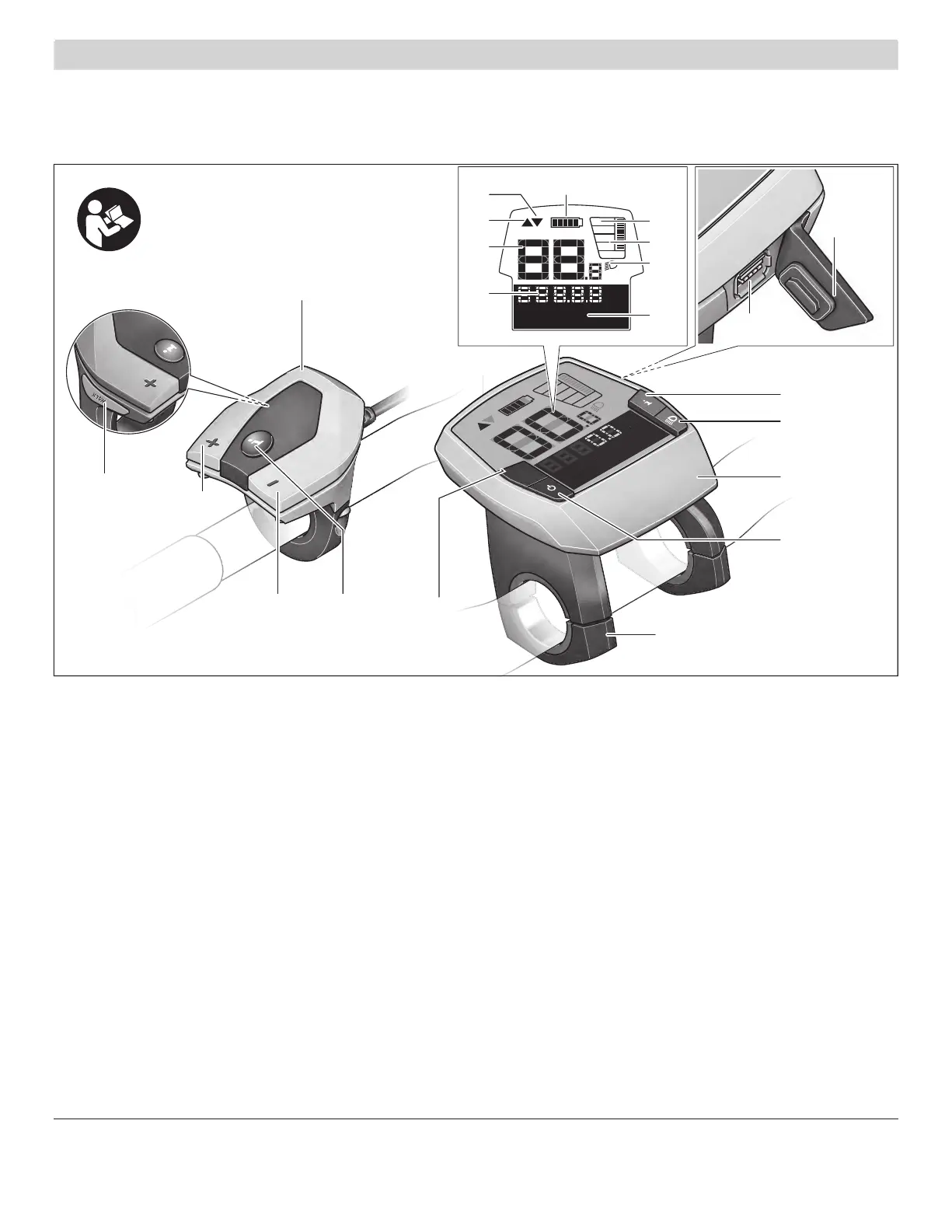

(1) Display function buttoni
(2)
Bike light button
(3)
On-board computer
(4)
Holder for on-board computer
(5)
On/off button for on-board computer
(6) RESET button
(7)
USB port
(8)
Protective cap for USB port
(9)
Operating unit
(10) Display function buttoni on the operating unit
(11)
Decrease assistance level/scroll down but-
ton–
(12) Increase assistance level/scroll up button+
(13) Push assistance button WALK
(14)
Locking mechanism for on-board computer
(15)
Locking screw for on-board computer
USB charging cable (Micro A – Micro B)
A)
A)
Not depicted, available as an accessory
Display elements of on-board computer
(a)
Drive unit assistance indicator
(b)
Assistance level indicator
(c)
Illumination indicator
(d)
Text indicator
(e)
Value indicator
(f)
Speedometer
(g)
Gear change recommendation: Higher gear
(h)
Gear change recommendation: Lower gear
(i)
Battery charge indicator
EN-69
