Bosch 96% AFUE Gas Furnace Installation, Operation & Maintenance
04.2019 | Bosch Thermotechnology Corp.
Data subject to change

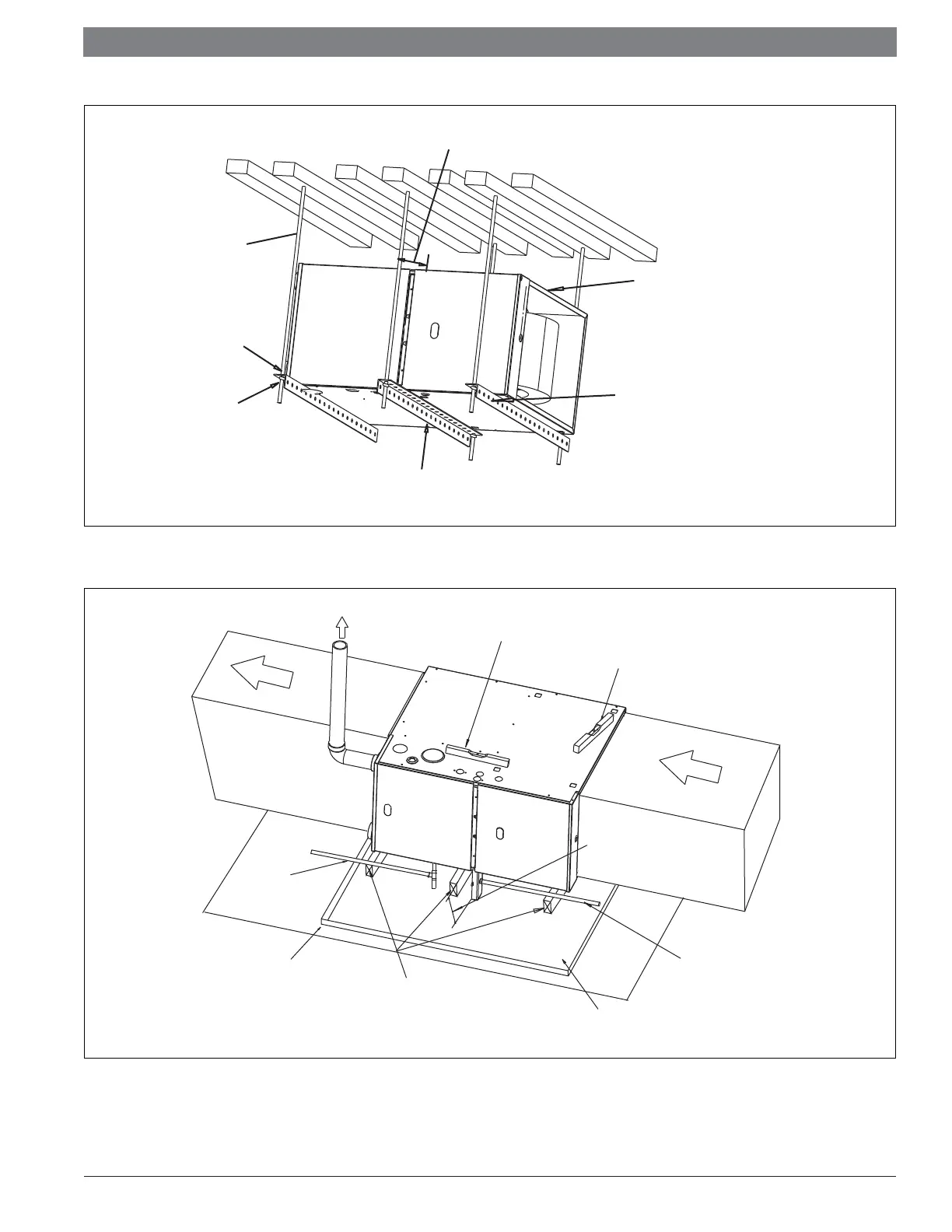

Figure 10
PROVIDE 8" MINMUM CLEARANCE BETWEEN
CENTER ROD AND FURNACE CABINET
TO ALLOW FOR CIRCULATOR BLOWER REMOVAL
3/8" DIAMETER
THREADED ROD
(6 PLACES)
SUPPORT NUTS
2"X2"X1/8" ANGLE IRON
(3 PLACES)
POSITION AS CLOSE AS POSSIBLE
TO BLOWER DECK TO ALLOW FOR
CIRCULATOR BLOWER REMOVAL
ASSURE FURNACE IS LEVEL FROM
END TO END AND HAS A SLIGHT
FORWARD TILT WITH THE FRONT
OF THE FURNACE 3/4"
BELOW THE BACK OF THE FURNACE
TILT OUTWARD TO ALLOW FOR
DOOR AND CIRCULATOR BLOWER
REMOVAL
HOLD DOWN NUTS
Horizontal Installation
Figure 11
FURNACE MUST BE LEVEL
FROM END TO END.
FURNACE MUST BE SLIGHTLY TILTED
FORWARD WITH THE DOORS 1/2”~3/4”
BELOW THE BACK PANEL.
7” MINIMUM DRAIN
TRAP CLEARANCE
DRAIN PAN
GAS LINE WITH DRIP
LEG (3” MINIMUM)
DRAIN LINE WITH 1/4” PER
FOOT DOWNWARD SLOPE
36” MINIMUM SERVICE
CLEARANCE REQUIRED
FURNACE MUST BE SUPPORTED
AT BOTH ENDS AND MIDDLE
Horizontal Installation
