Bosch BGH96M080C4A - 2 Dimensions

Installation, Operation & Maintenance Manual Bosch 96% AFUE Gas Furnace | 7
Bosch Thermotechnology Corp. | 04.2019
Data subject to change
2 Dimensions

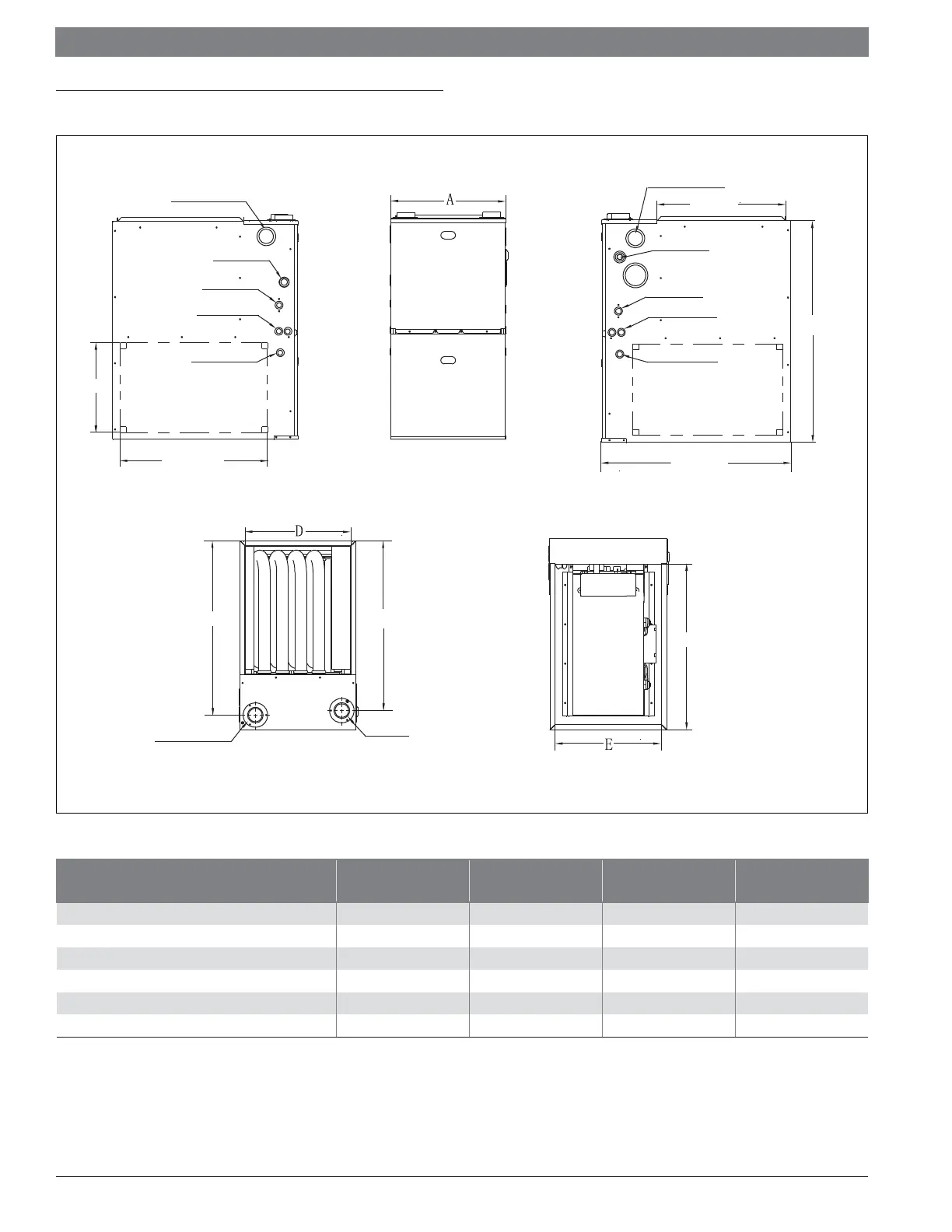

Figure 1
(Right)
(Front)(Left)
)devomer lenap htiw mottoB()poT(
LEFT SIDE RETURN AIR
22-13/16”(580mm)
14”(355mm)
Combustion Air Inlet
Gas Pipe Entry
Electrical Entry
Condensate Drain
Thermostat Wiring
33-3/4”(857mm)
28-3/4”(730mm)
19-1/2”(495mm)
RIGHT SIDE RETURN AIR
Combustion Air Inlet
Gas Pipe Entry
Electrical Entry
Condensate Drain
Thermostat Wiring
24”(610mm)
26-1/2”(672mm) 25-3/4”(655mm)
Combustion Air Inlet
Vent Outlet
Dimensions
Furnace Model
"A" Cabinet Width
In. (mm)"
"D" Supply- Air Width
In. (mm)"
"E" Return- Air Width
In. (mm)"
Shipping Weight
lbs (kgs)
BGH96M060B3A 17.5 (445) 16 (406) 15-27/32 (402) 162.5 (73.7)
BGH96M080B3A 17.5 (445) 16 (406) 15-27/32 (402) 168.5 (76.4)
BGH96M080C4A 21 (533) 19.5 (495) 19-13/32 (493) 184.6 (83.7)
BGH96M100C5A 21 (533) 19.5 (495) 19-13/32 (493) 194.6 (88.3)
BGH96M100D5A 24.5 (622) 23 (584) 22-27/32 (580) 205.1 (93.0)
BGH96M120D5A 24.5 (622) 23 (584) 22-27/32 (580) 209.5 (95.0)
Table 1 Dimensions & Weight
