Bosch Climate 5000 Series Ducted Type (Medium & High Static) Air Conditioner / Heat Pump (11.2022)

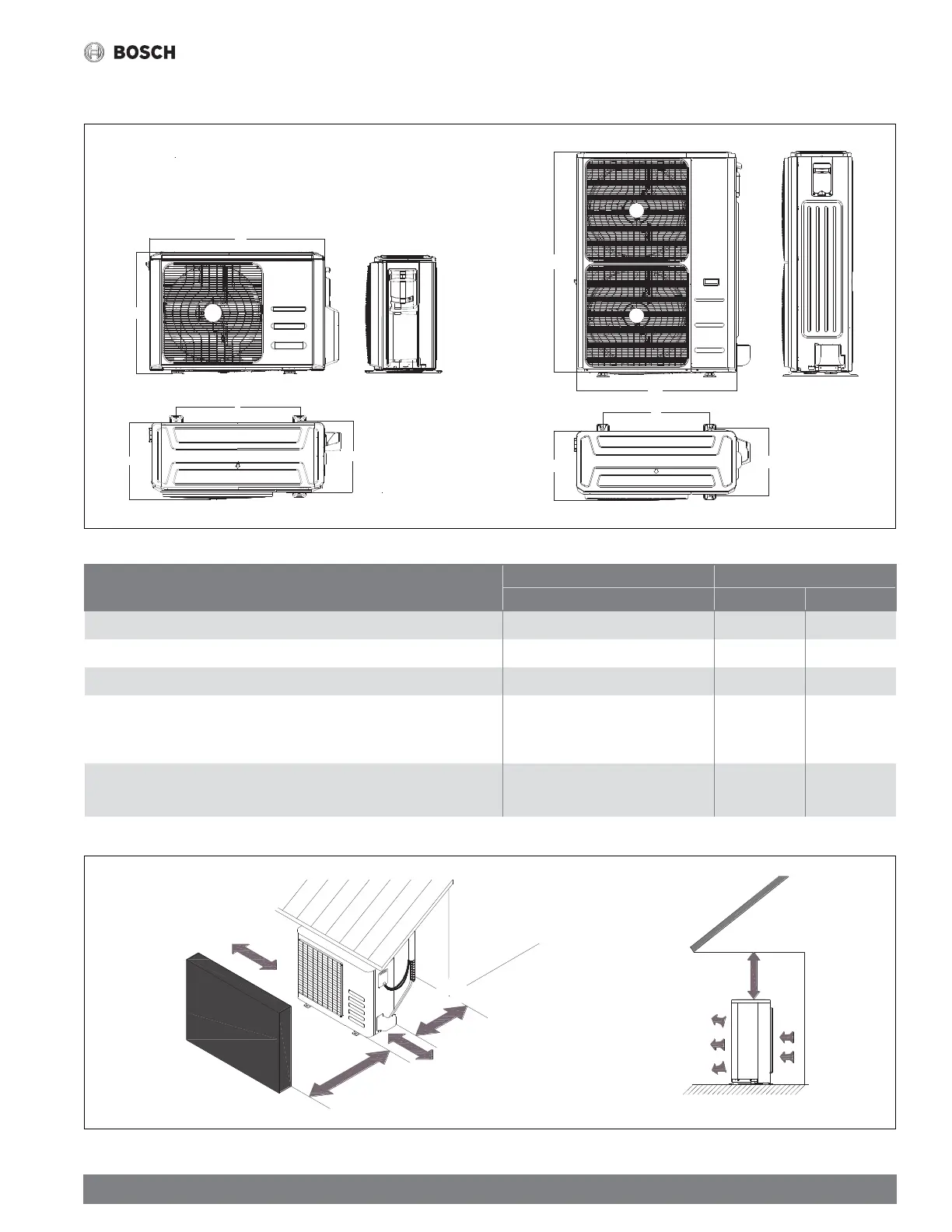

3.2 Outdoor Unit
Figure 3
H
W
A
B
D
A
B
D
A
W
H
Outdoor Model
Outdoor Unit Dimensions mm (in.) Mounting Dimensions
W x H x D A mm (in.) B mm (in.)
BMS500-AAS012-0CSXRC, BMS500-AAS009-1CSXRC, BMS500-AAS012-1CSXRC 765x555x303 (30.1”x 21.8”x 11.9”) 454 (17.8”) 286(11.3”)
BMS500-AAS009-1CSXHC, BMS500-AAS012-1CSXHC 805x554x330 (31.7”x 21.8”x 13.0”) 511 (20.1”) 317(12.5”)
BMS500-AAS018-1CSXRC, BMS500-AAS018-1CSXHC, BMS500-AAM018-1CSXRC 890x673x342 (35.0”x 26.5”x 13.5”) 663 (26.1”) 348 (13.7”)
BMS500-AAS030-1CSXRC, BMS500-AAS036-1CSXLC, BMS500-AAS036-1CSXRC,
BMS500-AAS024-1CSXRC, BMS500-AAS024-1CSXHC, BMS500-AAM027-1CSXRC,
BMS500-AAM036-1CSXRC, BMS500-AAM018-1CSXHC, BMS500-AAM027-1CSXHC
946x810x410 (37.2”x 31.9”x 16.1”) 673 (26.5”) 403 (15.9”)
BMS500-AAS060-1CSXLC, BMS500-AAS048-1CSXLC, BMS500-AAM048-1CSXRC,
BMS500-AAM036-1CSXHC, BMS500-AAM048-1CSXHC
952x1333x415 (37.5”x 52.5”x 16.34”) 634 (25.0“) 404 (15.9”)
Table 3
Figure 4
More than 60cm (23.6in)
More than 200cm (79in)
More than 30cm (11.8in)
More than 60cm (23.6in)
(Service space)
Fence or
o
bstacles
More than 30cm (11.8in)
Outdoor Unit Clearances
