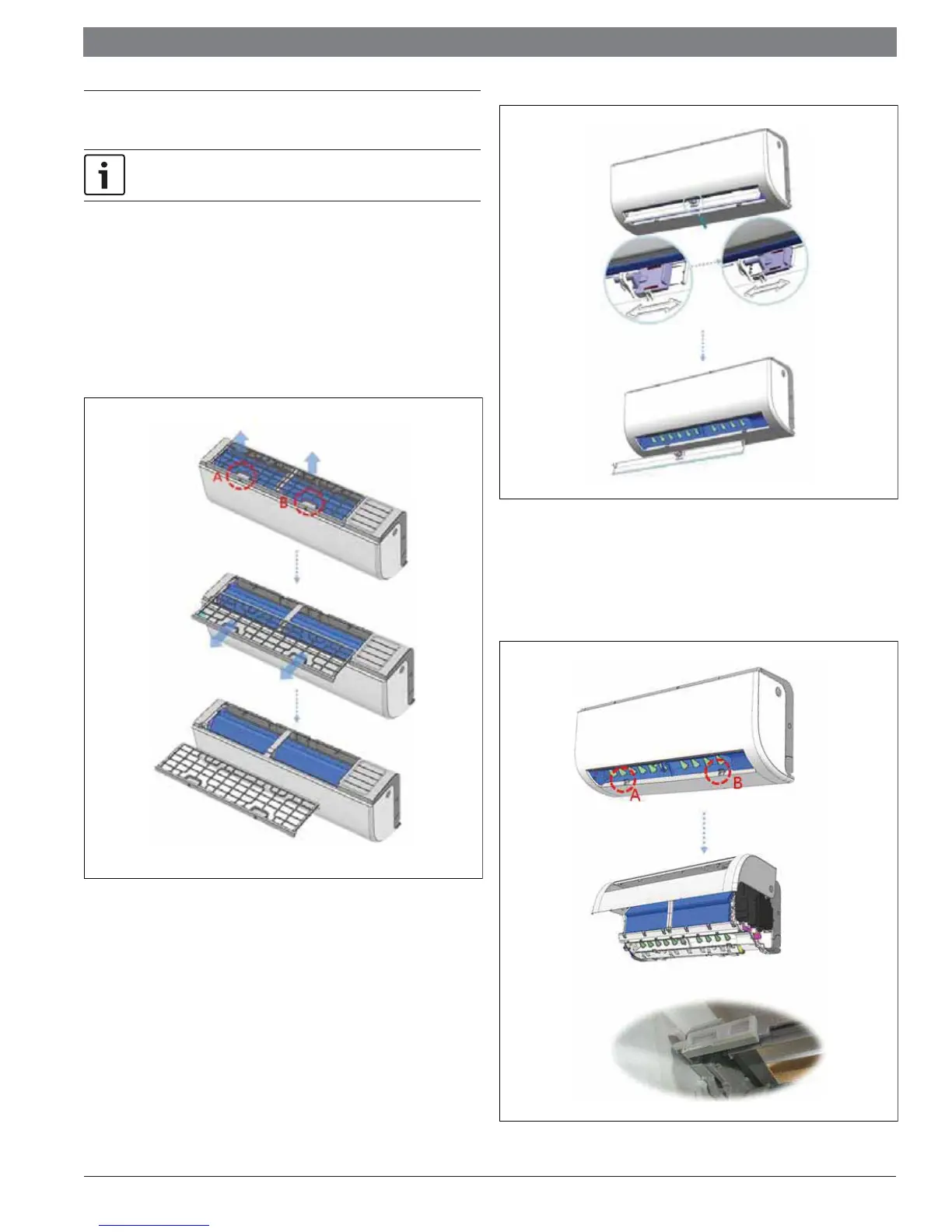

9 Disassembly Guide
This part is for reference, the photos may have slight diff erences with your
machine.
9.1 Indoor unit
9.1.1 How to Remove the À lter
f Step1: Put your hands at A and B (Fig. 62), lift the filter a little to loosen
the fastener
f Step2: Pull the filter gently along the horizontal direction.
f Step3: Pull out the filter.
Figure 44
9.1.2 How to Remove the horizontal louver (Fig. 63)
f Step1: Open the horizontal louver ,push the locker towards right to open
it.
f Step2: Bend the horizontal louver lightly, remove it from the indoor unit.
Figure 45
9.1.3 How to hold the indoor for piping connection
f Step1: Open the screw caps A and B (Fig. 64), remove the two screws.
f Step2: Open the panel assembly, move the slider to fix the panel.
Figure 46
