Bosch BPC3400 - Removing the PowerTube Battery (pivot); Inserting the PowerTube Battery (pivot)

English – 18
Removing the PowerTube Battery (pivot)
2
1
(2)
(8)
(4)
(1)
❶

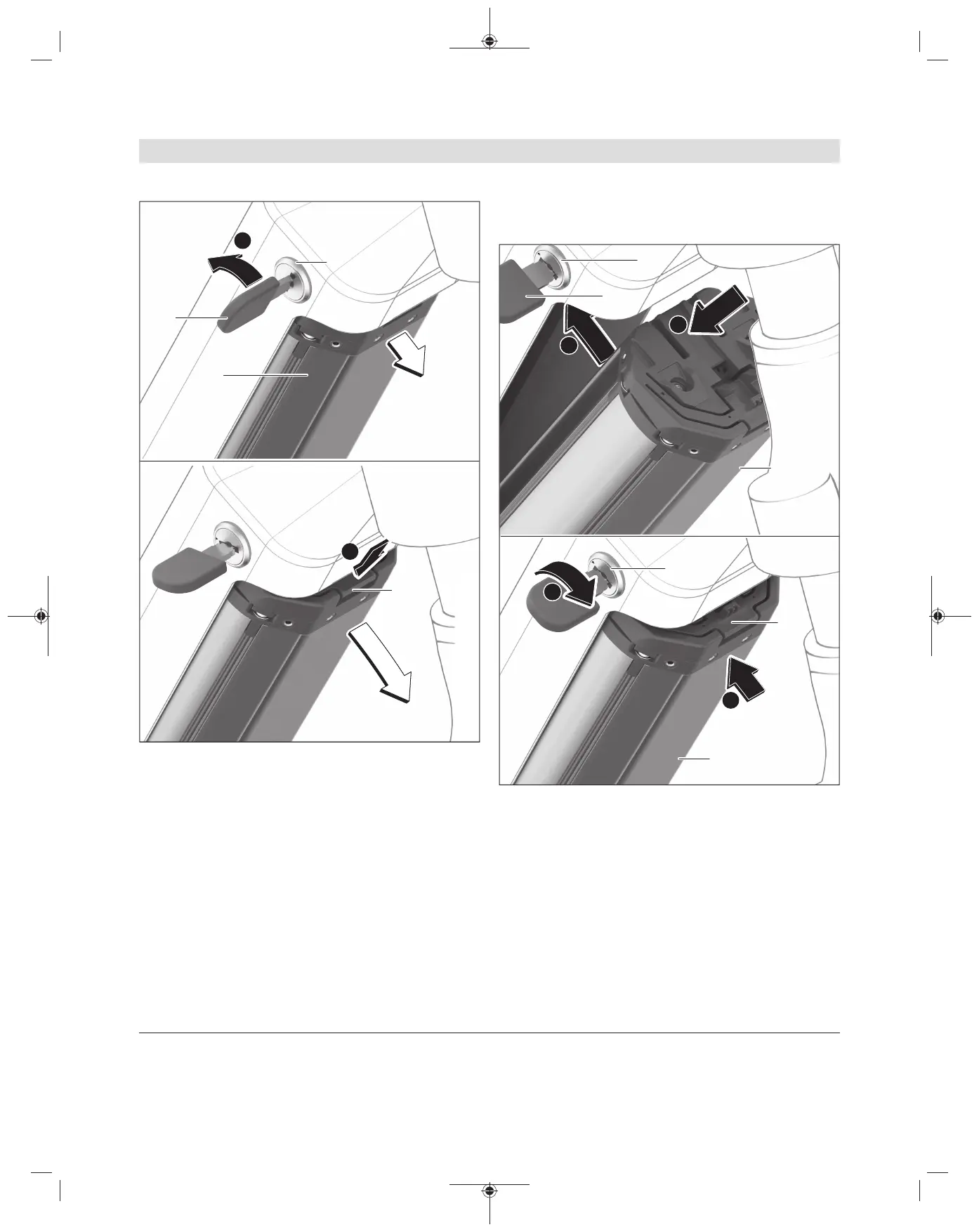

To remove the PowerTube battery(4), open the
battery lock(2) using the key(1). The battery
will be unlocked and fall into the safety re-
straint(8).
Note: When removing the eBike battery, hold it firmly
in your hand.
❷ Hold the battery firmly and press on the safety
restraint(8) from above. The battery will be un-
locked completely and fall into your hand. Then
pull the battery out of the frame.
Note: As a result of varying designs, the battery may
need to be inserted and removed using a different
method. Read the eBike manufacturer's operating in-
structions.
Inserting the PowerTube Battery (pivot)
4
3
1
2
(1)
(2)
(8)
(4)
(4)
(2)
In order for the battery to be inserted, the key(1)
must be inserted into the battery lock(2) and the bat-
tery lock must be open.
❶
To insert the PowerTube battery (4), place it so
that its contacts are in the lower holder of the
frame.
❷ Twist the battery upwards until it is held by the
safety restraint (8).
❸ Hold the battery lock open with the key and
press the battery upwards until you hear it click
into place.
0 275 U07 3PX | (20.03.2023) Bosch eBike Systems
