Operation
6.3.4.3 Adjusting the grip distance on a
Magura brake lever
Only applies to pedelecs with this equipment
Use a T25 TORX® wrench to turn the setting
screw to adjust the grip distance.
Turn the setting screw in the minus (–) direction.
The brake lever moves closer to the handlebar
grip.
Turn the setting screw in the plus (+) direction.
The brake lever moves away from the
handlebar grip.

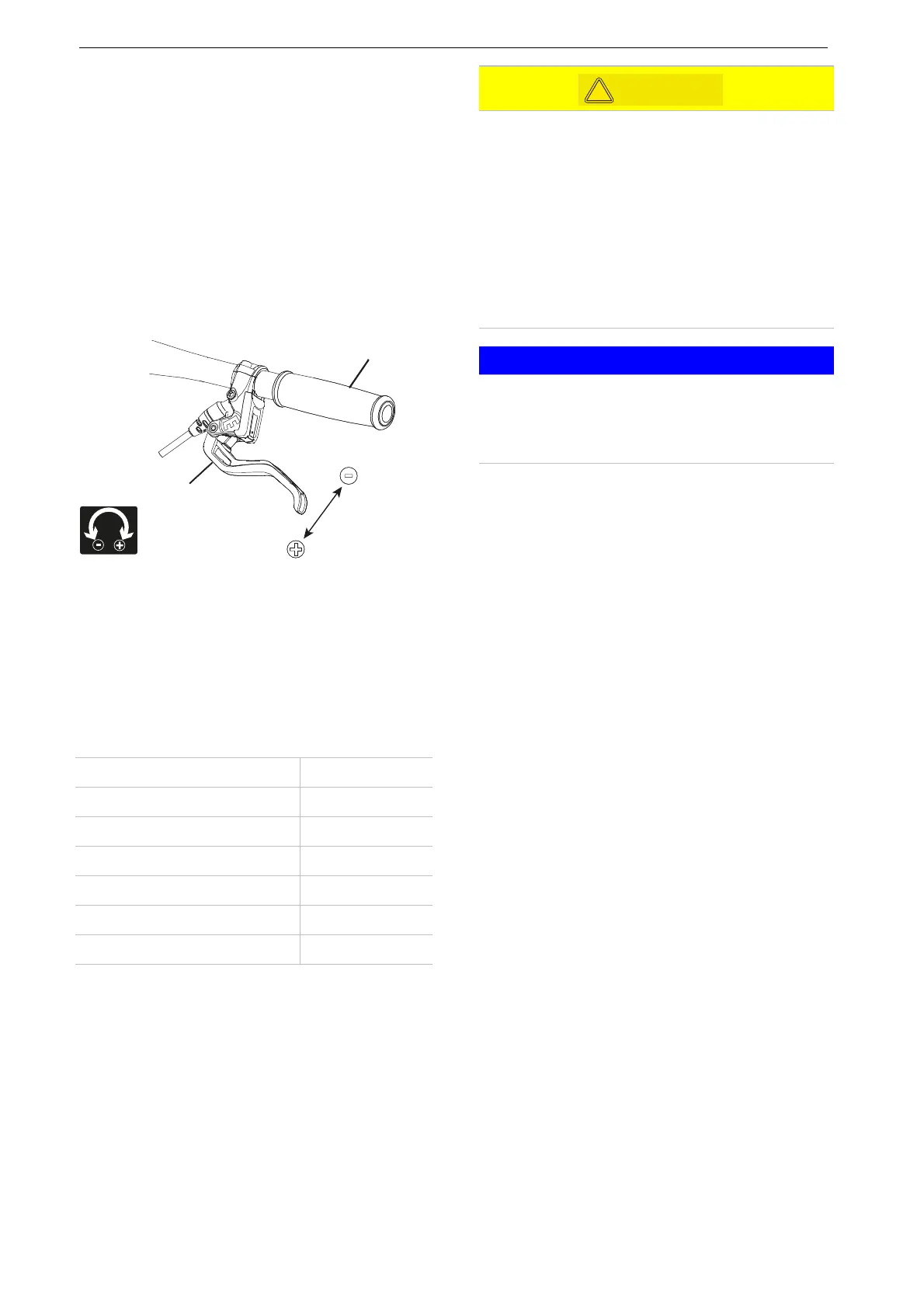

Figure 55: Using the setting screw (2) to adjust the
distance from the brake lever to the handlebar grip (1)
6.3.5 Adjusting the suspension of the
Suntour fork
Only applies to pedelecs with this equipment
The following Suntour forks can be installed in this
series of models:
The adjustment shown here represents a basic
setting. The rider should change the basic setting
to suit the surface and his/her preferences.
It is advisable to make a note of the basic
setting. This way, it can be used as the starting
point for subsequent, optimised settings and to
safeguard against unintentional changes.
6.3.5.1 Adjusting the negative deflection
Negative deflection (sag) is compression of the
fork caused by the weight of the rider and their
gear (e.g. a backpack), the sitting position and the
frame geometry. This sag is not caused by riding.
Each rider has a different weight and sitting
position. The sag depends on the rider's position
and weight and should be between 15% and 30%
of the maximum fork deflection, depending on
pedelec usage and preferences.
Aion-35 Boost Air suspension fork
NCX Air suspension fork
NEX Steel suspension fork
XCM-ATB Steel suspension fork
XCM Steel suspension fork
XCR32 Air suspension fork
XCR34 Air suspension fork
Figure 56: Overview of Suntour forks
Crash caused by incorrectly set suspension
If the suspension is adjusted incorrectly, the fork
may become damaged, so that problems may
occur when steering. This will cause a crash with
injuries.
Never ride the pedelec without air in the air
suspension fork.
Never use the pedelec without adjusting the
suspension fork to the rider's weight.
Notice
Settings on the chassis change riding
performance significantly. You need to get used
to the pedelec and break it in to prevent
accidents.
