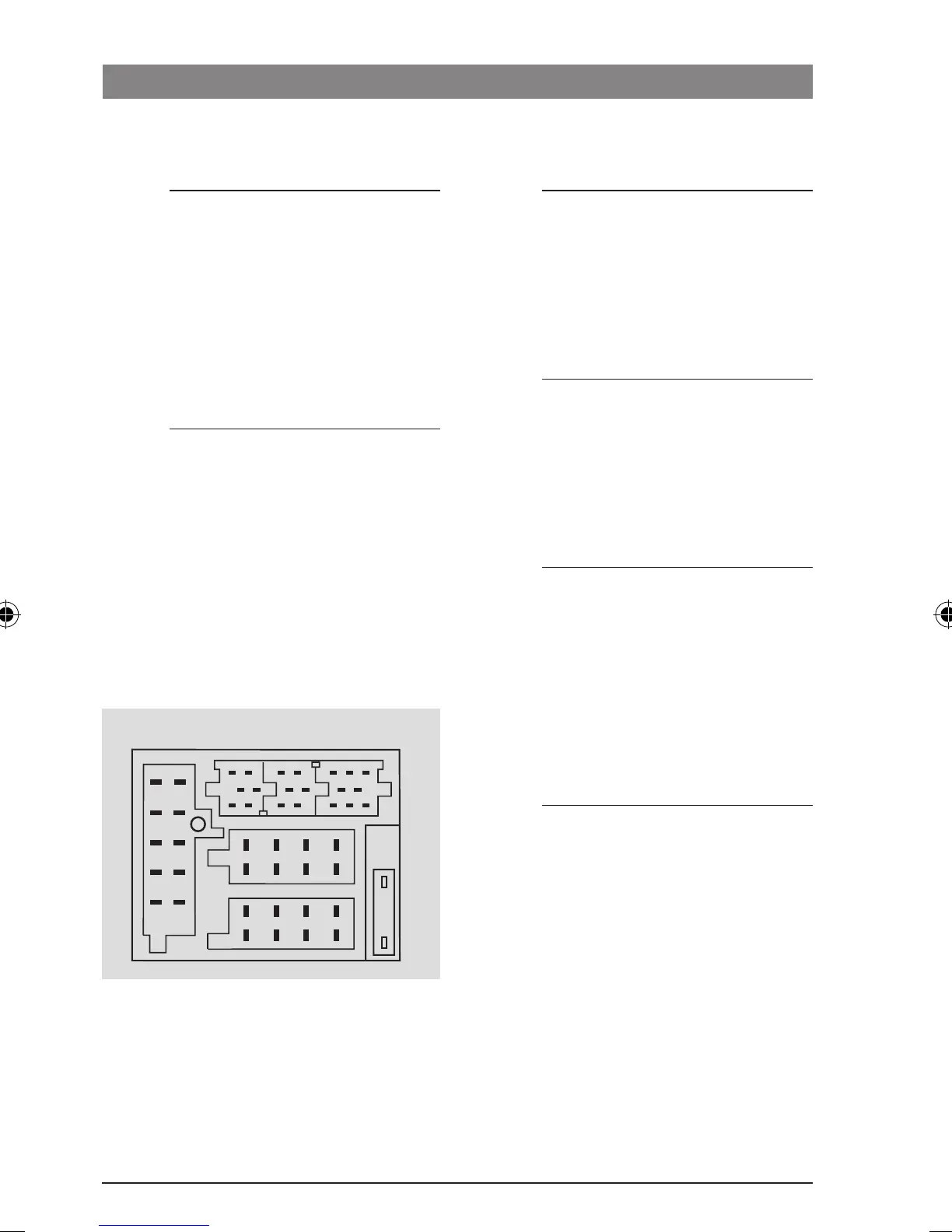

Bosch CAD 12 - ISO Connector

445
7 620 210 015/020-022 | 05.2015Robert Bosch Car Multimedia GmbH
ISO connector
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
1 4 7 10 13 16 19
3
6
9
12
15
18
2
5 8
11
14
17
20
C-1 C-2 C-3
2
D
1
3
4
5
6
7
8
9
10
A POWER SUPPLY CONNECTOR
1 –
2 –
3 –
4 IGNITION
5 12V REMOTE ON
6 ILLUMINATION
7 BATTERY
8 GROUND
B SPEAKER CONNECTOR
1 –
2 –
3 SPEAKER RIGHT FRONT (+)
4 SPEAKER RIGHT FRONT (–)
5 SPEAKER LEFT FRONT (+)
6 SPEAKER LEFT FRONT (–)
7 –
8 –
C1 LINE OUT CONNECTOR
1 LINE OUT LEFT
2 LINE OUT RIGHT
3 LINE OUT GND
4 CAM SW
5 –
6 12V REMOTE ON
C2 –
7 –
8 –
9 –
10 –
11 –
12 –
C3 AUX1 CONNECTOR
13 –
14 –
15 PWR
16 12V REMOTE ON
17 GND
18 AUX1 AF GND
19 AUX1 AF LEFT
20 AUX1 AF RIGHT
D VIDEO/IR CONNECTOR
1 VIDEO IN
2 VIDEO IN GND
3 –
4 –
5 VIDEO OUT
6 VIDEO OUT GND
7 IR DATA
8 IR GND
9 –
10 IR VCC
