Bosch DAF Radio Basic - ISO Connector

223
7 620 000 111/ 7 620 002 112 | 12.2019Robert Bosch Car Multimedia GmbH
223

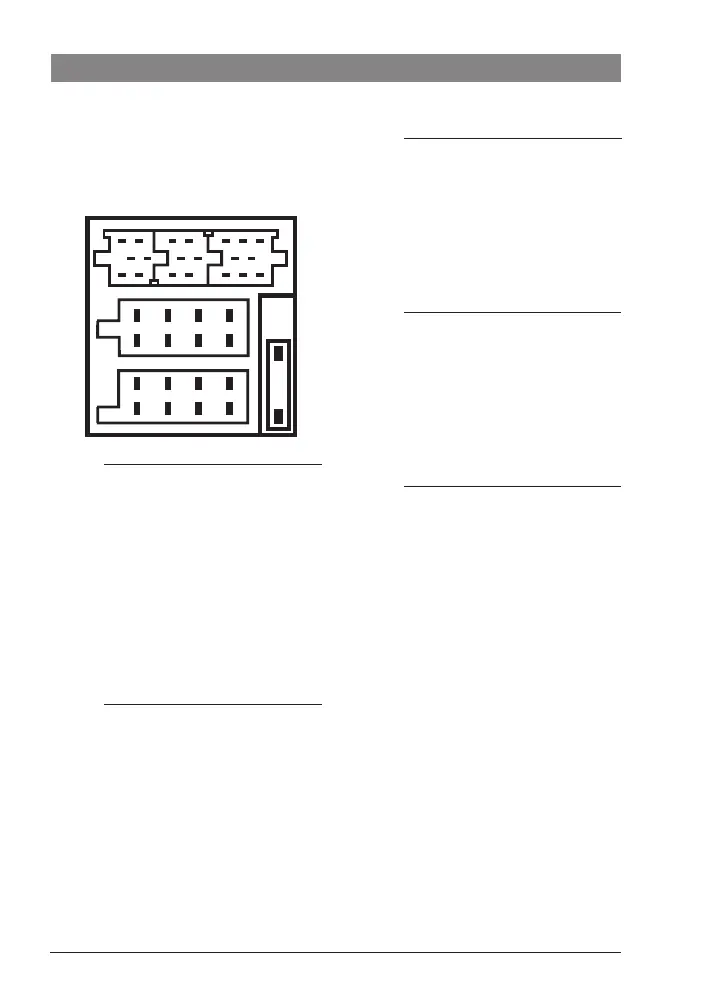

ISO Connector
DAF RADIO BASIC
ISO connector
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
14
7
10 13
16
19
3
6
9
12
15
18
2
58
11
14 17
20
C-1C-2 C-3
C2 PHONE CONNECTOR
7 Phone AF-IN
8 PHONE -GND
9 PHONE -MUTE ( REMOTE)
10 –
11 –
12 –
A POWER SUPPLY CONNECTOR
1 –
2 –
3 –
4 Ignition (+24 V -IN)
5 REMOTE-ON (+12 V, ANTENNA - ON)
6 Illumination
7 Battery (+24 V -IN)
8 GROUND/MİNUS
C1 NO CONNECTION
1 –
2 –
3 –
4 –
5 –
6 –
B SPEAKER CONNECTOR
1 –
2 –
3 SPEAKER FRONT -RİGHT (+)
4 SPEAKER FRONT -RİGHT (-)
5 SPEAKER FRONT -LEFT (+)
6 SPEAKER FRONT -LEFT (-)
7 –
8 –
C3 AUX connector
13 –
14 –
15 –
16 –
17 –
18 Aux AF - GND
19 Aux AF-IN left
20 Aux AF-IN right
