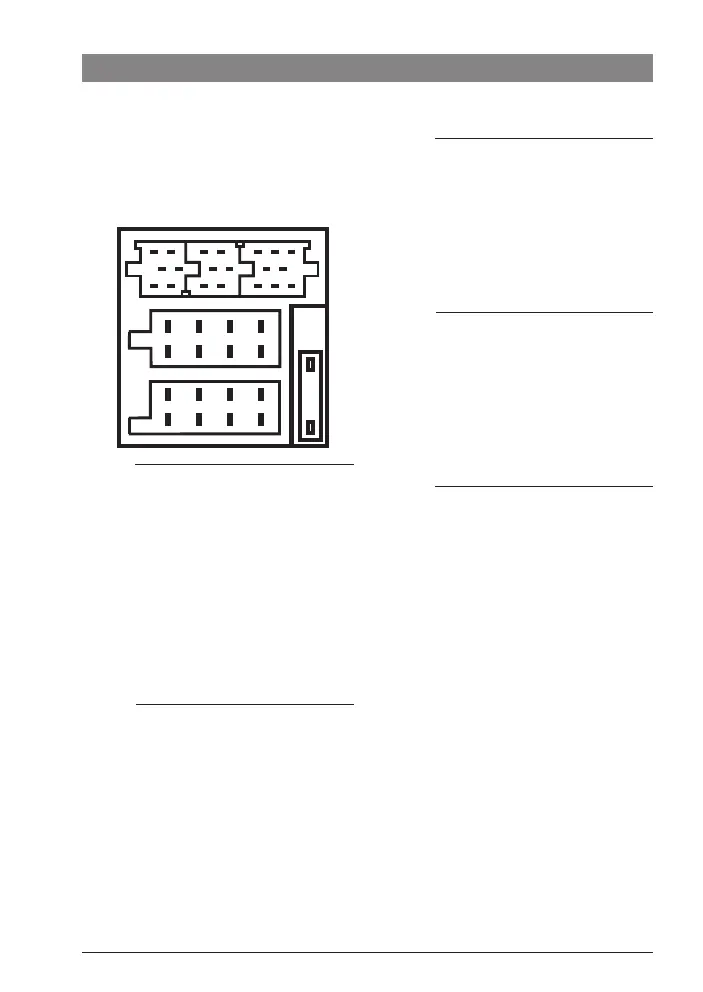

ISO connector
C2 Phone connector
7 Phone AF-IN
8 Phone -GND
9 Phone -MUTE ( Remote)
10 –
11 –
12 –
A Power supply connector
1 –
2 –
3 –
4 Ignition (+24 V -IN)
5 REMOTE-ON (+12 V, ANTENNA - ON)
6 Illumination
7 Battery (+24 V -IN)
8 Ground/Minus
C1 PREAMP CONNECT0R
1 PREAMP OUT -LEFT
2 PREAMP OUT -RIGHT
3 PREAMP OUT -GND
4 –
5 –
6 REMOTE -ON (+12V, AMP -ON)
B Speaker connector
1 –
2 –
3 Speaker FRONT -right (+)
4 Speaker FRONT -right (-)
5 Speaker FRONT -left (+)
6 Speaker FRONT -left (-)
7 –
8 –
ISO Connector
DAF RADIO LUXURY
C3 AUX connector
13 –
14 –
15 –
16 –
17 AUX GROUND INTERFACE
18 Aux AF - GND
19 Aux AF-IN left
20 Aux AF-IN right
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
14
7
10 13
16
19
3
6
9
12
15
18
2
58
11
14 17
20
C-1C-2 C-3
