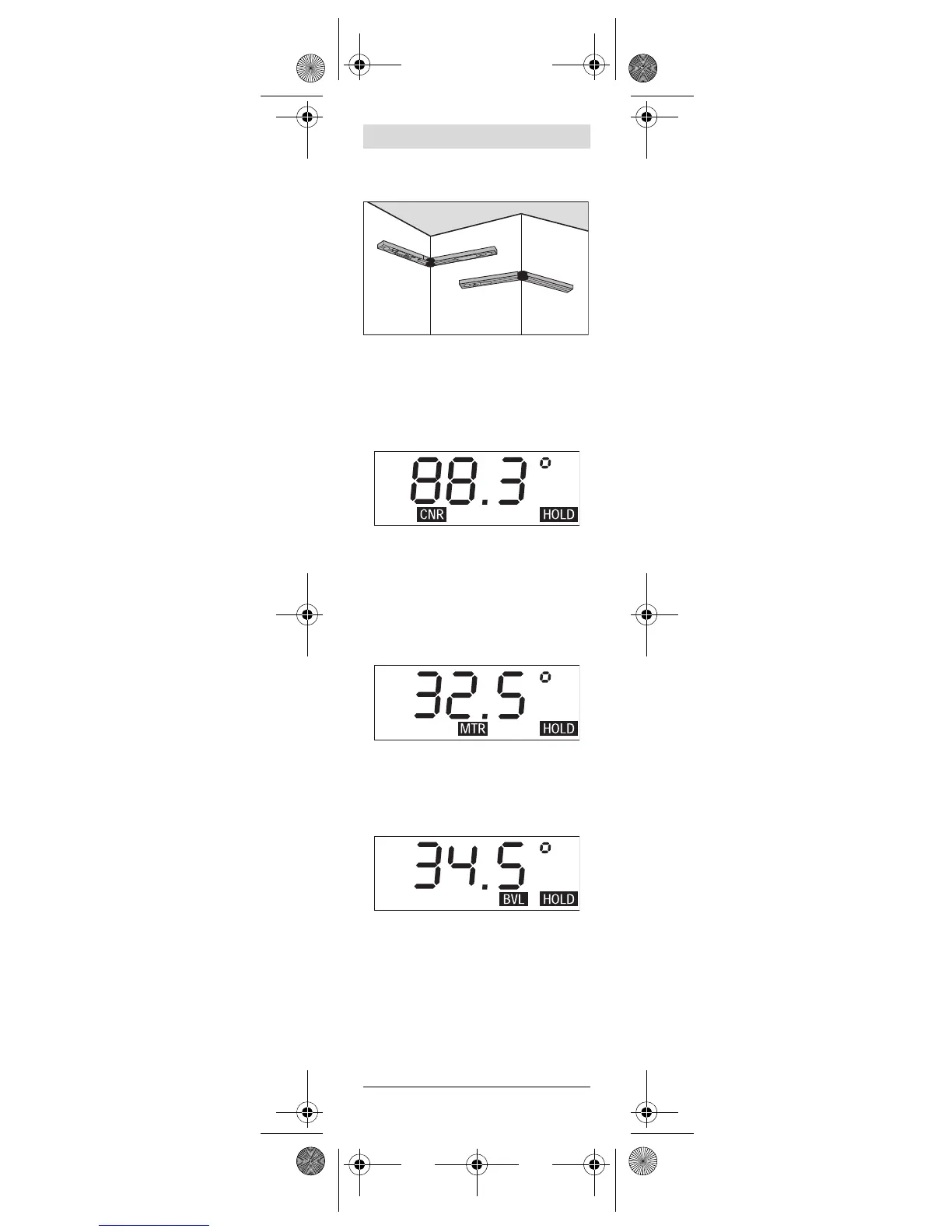

2) Measure the Corner Angle
– Place the legs flat on the walls.
– Store the corner angle by again
pressing the COMPOUND MTR
button.
– The entry is confirmed by the ap-
pearance of “CNR” in the display.
3) Determine the Miter Angle &
Bevel Angles
– Press the COMPOUND MTR
button again to display the nec-
essary miter angle
– “MTR” appears in the display.
– Press the COMPOUND MTR
button again to display the nec-
essary bevel angle.
– “BVL” appears in the display.
– If necessary, the miter angle can
be retrieved by pressing the
COMPOUND MTR button again.
