Installation

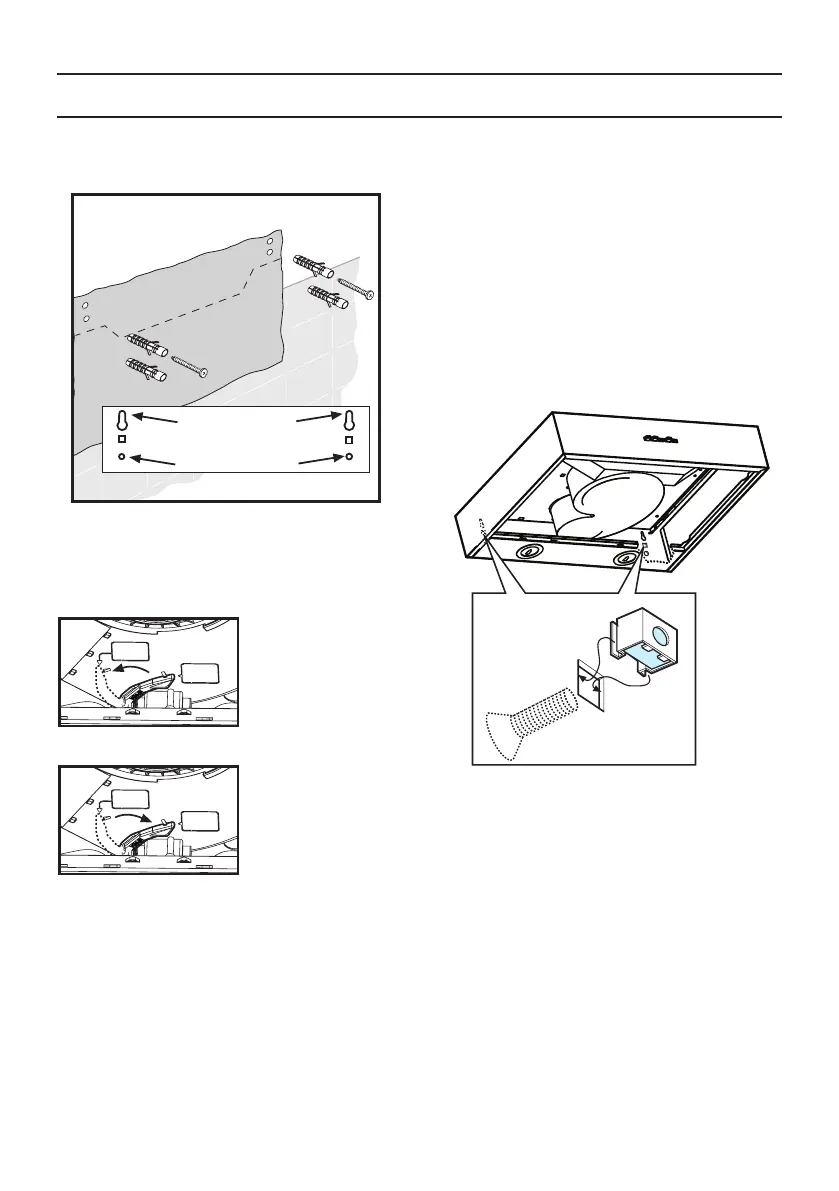

To the wall
With 4 screws.
1. Mark mounting boreholes.
Dimensions can be found in or use
template.
Selecting the operating mode:
■ Exhaust-air mode: Position A
■ Circulating-air mode: Position F
2. Drill 8 mm dia. holes and insert wall
plugs ush with the wall.
3. Screw in the upper screws (on left and
right) until there is a gap of approx.
7 mm between the screw head and the
wall.
■ Remove the grease lters (see Instruc-
tions for use).
In circulating-air mode, apply the plug sup-
plied to close the exhaust hole.
4. Secure the nuts inside the box of the
hood on the square slots and screw in,
from outside, the metric screws supplied
to their maximum.
