2. Mark the mounting holes and make pilot
holes with a bradawl.
In exhaust-air mode (upwards) mark the
exhaust-air opening and saw out.
In circulating-air
mode, apply the
plug supplied to
close the exhaust
hole.
■ Consider the location of the connection
cable; if required, saw out the cupboard.
3. Remove the lter grille (see Instructions
for use).
4. Screw the extractor hood to the base of
the cupboard.
Installation
WARNING! Do not connect the appliance to the mains until the installation is fully complete.
Important, in circulating-air mode, rst rotate the conversion valve to ltering position (posi-
tion F) and then x the air outlet hole cap, otherwise the conversion valve might jam.
To a wall-hanging cupboard
With 4 screws.

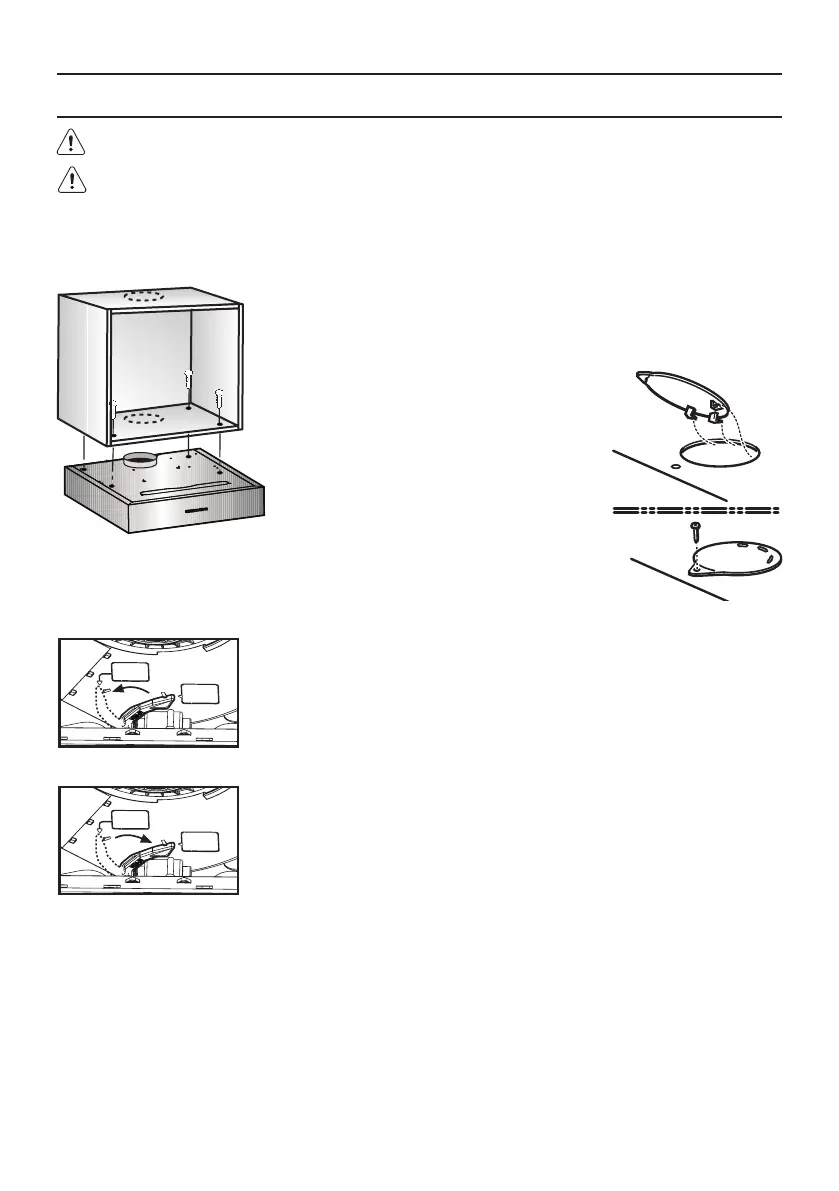

1. Dimensions for the mounting boreholes
can be found in, or place a template on
the base of the wallhanging cupboard.
Selecting the operating mode:
■ Exhaust-air mode: Position A
■ Circulating-air mode: Position F
