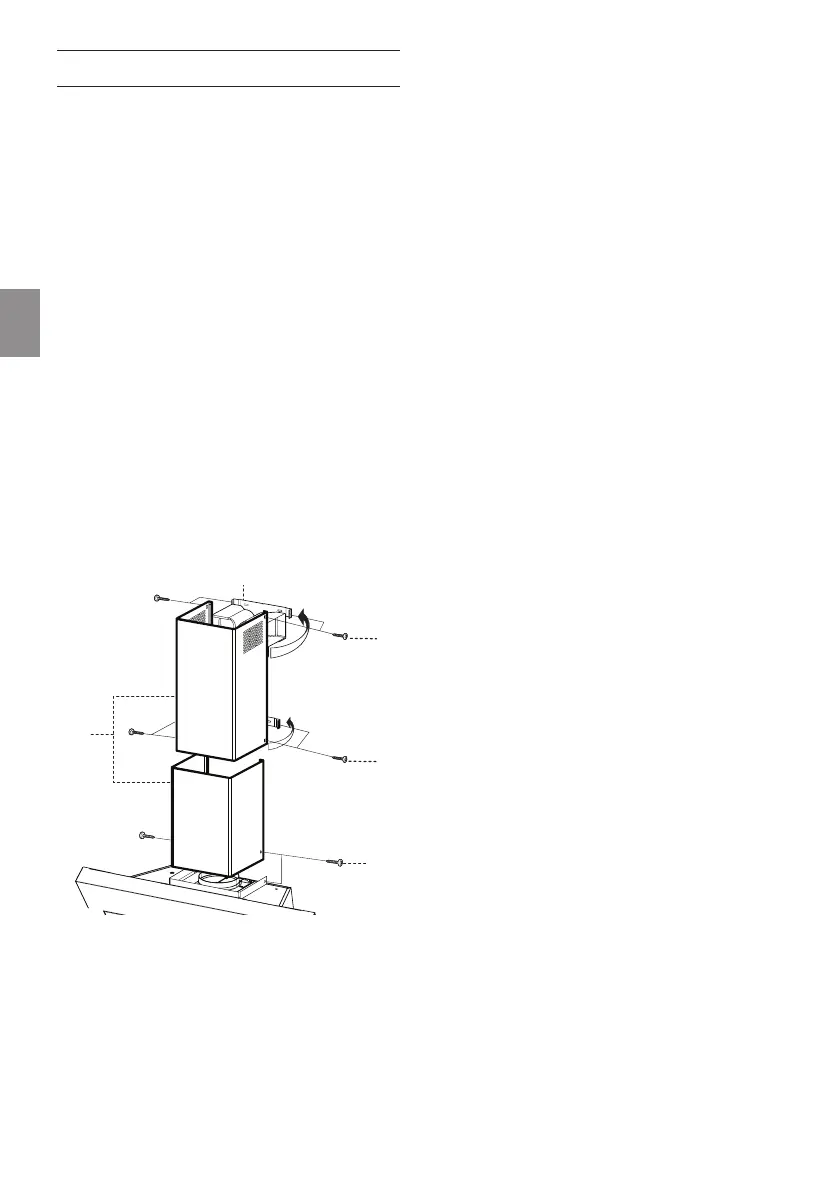

Chimney assembly
Upper Chimney
qSlightly widen the two sides of the upper Chim-
ney and hook them behind the brackets 7.2.1,
making sure that they are well seated.
qSecure the sides to the brackets using the 4
screws 12c supplied.
qMake sure that the outlet of the extensions
pieces is aligned with the chimney outlets.
Lower Chimney
qSlightly widen the two sides of the Chimney
and hook them between the upper Chimney
and the wall, making sure that they are well
seated.
qFix the lower part laterally to the hood body us-
ing the 2 screws 12c supplied.
Installation
