Bosch Evolution 500 - Component Group 2

6 720 680 223
52
Interior components diagram and parts list
12.2.2 Group 2

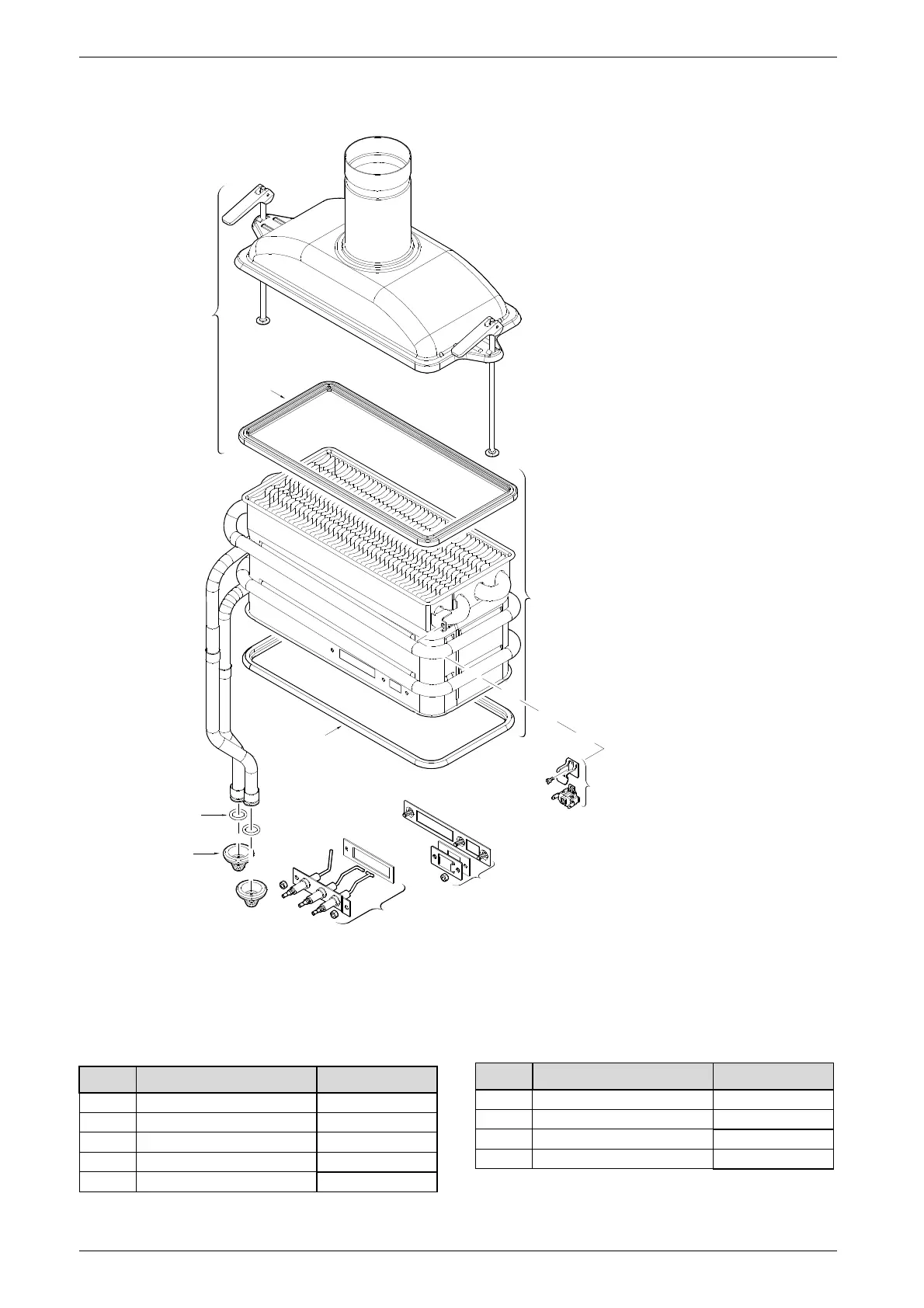

Fig. 67 Components Diagram
1
3
2
4
5
6
7
8
9
6720902974.AA JF
Item Description Reference
1 Heat exchanger 8 705 406 422
2 Heat exchanger top gasket 8 704 701 052
3 Flue gas collector 8 705 700 153
4 Overheat sensor (ECO) 8 707 206 204
5 Heat exchanger bottom gasket 8 704 701 054
Table 22
6 Site window 8 701 000 401
7 Ignition group 8 701 302 249
8 Heat exchanger O-ring 8 700 205 147
9 Rubber grommet 8 710 303 027
