Bosch Evolution 500 - Component Group 6

6 720 680 223
56
Interior components diagram and parts list
12.2.6 Group 6

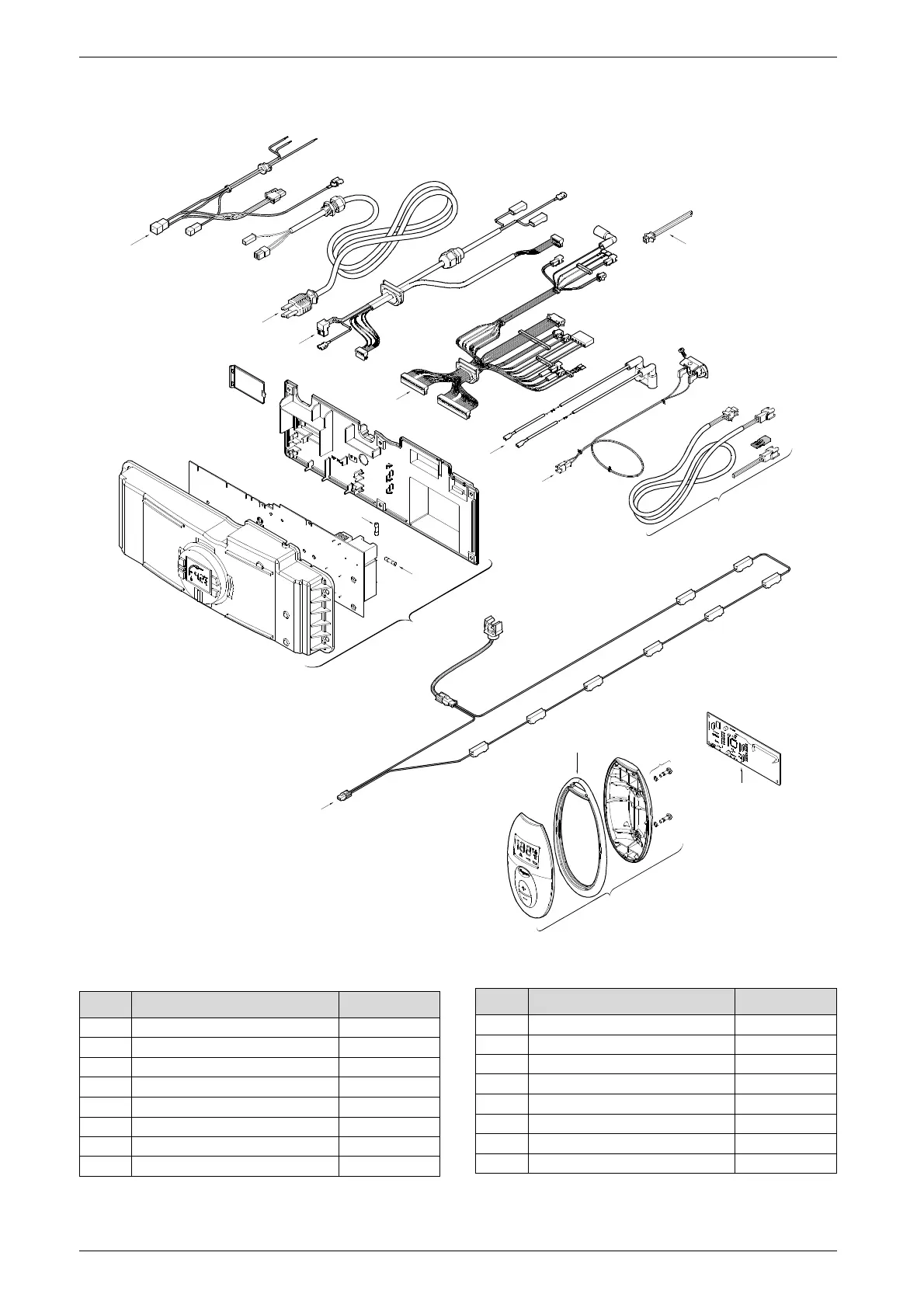

Fig. 71 Components Diagram
15
1
2
3
7
6
9
5
11
13
16
14
10
12
8
4
6720902978.AA JF
Item Description Reference
1 Control unit 8 707 207 257
2 Fuse T2.5A 1 904 521 342
3 Fuse T1.6A 8 700 609 008
4 Power supply cables 8 704 401 371
5 Power supply cord 8 704 401 378
6 Fan cables 8 704 401 347
7 Wire harness 8 704 401 348
8 Jumper 8 704 401 376
Table 26
9 Electrode cables 8 704 401 346
10 Flue gas limiter 8 700 400 032
11 Cascading kit (optional) 7 709 003 617
12 Freeze prevention kit 7 709 003 665
13 Remote control (optional) 8 707 207 153
14 Shaped seal (optional) 8 700 201 012
15 Screw (optional) 8 703 401 109
16 Printed circuit transceiver (optional) 8 708 300 123
Item Description Reference
Table 26
