Information about the appliance | 7
6 720 810 590 (2015/05)
Greenstar FS

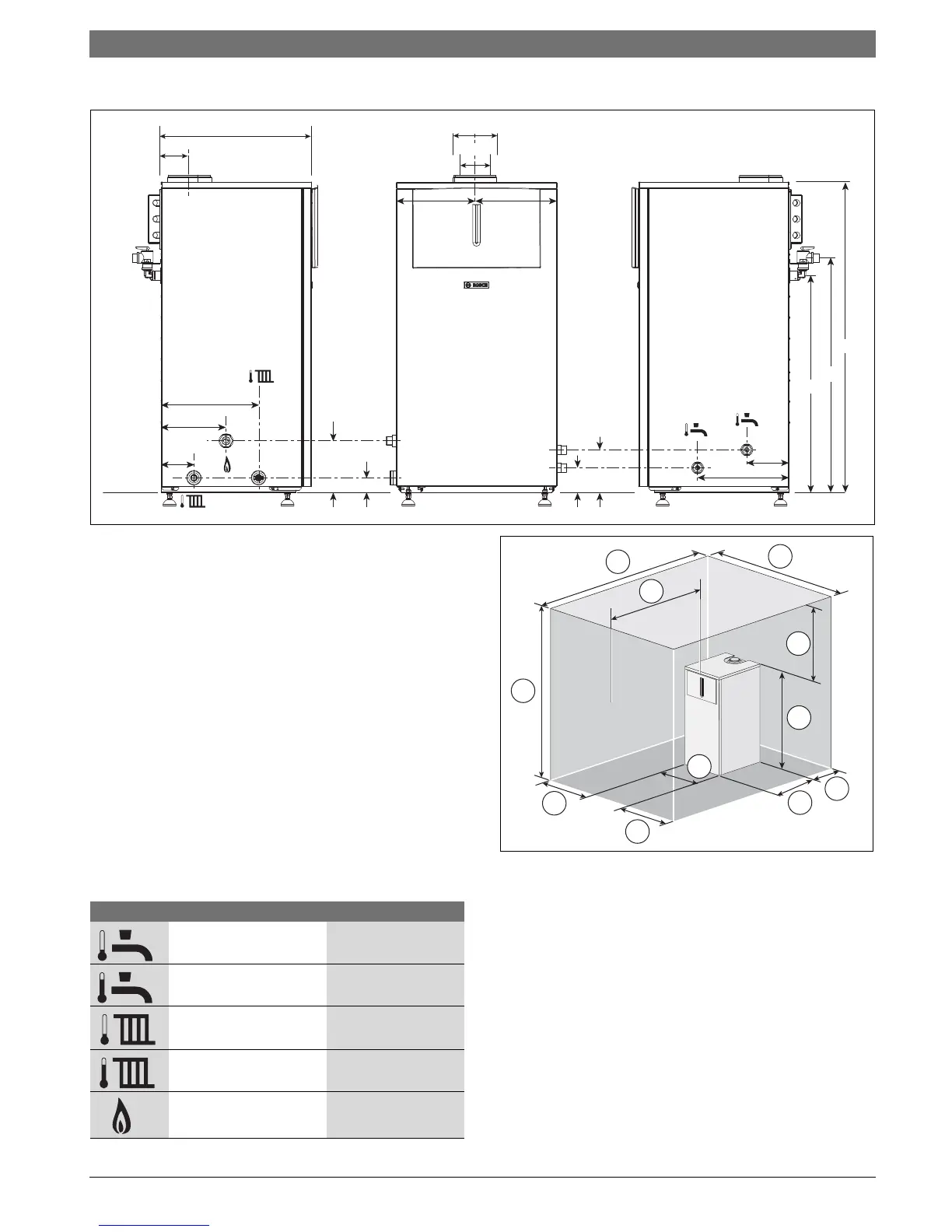

3.6 Product dimensions and minimum clearances
Fig. 4
[M1] 18
3/
8
” - (467mm)
[M2] 3
1/
2
” - (88mm)
[M3] 9
5/
8
” - (243.5mm)
[M4] 10” - (253.5mm)
[M5] 39
1/
2
” - (1003mm)
[M6] 11
7/
8
” - (301.5mm)
[M7] 7
7/
8
” - (200mm)
[M8] 4” - (101mm)
[M9] 8
3/
16
” - (207.3mm)
[M10] 3
7/
16
” - (86.7mm)
[M11] 6
13/
16” - (173.3mm)
[M12] 4
5/
8
” - (117.6mm)
[M13] 11
3/
16
” - (283mm)
[M14] 5
1/
8
” - (131mm)
[M15] 28
1/
16
” - (713.5mm)
[M16] 31” - (788mm)
[Ø 1] 3
1/
8
” - (80mm)
[Ø 2] 4
15/
16
” - (125mm)
Fig. 5 Dimensions and minimum clearances (front, rear, & side view)
[1] 45
3/
4” - (1163mm)
[2] 41
15/
16” - (1065mm)
[3] 27
9/
16” - (700mm)
[4] **24
” - (600mm)
[5] 7
7/
8
” - (200mm)
[6] ≥ 2
3/
4” - (70mm)
[7] *4”
- (102mm)
[8] *4”
- (102mm)
[9] 41” - (1042mm)
[10] 18
3/
8
” - (467mm)
[11] 19
9/
16
” - (497mm)
(*) Zero clearance from combustibles permitted, but 4" (102 mm) recommended for
serviceability
(**) 1” (25mm) Distance to door, if mounted inside a closet with 24” (600mm) in front
of boiler for serviceability
M2
M1
M3 M4
M6
M8
M7
M9
M10
M11
M12
M14
M13
Ø1
Ø2
M15
M16
M5
6720810590-36.1Wo
Symbol Description Connection size
Domestic water inlet ¾ ” - (19mm)
Domestic hot water outlet ¾ ” - (19mm)
Heating return 1¼ ” - (31.8mm)
Heating supply 1¼ ” - (31.8mm)
Gas inlet ¾ ” - (19mm)
6720810590-08.1Wo
1
2
3
6
4
5
7
8
9
10
11
