25. Attach the bottom fridge compartment door.

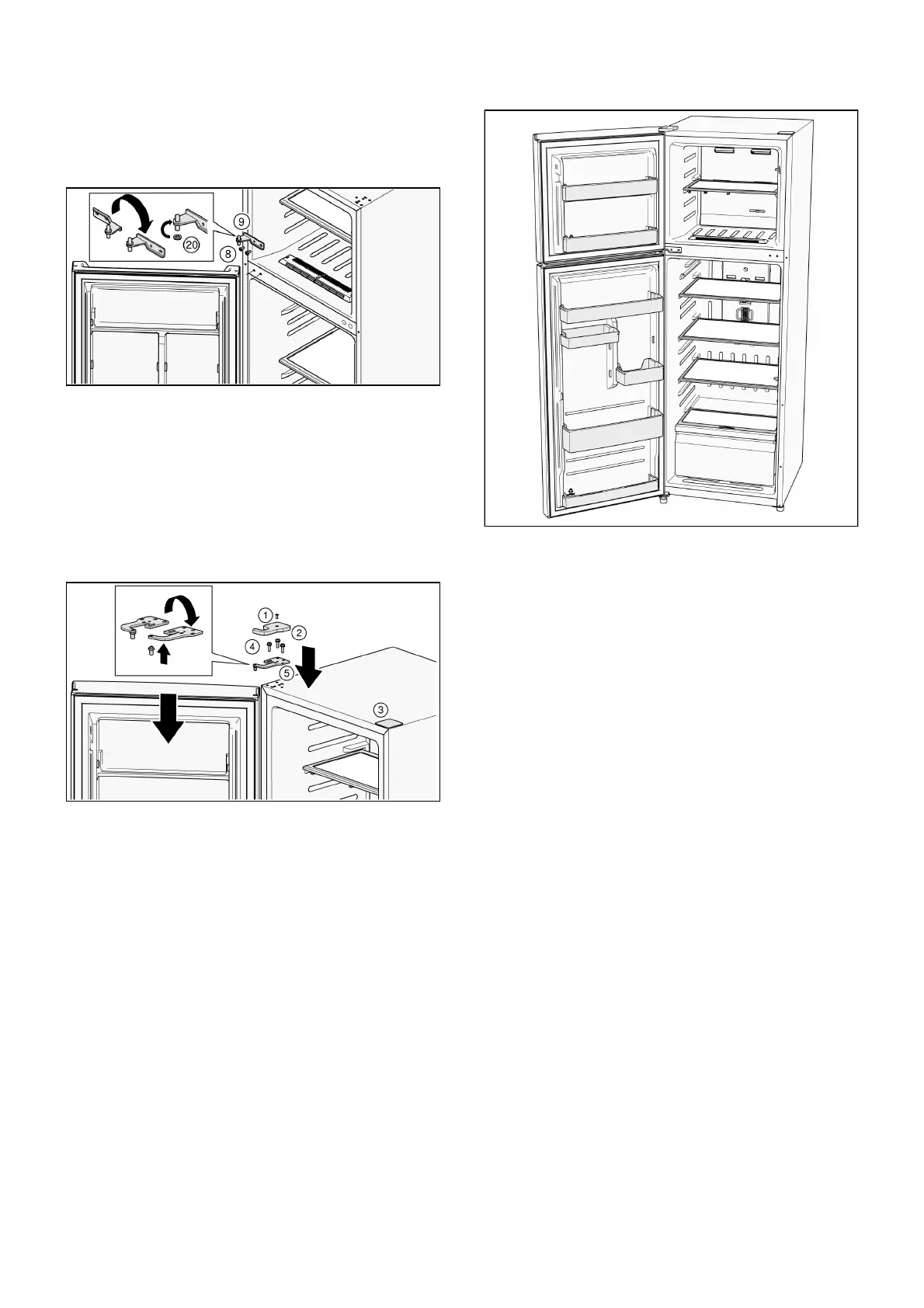

26. Rotate the middle hinge (9) through 180° and put
the disk (20) on the other side of the bolt.
27. Insert middle hinge (9) and apply 2 screws (8) and
tighten.
28. Unscrew bolts, rotate top hinge (5) through 180°
and screw in bolt on the other side and tighten.
29. Attach freezer compartment door to the middle
hinge (8).
30. Insert top hinge (5) and apply 3 screws (4) and
tighten.
31. Insert hinge cover (2).
32. Apply and tighten screw (1).
33. Insert cover (3) into the borings.
34. Open appliance doors and attach all door pockets.

Bosch KDN series Specifications

General

Category	Refrigerator
Capacity	Varies by model
Number of Doors	2
Shelves Material	Glass
Adjustable Thermostat	Yes
Model Series	KDN series
