10 en | Installation LC1 Modular Ceiling Loudspeaker Range
F.01U.076.021 | V1.0 | 2012.04 Product Information & Installation Manual Bosch Security Systems B.V.

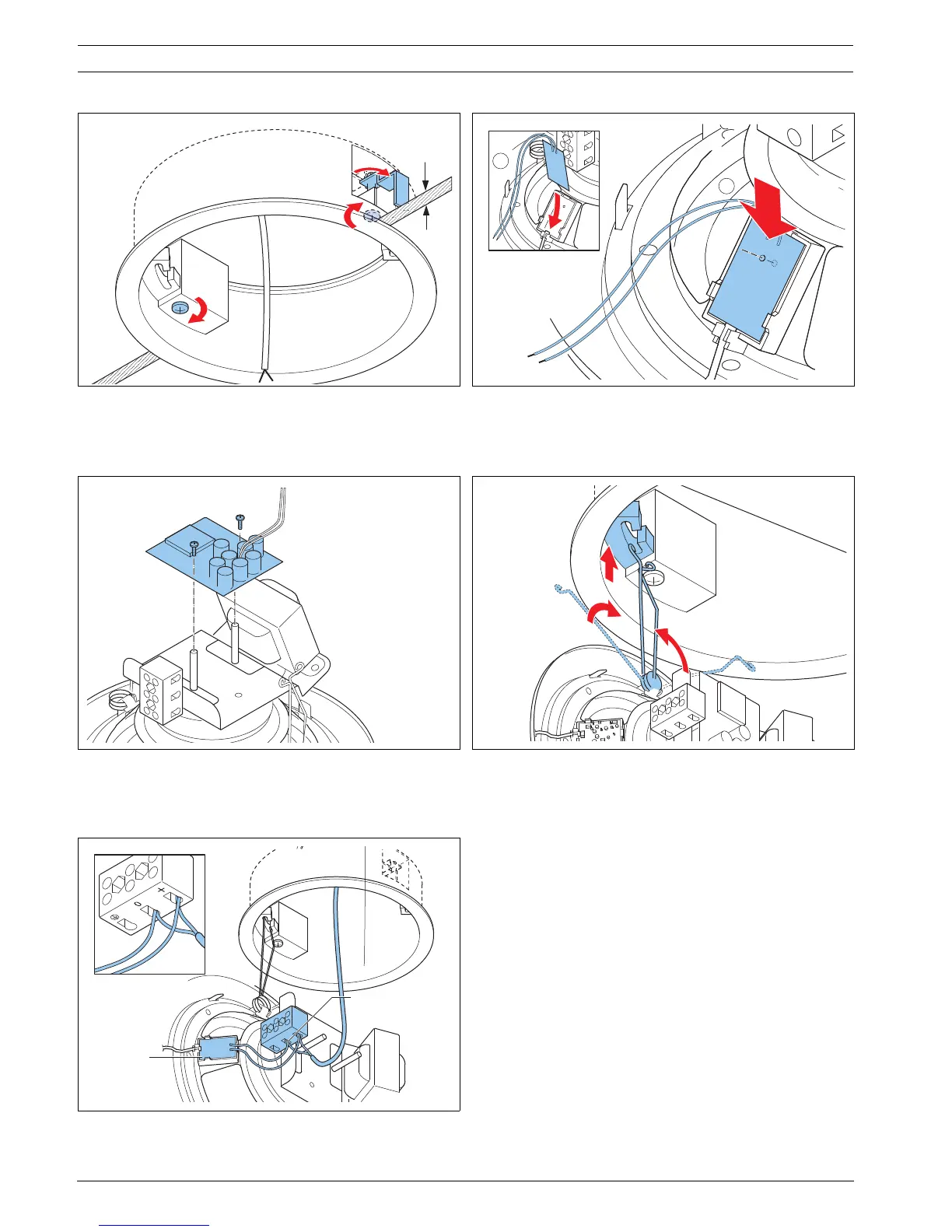

Fig. 7 Fig. 8
Optional
Pilot tone indication board: LC1-PIB
Notice! Push until you hear a click.
Fig. 9 Fig. 10
Optional
Line/Loudspeaker supervision boards:
LBB 4441/00, LBB 4442/00, LBB 4443/00
Fig. 11
Max.
Max.
25 mm
25 mm
(0.98 in)
(0.98 in)
2
1
LC1-PIB
LC1-PIB
MIN / MAX
MIN / MAX
0.5 mm² / 3 mm²
0.5 mm² / 3 mm²
AWG 20 / AWG 13
AWG 20 / AWG 13
