Prepare Installation Space
Create the cut-out in the countertop according to the
installation diagram. The angle of the cut surface to the
countertop must be 90°.
The lateral cut-out edges must be flat in order to ensure
that the retaining springs are well-positioned on the
appliance. With multi-layered countertops, secure strips
laterally in the cut-out if necessary.
After creating cut-out, remove shavings. Seal cut
surfaces in a heat- and water-resistant manner.
Observe minimum distance between device underside
and furniture parts of
3
/
8
" (10 mm).

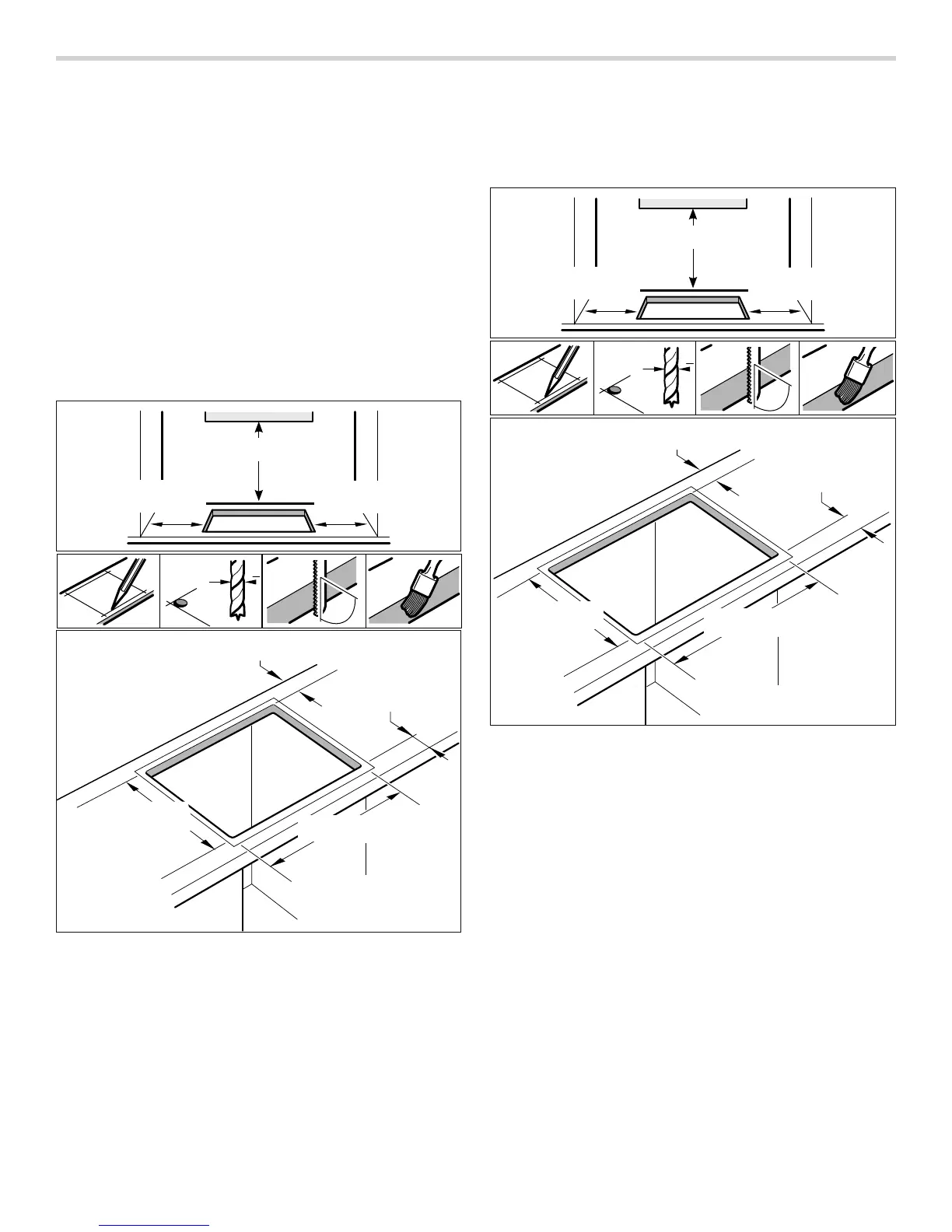

Cutout dimensions for 30" cooktops
Models: NEM5066UC, NET8066SUC, NET8066UC,
NETP066SUC
Cutout dimensions for 36" cooktops
Models: NEM5666UC, NET8666SUC, NET8666UC,
NETP666SUC
