Error handling instructions for Split outdoor unit
Split ODU – 6 720 817 722 (2015/06)
10
ODU Split 11t, 13t, 15t

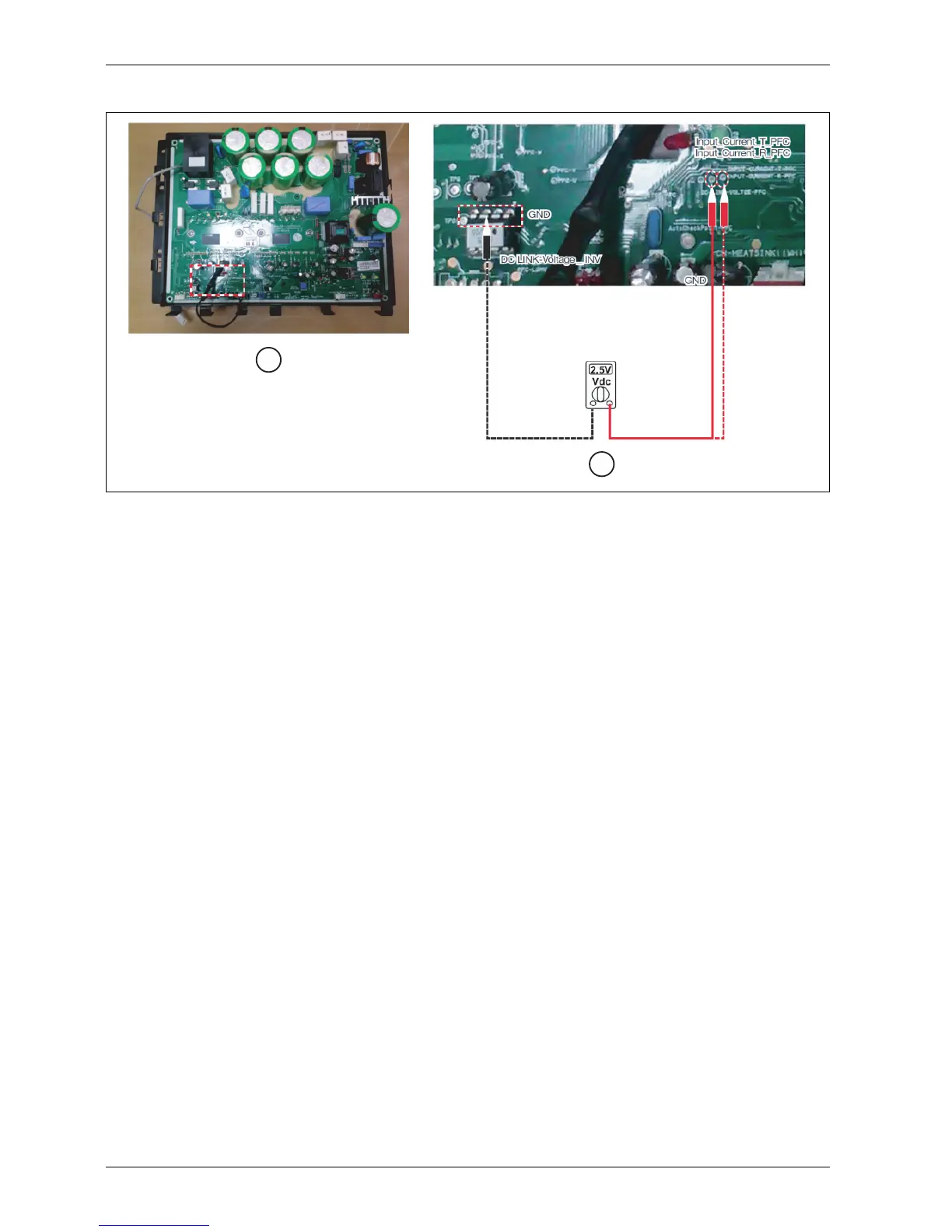

Fig. 10 ODU Split 11t, 13t, 15t
[1] Inverter PCB
[2] CT sensing check point
▶ Check input current T_PFC and R_PFC
▶ Check output of the CT sensor: DC 2.5 0.2V
6 720 817 722-08.1I
1
2
