5. INSTALLATION
4

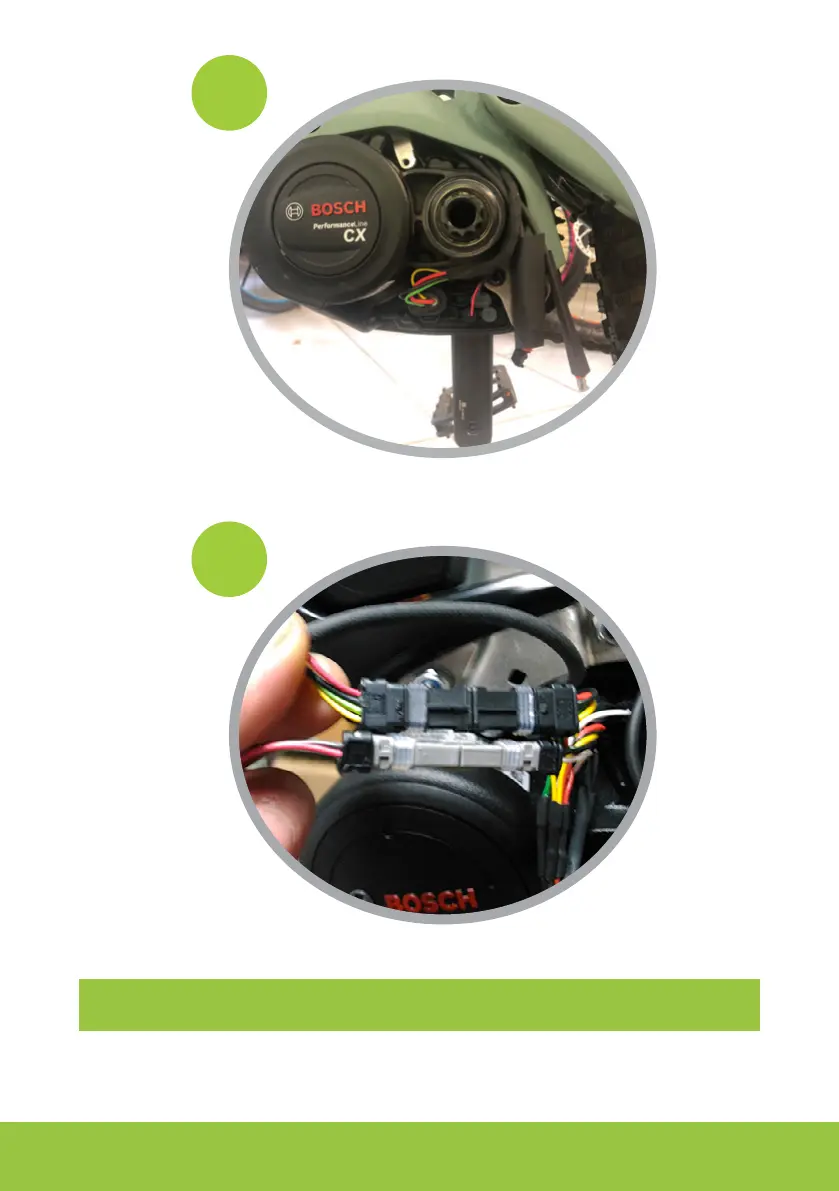

Slide the thermoshrinking sheath (enclosed) in the two disconnected wires,
pushing it over the plug.
5
Insert plugs (output cables from the chip) in their respective two sockets
(cables disconnected from the engine) respecting the correct wire color:
DISPLAY PLUG > YELLOW-YELLOW / GREEN-GREEN / BLACK-BLACK / RED-RED
AND SPEED SENSOR PLUG > BLACK-BLACK / WHITE-RED
USE EXTREME ATTENTION TO CORRECTLY ASSEMBLE THE COLORS! CAUTION: WRONG CONNEC-
TION LEADS TO SHORTCIRCUIT, DAMAGES NOT COVERED BY WARRANTY!
