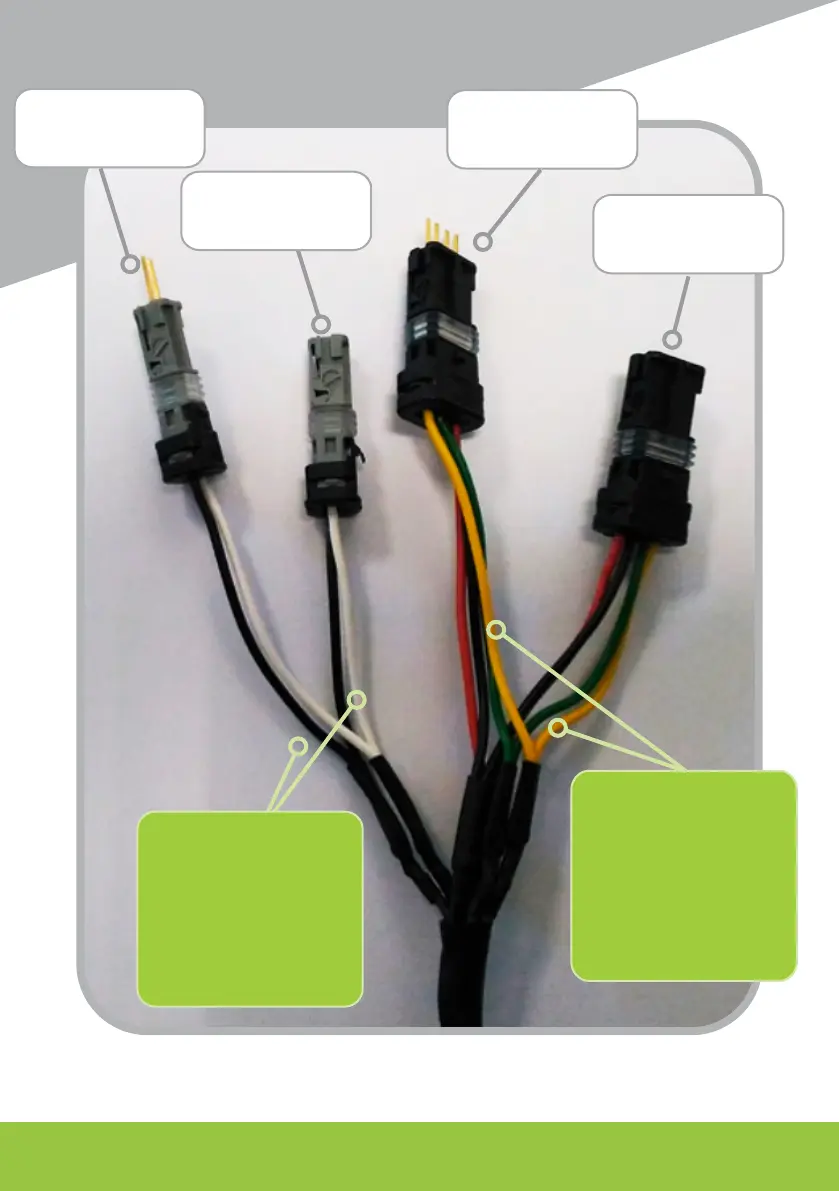

6. INSTALLATION
SPEED SENSOR
SOCKET
PEED SENSOR
PLUG
HMI (DISPLAY)
PLUG
HMI (DISPLAY)
SOCKET
TO THE DISPLAY
(HMI) PLUG:
RED => RED
BLACK => BLACK
GREEN => GREEN
YELLOW => YELLOW
(SEE PHOTO 5)
TO THE SPEED
SENSOR PLUG:
BLACK => BLACK
RED => WHITE
(SEE PHOTO 5)
