English – 6
0 275 U07 XSC | (30.05.2018) Bosch eBike Systems

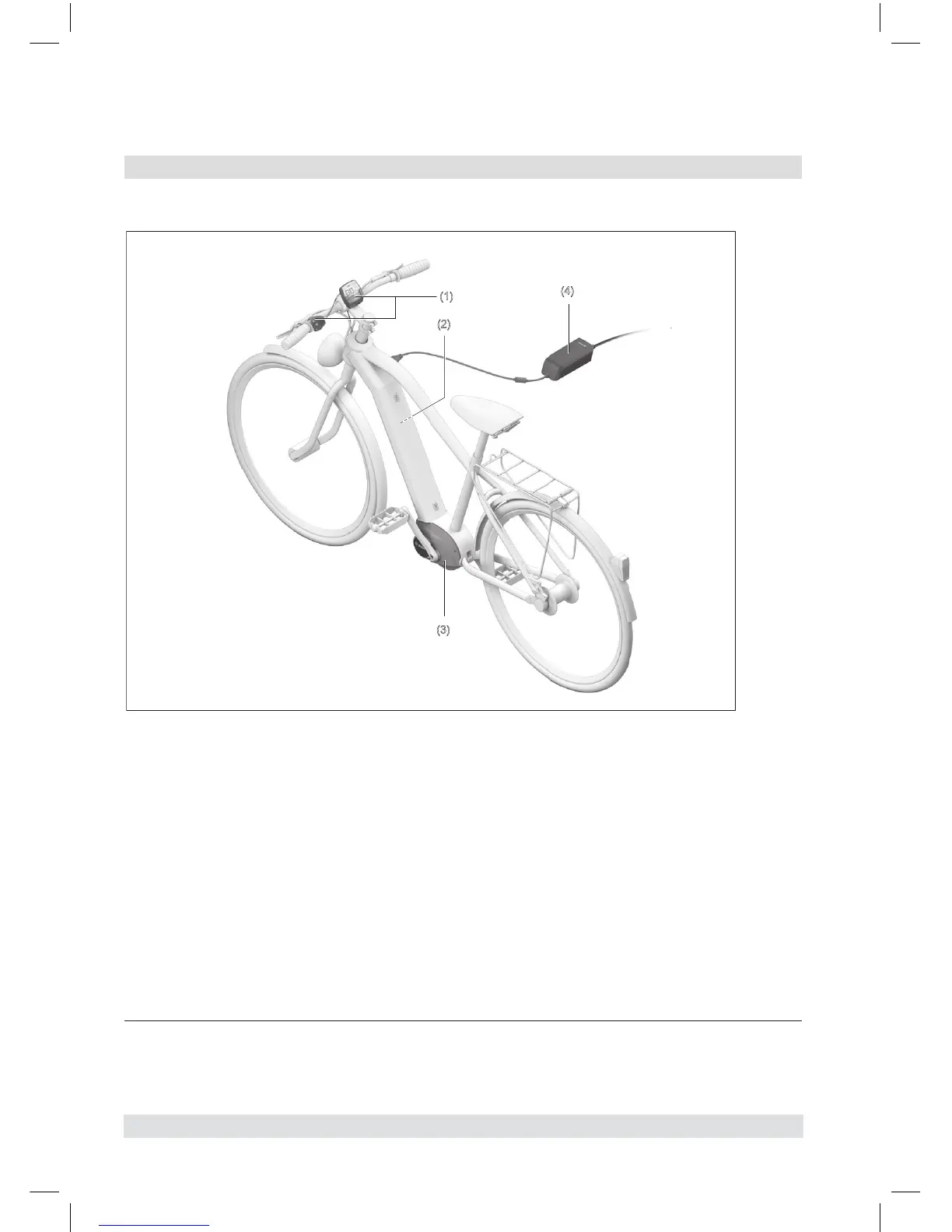

Bicycle View (PowerTube)
(1)
(2)
(3)
(4)
Bosch Drive System Components
All representations of bike components are schematic
and can deviate from your eBike.
(1)
On-board computer
(2)
Frame-mounted battery "PowerTube"
(3)
Drive unit
(4)
Charger
Operating your Bosch Drive System
Getting Ready to Ride
u Read and understand all safety warnings and in-
structions. Failure to follow the below warnings
could result in death or serious injury.
u Protect others from death or serious injury. Pre-
vent unauthorized use. Always remove battery
from the bicycle when not in use and store in a se-
cure location. Failure to secure your bicycle from
unauthorized use can result in death or serious in-
jury to others.
u Read and understand the influences on the oper-
ating range when planning your ride (see "Influ-
ences on range", pageEnglish–8).
Before your first ride
Check your bicycle owner’s manual for important in-
formation about the bike components like brakes,
pedals, gears, shifting, etc.
u While riding, do not become distracted by the
onboard computer and always remain alert to all
riding conditions. The on-board computer should
only be used in a stationary and safe start-up posi-
tion. Utilize the operating unit to change motor as-
sistance levels while riding.
u Check your bicycle manual for maximum riding
weight of your bicycle. Overloading your bicycle
can result in component failure which can result in
death or serious injury. Typically maximum riding
weight is defined by the sum of the rider’s weight
plus the weight of any luggage.
Intended Use
u Understand your bike and its intended use by
consulting your bicycle owner’s manual. Using
your bike the wrong way and for a purpose it was
not designed can result in death or serious injury.
The Bosch Drive System components are intended
exclusively for your eBike and must not be used for
other purposes.
Your Bosch drive unit is not intended for towing an-
other bicycle. For trailer towing, consult your bicycle
owner’s manual and trailer owner’s manual for towing
instructions and towing compatibility.
Safe Start-up Procedure
u Follow the safe startup procedure below. Failure
to follow safe startup procedure can result in death
or serious injury.
Preparations
Before starting check the following:
– Check that you have unplugged the battery charger
– Your battery pack is locked in place (Pull on the bat-
tery pack to ensure it is locked in place)
– Remove the battery pack key
Start Riding
– Sit in the saddle with both feet touching the ground
and two hands on the handlebars.
– Once you are in a stable position, turn on the Bosch
on-board computer. The Bosch Drive System will al-
ways start up in OFF mode.
– Place both hands on the handlebars and begin ped-
aling.
English – 7
Bosch eBike Systems 0 275 U07 XSC | (30.05.2018)
