Bosch Drive System Components
All representations of bike components are schematic
and can deviate from your eBike.
(1)
On-board computer
(2)
Frame-mounted battery "PowerTube"
(3)
Drive unit
(4)
Charger

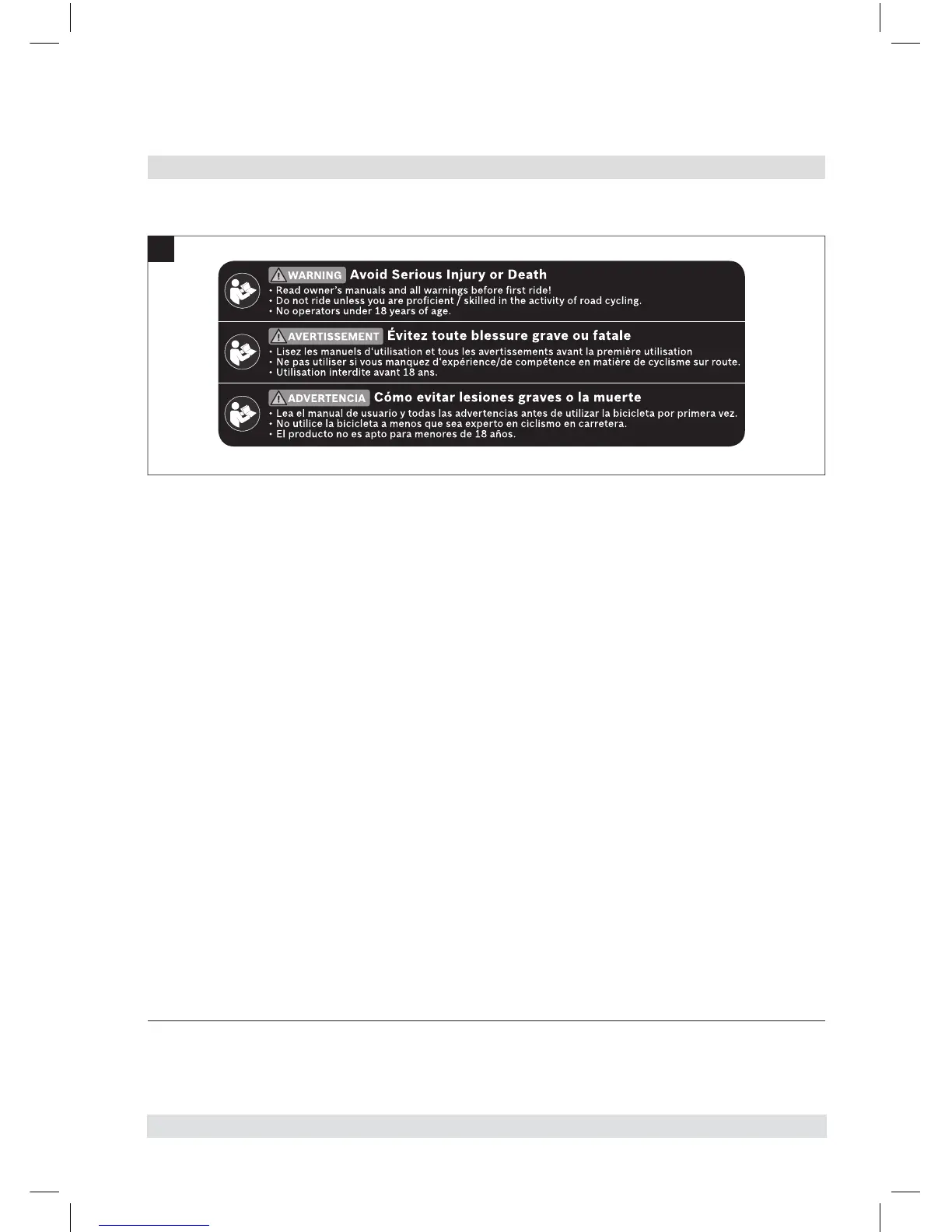

On-Product Warning Labels
A
A
Safety Warnings on the eBike
u Warning labels have been placed on the Bosch
eBike System for your protection. Read and fol-
low the instructions of the labels on the product
carefully. If a label becomes illegible or comes
off, contact your Bosch bicycle dealer to obtain a
replacement. Replacement safety labels are pro-
vided by Bosch at no charge.
English – 7
Bosch eBike Systems 0 275 U07 XSS | (30.05.2018)
