8 | English
1 619 929 K00 | (28.7.11) Bosch Power Tools
f Apply the machine to the workpiece only when
switched on. Otherwise there is danger of kickback when
the cutting tool jams in the workpiece.
Switch the machine on and guide the machine with even feed
over the surface to be planed.
To achieve high-grade surfaces, work only with low feed and
apply pressure on the centre of the planer base plate.
When machining hard materials (e.g. hardwood) as well as
when utilising the maximum planer width, set only low planing
depths and reduce planer feed, as required.
Excessive feed reduces the surface quality and can lead to
rapid clogging of the chip ejector.
Only sharp blades achieve good cutting capacity and give the
machine longer life.
The integrated park rest 21 also allows for continued planing
at any given location on the workpiece after an interruption:
– With the park rest folded down, place the machine on the
location of the workpiece where the planing is to be contin-
ued.
– Switch on the machine.
– Apply the supporting pressure onto the front part of the
planer base plate and slowly push the machine forward
(n). This tilts the park rest upward (o) so that the rear
part of the planer base plate faces on the workpiece again.
– Guide the machine over the surface to be planed (p) with
even feed.
Beveling Edges (see figure H)
The V-grooves in the front planer base plate allow quick and
easy beveling of workpiece edges. Depending on required
bevel width, use the corresponding V-groove. For this, place
the planer with the V-groove onto the edge of the workpiece
and guide it along the edge.
Planing with Parallel/Beveling Guide (see figure I)
Mount the parallel guide 22 to the machine using the fasten-
ing bolt 2.
Carry out the planing procedure several times until the re-
quested rebating depth is reached. Guide the planer applying
sideward supporting pressure.
Maintenance and Service
Maintenance and Cleaning
f Before any work on the machine itself, pull the mains
plug.
f For safe and proper working, always keep the machine
and ventilation slots clean.
Ensure easy operation of the park rest 21 and clean it regular-
ly.
When the carbon brushes wear below acceptable service tol-
erances, the machine will automatically cut out. The machine
must be sent to customer service for maintenance (for ad-
dress, see the “After-sales Service and Customer Assistance”
section.
If the machine should fail despite the care taken in manufac-
turing and testing procedures, repair should be carried out by
an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always in-
clude the 10-digit article number given on the type plate of
the machine.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Our customer service representatives can answer your ques-
tions concerning possible applications and adjustment of
products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au

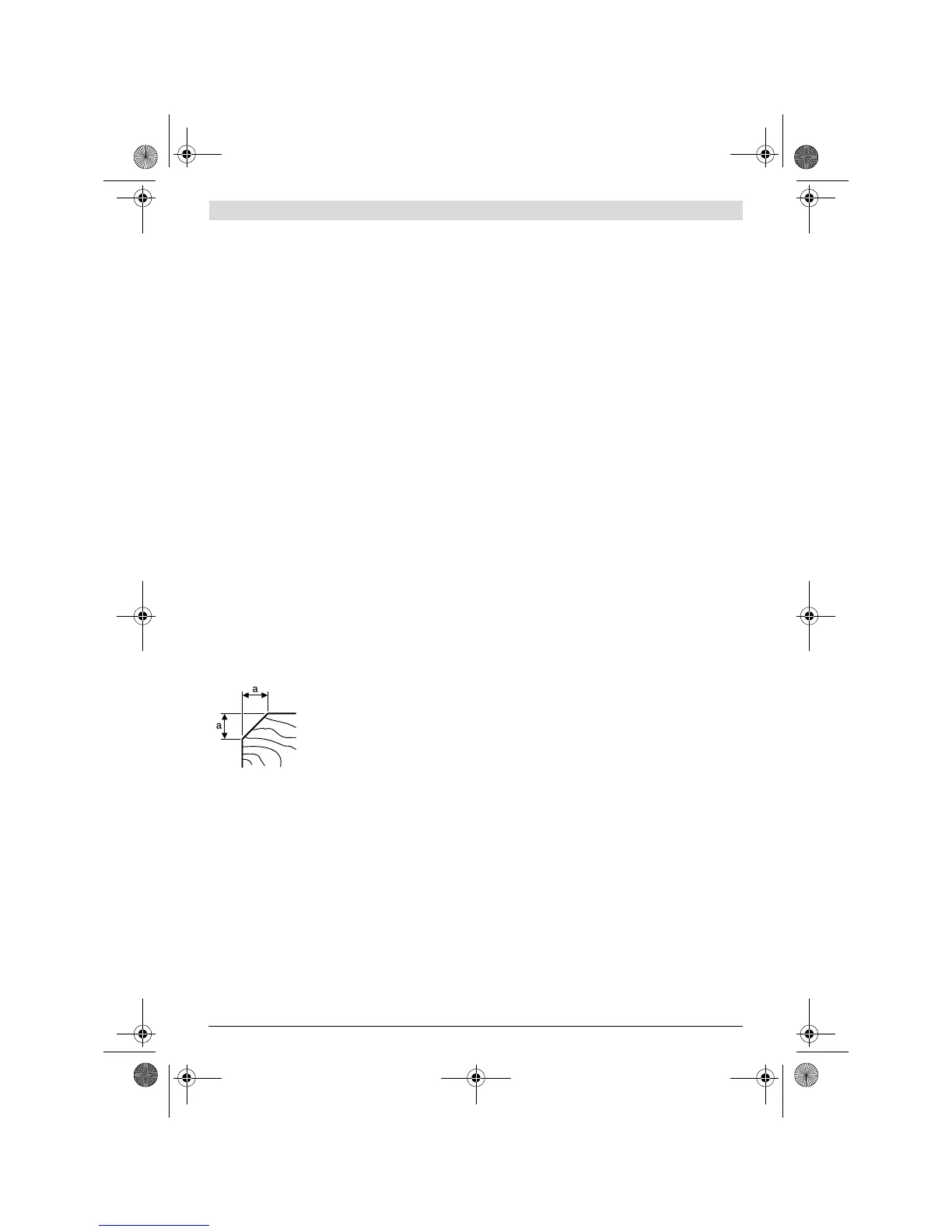

Groove to be used Dimension a
(mm)
none 0 – 4
small 2 – 6
medium 4 – 9
large 6 – 10
