Installation en
17
5Installation
Instal l ati on
Preparing for installation
Caution!
Ensure that there are no electrical wires, gas pipes or
water pipes in the area where holes are to be drilled.
If the extractor hood is to be operated in exhaust-air
mode, a flue duct must be fitted.
If the extractor hood is to be operated in air-recirculation
mode, an optional accessory must be fitted. To do this,
refer to the installation instructions provided. The flue
duct does not need to be fitted for air-recirculation
mode.

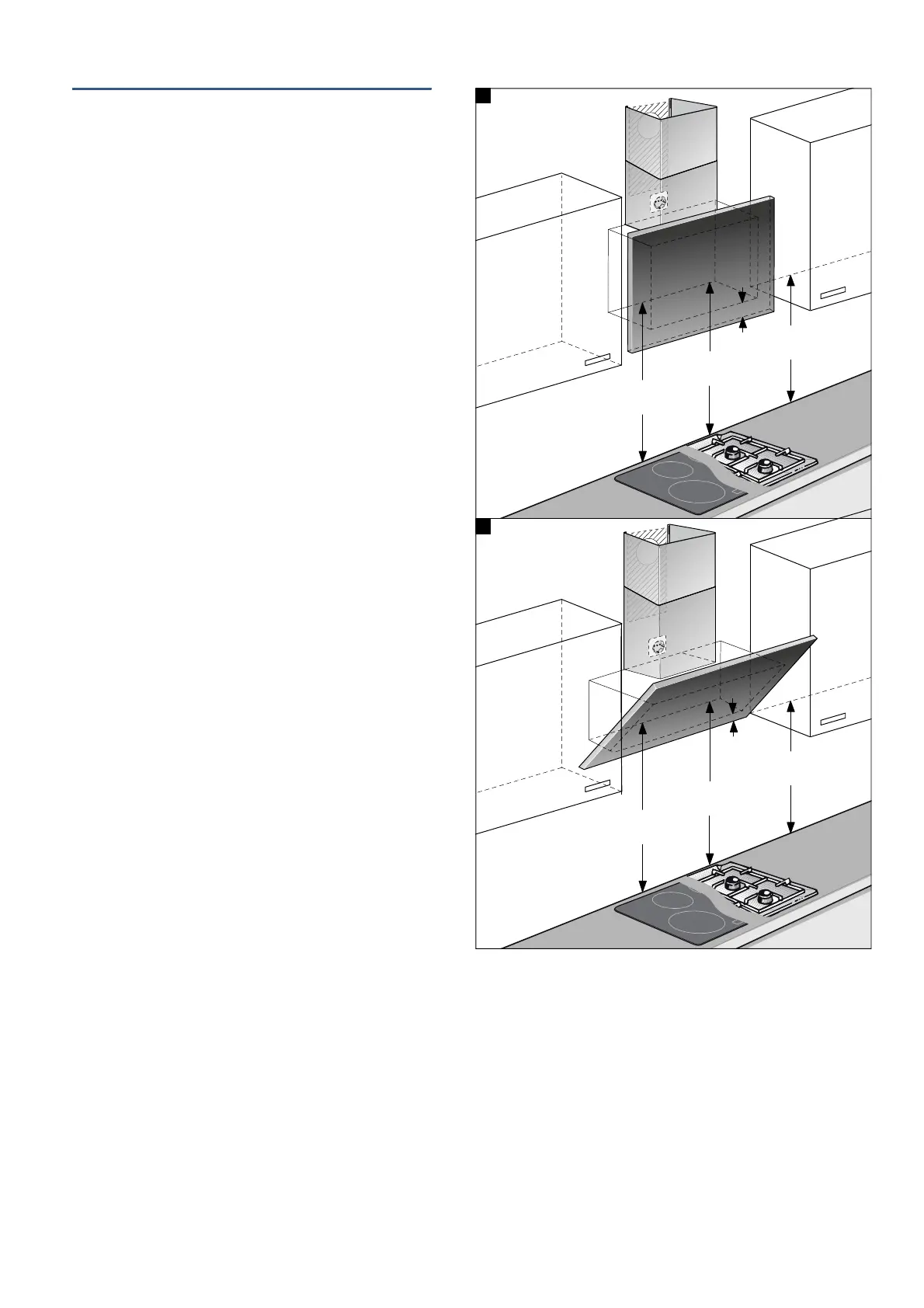

1. Determine where the extractor hood should be
positioned and lightly mark where the lower edge of
the appliance should be on the wall. Determine
where the middle should be based on the hob.
Note: We recommend fitting the extractor hood such
that the lower edge of the glass screen is in line with
the lower edges of the adjacent wall-hung cabinets.
Make sure that the specified safety clearances from
the hob are complied with.
2. Place the template against the line drawn on the wall
and fasten it in place. Mark where the screws should
be inserted.
To fit the flue duct, the template must be cut along
the marked cut line.
3. Drill 8 mm diameter holes to a depth of 80 mm for
fastening the appliance, remove the template and
press in the wall plugs flush with the wall.
$
%
]
]
[
PP
[
PP
[
PP
[
PP
\
\
