Removing the PowerTube battery (pivot)

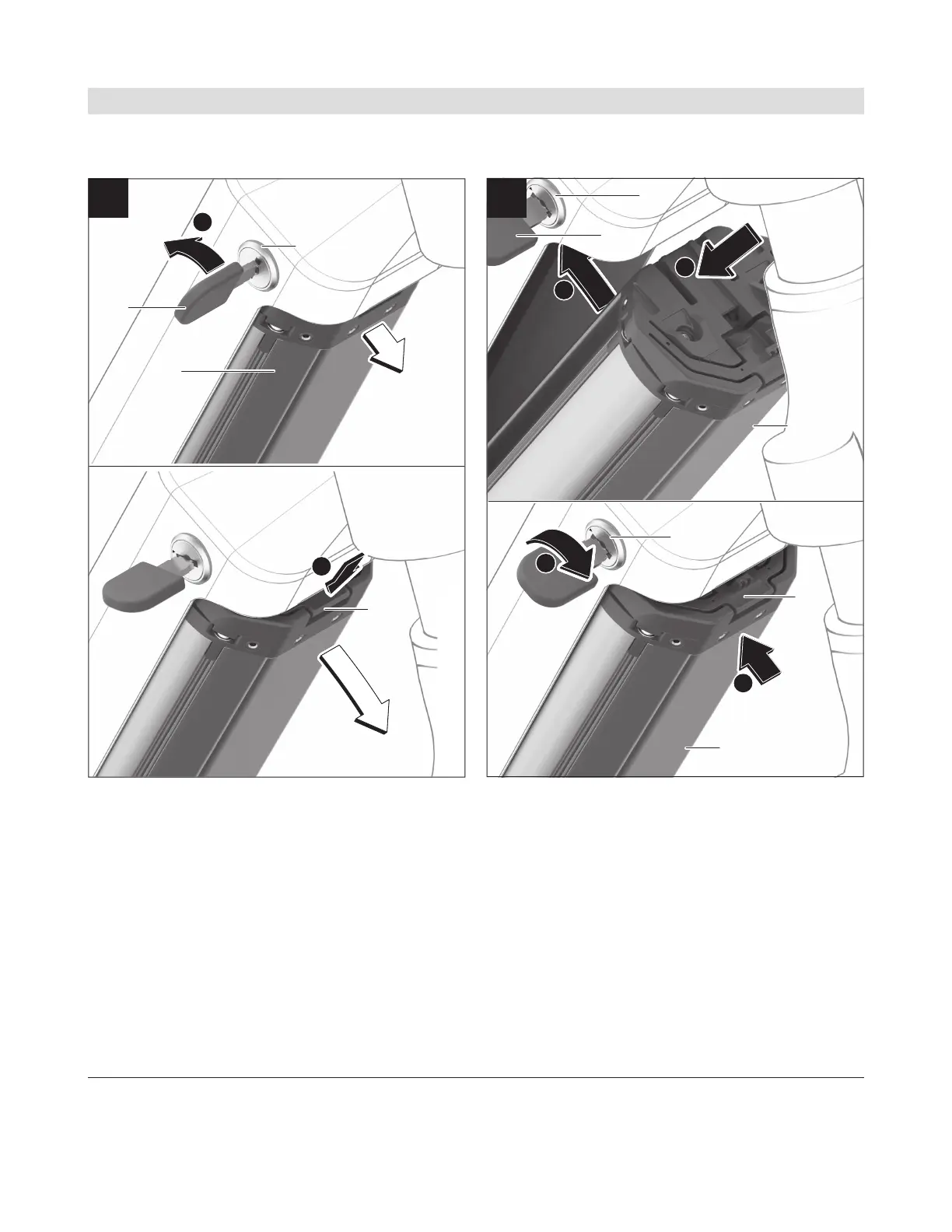

(seefigureA)
2
1
(2)
(8)
(4)
(1)
A
❶
To remove the PowerTube battery(4), open the
lock(2) using the key(1). The battery will be un-
locked and fall into the safety restraint(8).
❷ Press on the safety restraint from above. The
battery will be unlocked completely and fall into
your hand. Pull the battery out of the frame.
Note: As a result of varying designs, the battery may
need to be inserted and removed using a different
method. Read the eBike manufacturer's operating in-
structions.
Inserting the PowerTube battery (pivot)
(seefigureB)
4
3
1
2
(1)
(2)
(8)
(4)
B
(4)
(2)
In order for the battery to be inserted, the key (1)
must be inserted into the lock (2) and the lock must
be open.
❶
To insert the PowerTube battery (4), place it so
that its contacts are in the lower holder of the
frame.
❷ Push the battery upwards until it is held by the
safety restraint (8).
❸ Hold the lock open with the key and press the
battery upwards until you hear it click into place.
Check that the battery is secure in all directions.
