Bosch PowerPack 725 - Removing the PowerTube battery (axial); Inserting the PowerTube battery (axial)

English – 14
❹
Always secure the battery by closing the lock (2)
– otherwise the lock may open and the battery
may fall out of the holder.
Always remove the key (1) from the lock (2) after
locking it. This prevents both the key from falling out
and the battery from being removed by unauthorized
third parties when the eBike is not in use.

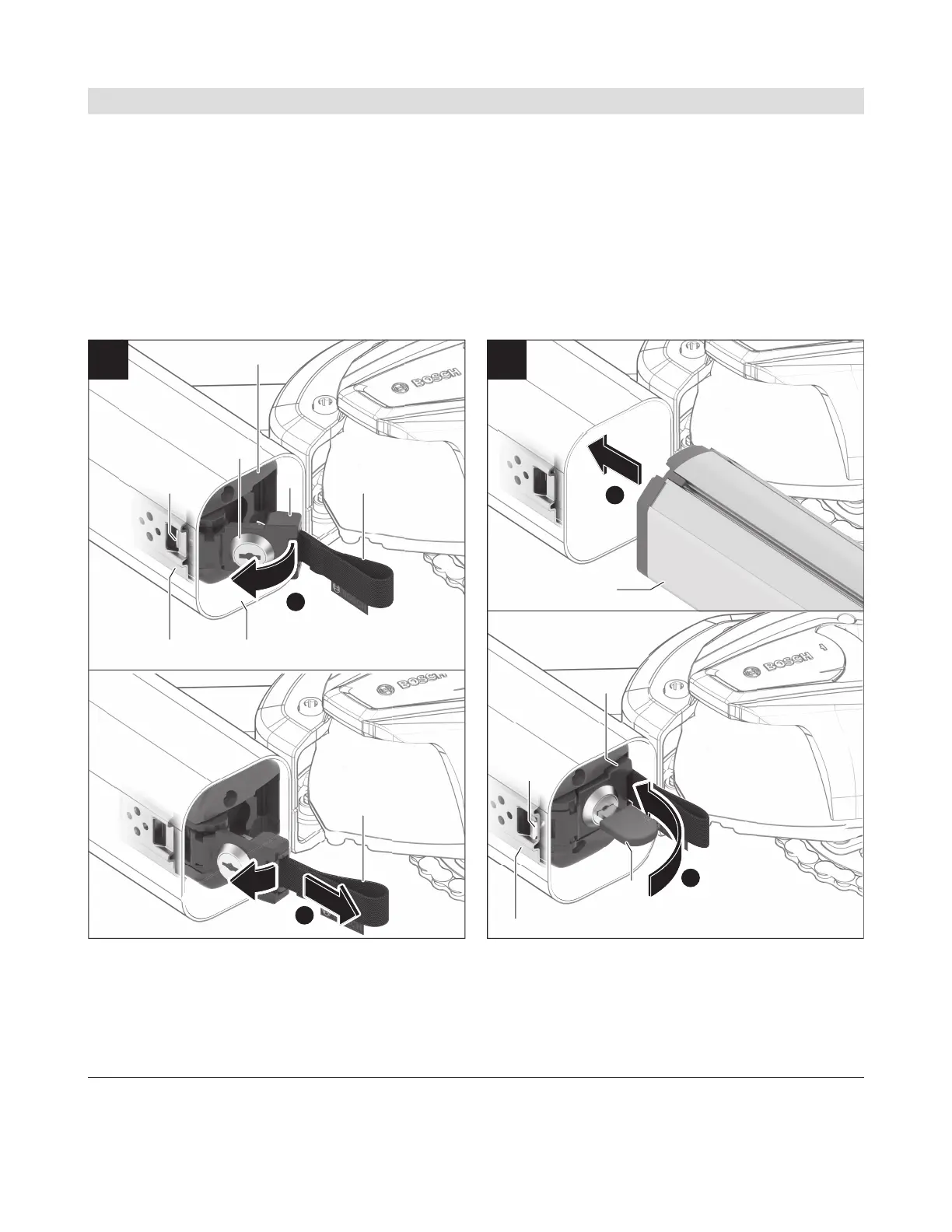

Removing the PowerTube battery (axial)
(seefigureC)
1
2
(10)
(10)
(3)
(11)
(1)
(2)
(12)
(9)
C
❶
To remove the PowerTube battery(12), open
the lock(2) using the key(1), remove the
key(1) and fold the locking mechanism(9) to
the side.
❷
Use the pull strap(10) to pull the battery(12)
out of the frame and keep hold of it so that it
does not fall out of the frame.
Note: As a result of varying designs, the battery may
need to be inserted and removed using a different
method. Read the eBike manufacturer's operating in-
structions.
Inserting the PowerTube battery (axial)
(seefigureD)
2
1
(12)
(11)
(1)
D
(3)
(9)
In order for the battery to be inserted, the locking
mechanism(9) must be folded to the side. At this
point, the key(1) must not be inserted in the battery
lock(2).
