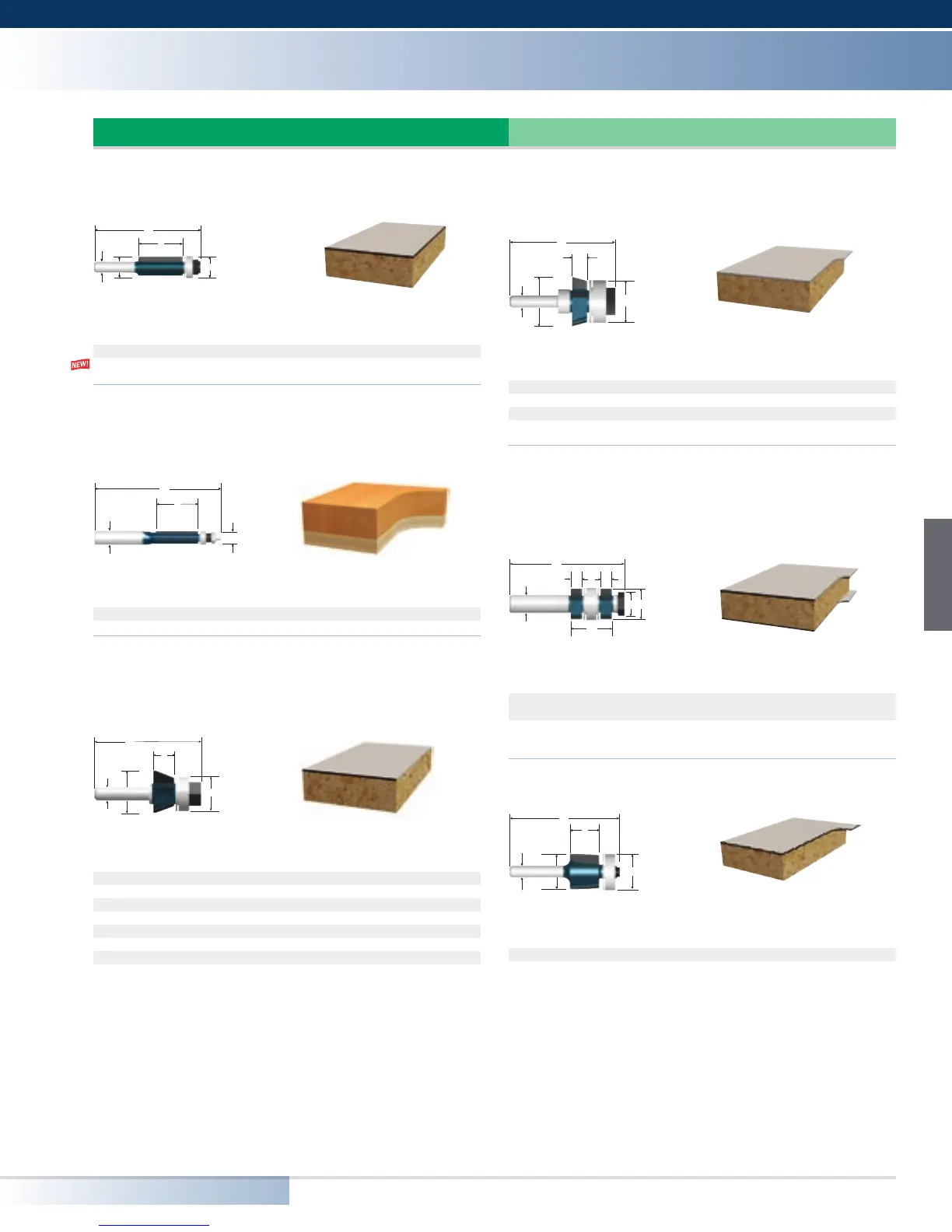

Router 
Bits
Carbide Tipped Triple Flute Laminate Flush Trimming Bit
Micrograin bit provides chatter-free production trimming with an extra smooth,
flush trim cut. Compact ball-bearing assembly is equipped with a glue shield.
E
A
D
C
B
Carbide Tipped Triple Flute Trimming Bit
Micrograin bit for laminate trimming and trim cuts on heavier work when
cutting with a templet. Can be used with 2 ball bearings to widen the
bearing surface and reduce templet wear.
• Extra ball bearing 2 610 906 500
A
D
C
B
Carbide Tipped Triple Flute Flush & Bevel Laminate
Trimmer Assemblies
Micrograin bits for extra smooth production trimming. Assembly
includes an arbor, replaceable 3-wing cutter and ball bearing.
• Replacement arbor 82808
A
D
C
B
E
Carbide Tipped Four Flute Laminate Trimmer Assemblies
Micrograin bits for ultra-smooth finish trimming. Ball bearing is equipped with a
glue shield and individual assembly components are replaceable.
• Replacement arbor 82812
E
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter
85216M 1/2" 1" 1/4" 2-9/16" 1/2"
85439M 1/2" 1" 1/2" 3-1/4" 1/2"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85602M 1/2" 1-1/2" 1/2" 4-1/2"
Item #
A.
Overall
Dia.
B.
Cutting
Edge Lgth.
C.
Shank
Dia.
D.
Overall
Length
E.
Bearing
Dia. Angle Fits
85421M
5/8" 3/8" 1/4" 1-61/64" 5/8" 9° —
85422M 3/4" 3/8" 1/4" 1-15/16" 5/8" 22° —
85420M 7/8" 3/8" 1/4" 1-15/16" 5/8" Flush —
85423M 1" 1/4" 1/4" 2-1/4" 1" 45° —
85509M* 5/8" 3/8" 1/4" - - Flush 85421M
85511M*
29/32" 3/8" 1/4" - - 22° 85420M
85512M*
1-39/64" 1/4" 1/4" - - 45° 85423M
85516M*
47/64" 3/8" 1/4" - - 9° 85422M
* Replacement cutters
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter Angle
85414M 7/8" 5/16" 1/4" 2-1/8" 7/8" Flush
85415M 7/8" 5/16" 1/4" 2-1/8" 7/8" 15°
85417M* 7/8" 5/16" 5/16" — — Flush
* Replacement cutters
Carbide Tipped Four Flute Double Flush Trimmer Assembly
Micrograin bit for flush trimming laminates on both sides of a piece in a single
pass. Provided spacers adjust distance between cutters to allow width of cut
from 1/2" to 1-1/2". 4-flute design provides ultra-smooth finish.
• Replacement arbor 82813
• Spacers 3 600 200 503
E
A
D
C
B
1
B
1
B
2
Carbide Tipped Helical Laminate Trimming Bits
Provide extra smooth production trimming.
A
E
D
C
B
Item #
A.
Overall
Dia.
B1.
Cutting
Edge Lgth.
B2.
Overall
Cutting Lgth.
C.
Shank
Dia.
D.
Overall
Lgth.
E.
Bearing
Dia.
85416M 7/8" 5/16"
Adjustable
1/2" to 1-1/2"
1/2" 3-9/32" 7/8"
85417M* 7/8" 5/16" N/A 5/16" N/A N/A
* Replacement cutters
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter Angle
85452M 3/4" 5/8" 1/4" 2-1/4" 3/4" Flush
85453M 3/4" 3/8" 1/4" 2" 3/4" 15°
