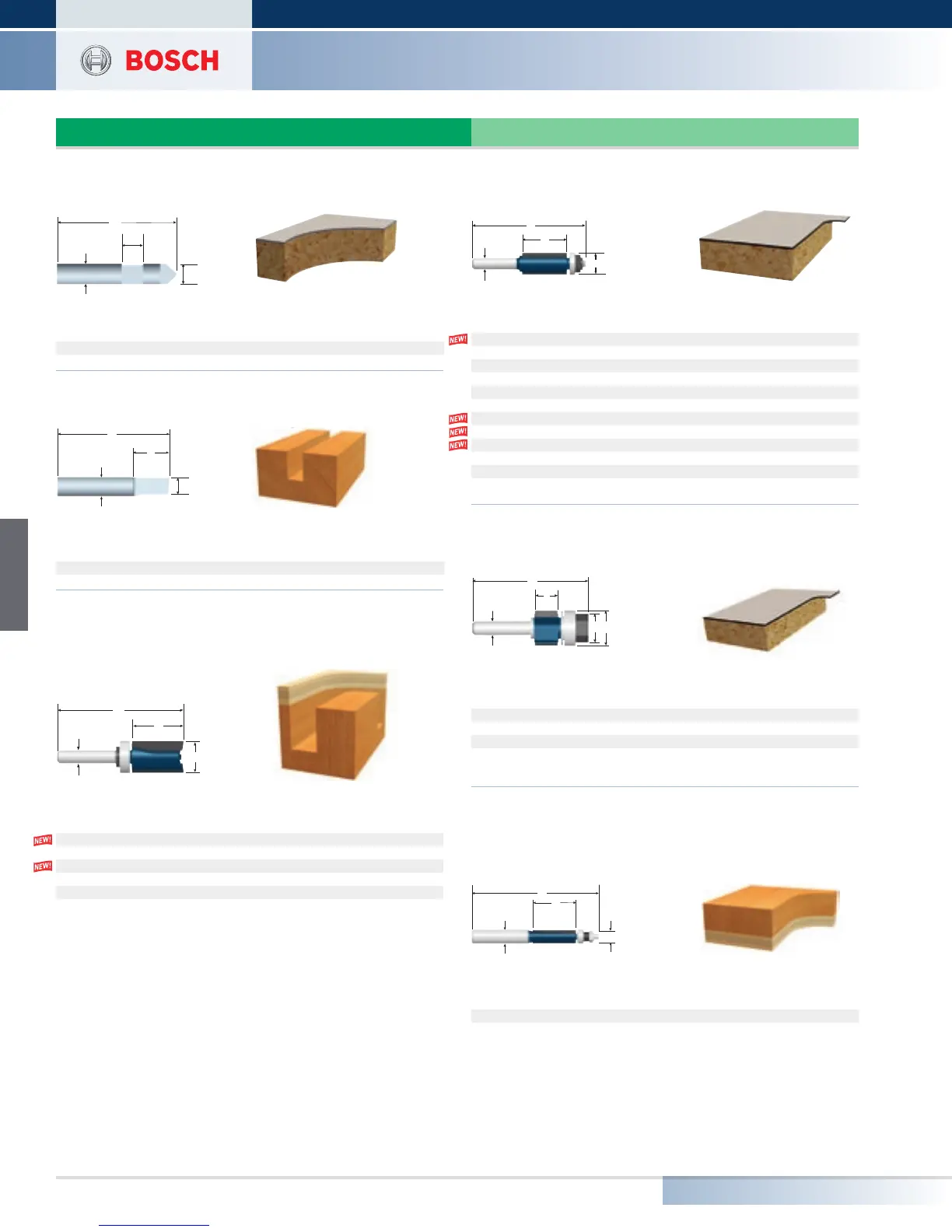

Solid Carbide Hole & Flush Cut Trimmer Bit
Bit drills through surface lamination into precut openings and trims edges
flush in one operation.
A
D
C
B
Solid Carbide Rip Bit & Slotter
Used for slotting or ripping sheets of laminates, woods and paneling.
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85280 1/4" 5/16" 1/4" 1-1/2"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85287 1/4" 1/4" 1/4" 1-1/2"
Carbide Tipped Top Bearing Mounted Straight/Trim Bits
Micrograin bits with top mounted ball bearing ride against templet
for pattern routing.
• Replacement collar 3 600 231 500
• Replacement set screw 3 603 401 506
A
D
C
B
Carbide Tipped Double Flute Laminate Flush Trimming Bits
Micrograin bits ideal for fast, smooth, accurate trim cuts with a shielded,
compact ball bearing pilot.
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85674M 1/2" 1/4" 1/4" 1-5/8"
85680M 1/2" 1" 1/4" 2-1/2"
85672M 1/2" 1-1/4" 1/4" 2-3/4"
85681M 5/8" 1" 1/4" 2-3/4"
85682M 3/4" 1" 1/4" 2-1/2"
85671M 1-1/8" 1-1/2" 1/2" 3-1/2"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length Type of Cut
84501M 1/4" 3/4" 1/4" 2-15/32" Flush
85269M 3/8" 1/2" 1/4" 2-1/8" Flush
85268M 3/8" 1" 1/4" 2-5/8" Flush
85437M 1/2" 3/8" 1/4" 2-5/64" Flush or 22° bevel
85267M 1/2" 1/2" 1/4" 2-1/4" Flush
85441M 1/2" 1" 1/2" 3-1/4" Flush
85440M 1/2" 5/16" 1/4" 2" Flush or 15° bevel
85438M 1/2" 5/16" 1/4" 2" Flush or 25° bevel
85424M 1/2" 3/8" 1/4" 1-3/4" 22° bevel
85442M 1/2" 2" 1/2" 4-27/64" Flush
85266M 1/2" 1" 1/4" 2-5/8 " Flush
84500M 3/4" 9/16" 1/2" 2-3/8" Flush
Carbide Tipped Double Flute Laminate Trimmer Assemblies
Micrograin bits ideal for fast, accurate trim cuts.
• Shank replacement arbor 82808
A
D
C
B
E
Carbide Tipped Double Flute Templet/Trimming Bit
Micrograin bit provides smooth cuts for laminate trimming, cutouts and
pattern cutting. It can also be used with two ball bearings to widen the
bearing surface and reduce templet wear.
• Extra ball bearing 2 610 906 500
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter Angle
85431M 5/8" 3/8" 1/4" 1-15/16" 5/8" 10°
85430M 5/8" 3/8" 1/4" 1-15/16" 5/8" Flush
85435M* 5/8" 25/64" 1/4"
Fits 85430M Flush
85436M* 39/64" 3/8" 1/4"
Fits 85431M 10°
* Replacement cutters
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
85601M 1/2" 1-1/2" 1/2" 4-1/2"
