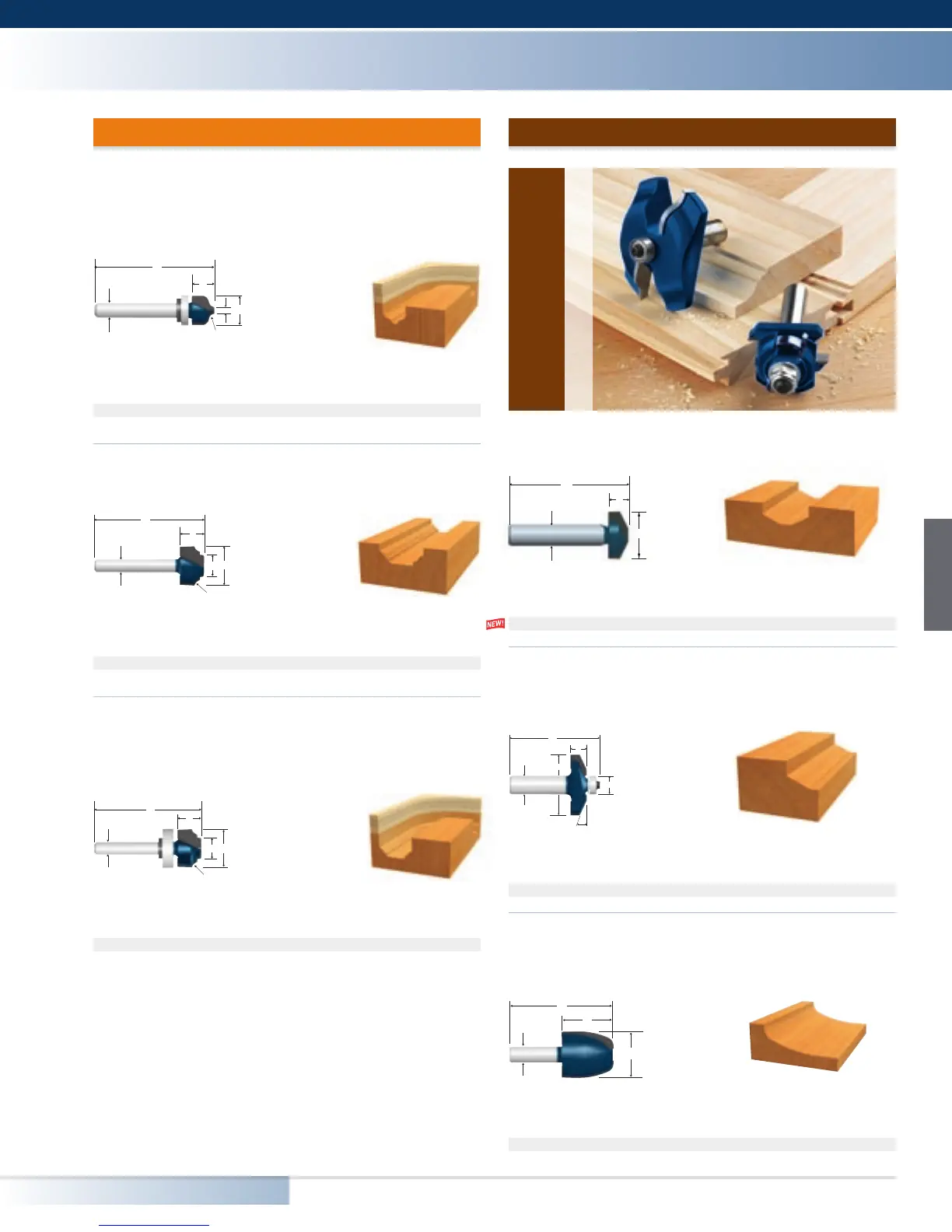

Top Bearing Mounted – Carbide Tipped Ogee Bits
Top bearing mounted bits are ideal for templet cutting, grooving,
lettering and plunge cutting from above and below the workpiece.
• Replacement collar 3 600 231 500
• Replacement set screw 3 603 401 506
A
D
E
F
C
B
Carbide Tipped Traditional Bits
Micrograin bits ideal for wide, shallow, decorative cuts. The flat
bottom gives a raised effect. Also recommended for edge forming.
A
D
E
F
C
B
Top Bearing Mounted – Carbide Tipped Traditional Bits
Ideal for templet cutting, grooving, lettering and plunge cutting
from above and below the workpiece.
• Replacement collar 3 600 231 500
• Replacement set screw 3 603 401 506
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Small
Diameter
F.
Radius
85686M 1/2" 3/8" 1/4" 2" .157 5/64"
85687M 3/4" 1/2" 1/4" 2-1/8" .249 9/64"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Small
Diameter
F.
Radius
85474M 1/2" 13/32" 1/4" 2-1/16" .270 5/64"
85475M 3/4" 7/16" 1/4" 2-1/16" .338 9/64"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Small
Diameter
F.
Radius
85690M 1/2" 13/32" 1/4" 2-1/16" .270 5/64"
85691M 3/4" 7/16" 1/4" 2-1/16" .338 9/64"
Bits
D
A
C
B
Carbide Tipped Raised Panel Bit
Use a raised panel bit for cutting wide, shallow grooves in one pass for a raised
panel effect.
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85480M 1-1/8" 1/2" 1/2" 2-3/4"
Carbide Tipped Raised Panel Bit with Bearing
Micrograin control cut bit used to create clean, simple lines to accentuate a surface.
• Recommended for use with a router table. Minimum recommended
panel thickness is 3/4"
A
D
E
F
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter
F.
Angle
85583M 1-5/8" 1/2" 1/2" 2-3/8" 1/2" 25°
Carbide Tipped Cove Vertical Panel Raiser Bit
Micrograin bit with a long, swooping radius (1/4" - 2-1/2") for creating beautiful panels.
• Recommended for use with a router table. Minimum recommended
panel thickness is 3/4"
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85708M 1-1/8" 1-5/8" 1/2" 3-1/8"
