Bosch PR20EVSK - Router Bits Cabinetry;Joinery Bits; Carbide Tipped Rabbeting Bits; Carbide Tipped Drawer Lock Joint Bit; Carbide Tipped Keyhole Bits

134
Boschtools.com
Toll Free: 877-BOSCH-99
Bits

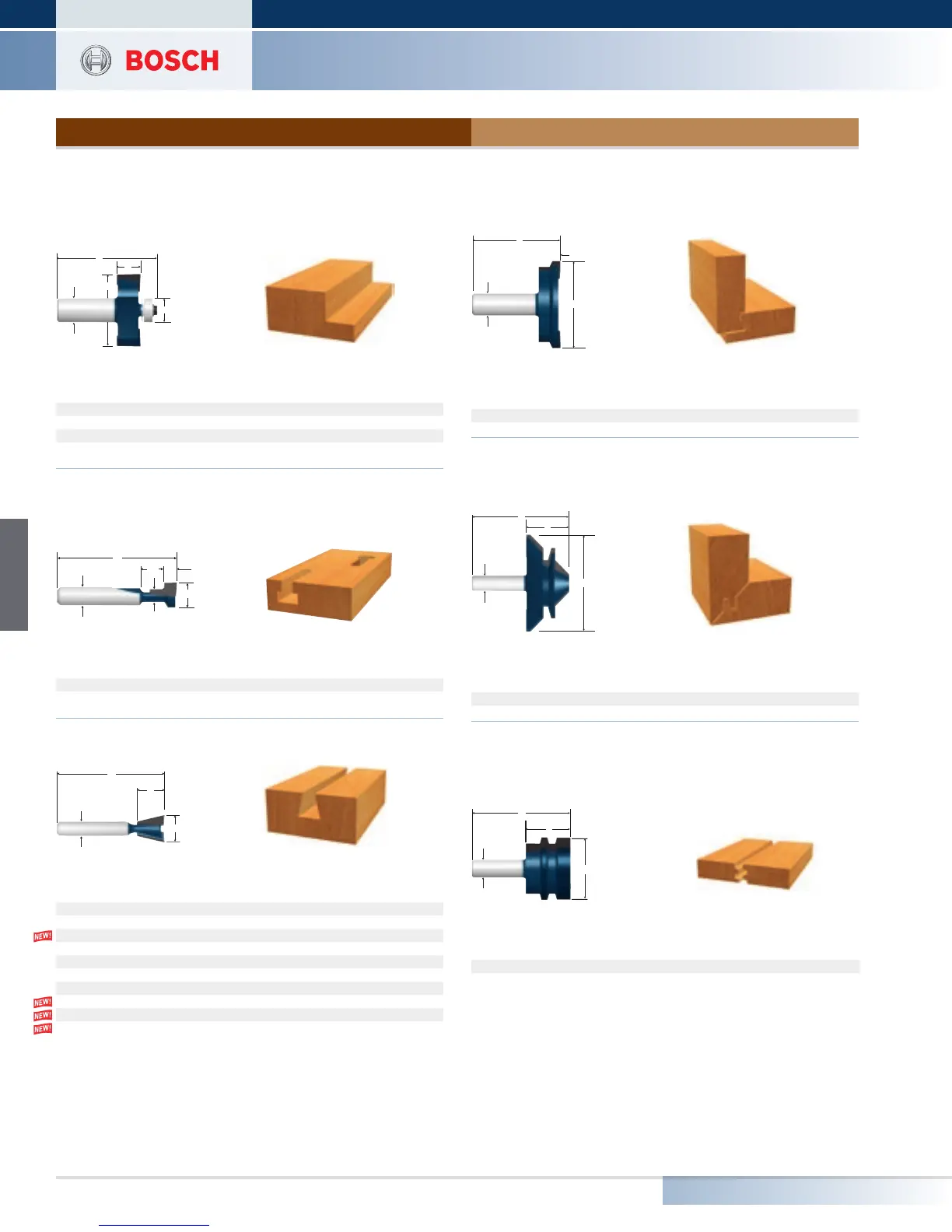

Carbide Tipped Rabbeting Bits
Micrograin control cut bits for making rabbeting cuts without the use
of a router guide.
• To increase the width of rabbet by 1/16" for 85218M and 85590M,
purchase 3/8" diameter bearing 3 600 900 501 and dust shield 3 600 120 507
A
D
E
C
B
Item #
Rabbet
Width
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter
85218M 3/8" 1-1/4" 1/2" 1/4" 2" 1/2"
85590M 3/8" 1-1/4" 1/2" 1/2" 2-3/8" 1/2"
85614M 1/2" 1-3/8" 1/2" 1/4" 2" 1/2"
85615M 1/2" 1-3/8" 1/2" 1/2" 2-3/8" 1/2"
Carbide Tipped Keyhole Bits
For plunge and slots cuts. Route mounting slots in picture frames and plaques.
• 85608M is a carbide tipped bit
• 85078 is a high speed steel bit
A
A
D
1
12
2
C
B B
Carbide Tipped Dovetail Bits
Micrograin bits for making dovetail joints.
A
D
C
B
Item #
A1.
Large
Diameter
A2.
Small
Diameter
B.
Cutting
Edge
C.
Shank
Diameter
D.
Overall
Length
85078 3/8" 3/16" 3/16" 1/4" 1-7/8"
85608M 3/8" 3/16" 3/8" 1/4" 1-1/2"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length Degree
84706M 3/8" 3/8" 1/2" 2-1/2" 9
84700M 3/8" 3/8" 1/2" 2" 9
84702M 3/8" 3/8" 3/8" 2" 9
84703M 1/2" 1/2" 1/4" 2" 14
84709M 1/2" 17/32" 1/2" 2-1/2" 14
85240M 17/32" 1/2" 1/4" 1-7/8" 15
84712M 5/8" 7/8" 1/2" 2-5/8" 7
84710M 3/4" 3/4" 1/2" 3" 14
84715M 3/4" 7/8" 1/2" 2-5/8" 7
84705M 1" 1" 1/2" 2-3/4" 14
Carbide Tipped Drawer Lock Joint Bit
Micrograin control cut bit for constructing durable drawer joints.
• Recommended for use with a router table
A
D
C
B
Carbide Tipped Lock Miter Bit
Micrograin control cut bit for making right angle joints and glue joints.
• Recommended for use with a router table
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
84512M 1" 1/2" 1/2" 1-5/16"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
84508M 2-11/16" 1-3/16" 1/2" 2-5/8"
Carbide Tipped Reversible Glue Joint Bit
Micrograin control cut bit used for making glue-ups and strong joints
in door panels, tabletops and more.
• Recommended for use with a router table
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
84505M 1-7/8" 1-3/32" 1/2" 2-5/8"
