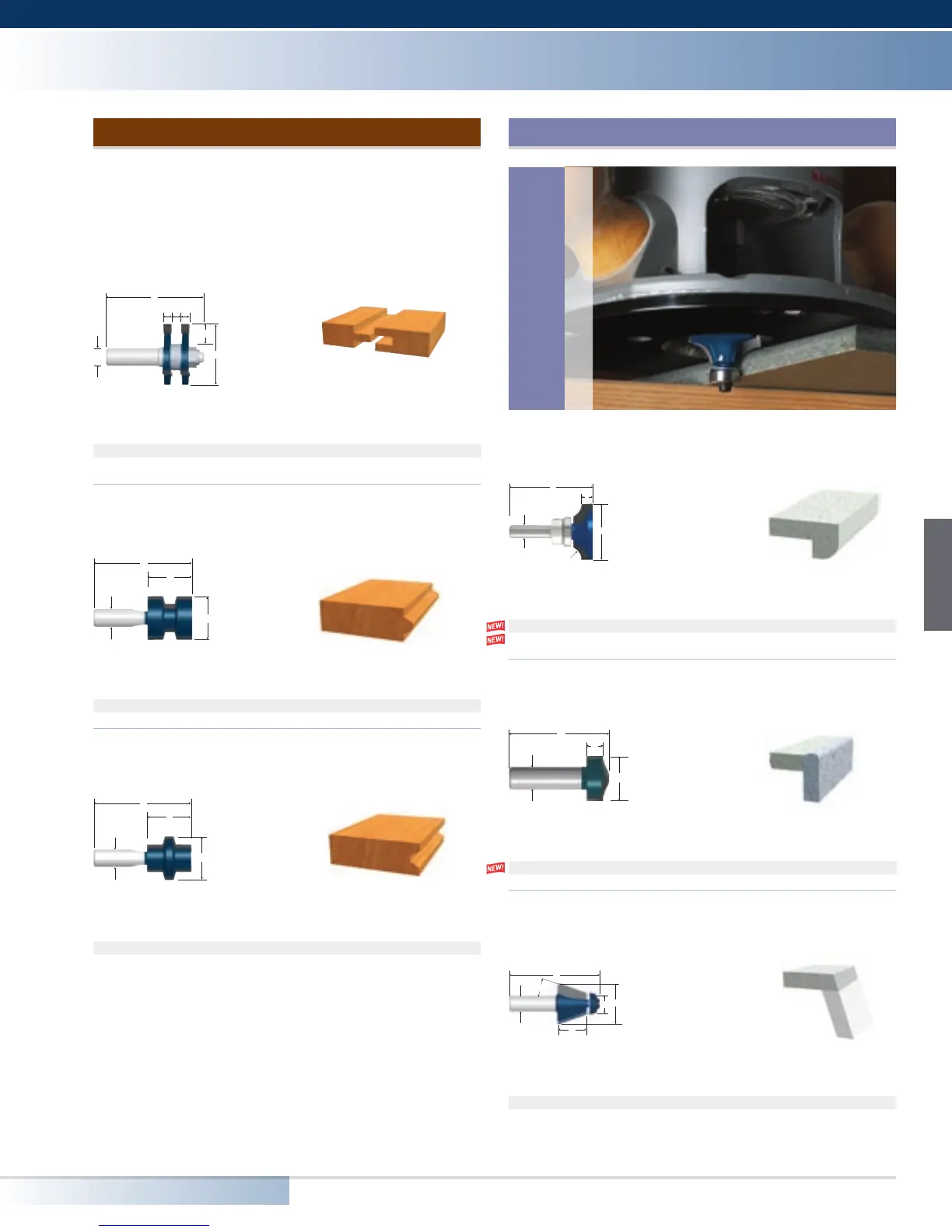

Carbide Tipped Tongue & Groove Bits
Micrograin bits designed to cut tongue and grooves on 1/2" through 3/4" thick
material. To cut the tongue, use the complete assembly; to cut the groove,
remove one slotting cutter.
• Recommended for use with a router table
• For 1/4" replacement arbor assembly use 84626
• 84623M replacement cutter is 85610M; arbor is 84626
• 84624M replacement cutter is 85610M; arbor is 82815
A
D
E
C
B BB
Carbide Tipped Wedge Tongue Bit
Micrograin control cut bit for making tongue style wedge cuts.
• Recommended for use with a router table
A
D
C
B
Carbide Tipped Wedge Groove Bit
Micrograin control cut bit for making groove style wedge cuts.
• Recommended for use with a router table
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
84509M 1-1/4" 1-1/4" 1/2" 2-3/4"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
84510M 1-1/4" 1-1/4" 1/2" 2-3/4"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
E.
Decorative
Cut Depth
84623M 1-7/8" 1/4" 1/4" 2-1/2" 1/2"
84624M 1-7/8" 1/4" 1/2" 2-1/2" 1/2"
Carbide Tipped Under Round Bits
Micrograin bits used for cutting bottom-half of bullnose on 1" or 1-1/2"
material without turning the material over.
A
D
E
C
B
Carbide Tipped No-Drip Bit
Micrograin bit used to cut a no-drip edge where countertop and face
material meet.
D
C
B
A
A
D
E
C
B
F
Carbide Tipped Bevel Bowl Bit
Micrograin bit for use when fabricating solid undermount bowls.
• Replacement ball bearing 3 600 200 514
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
Cutting
Radius
85692M 2-1/8" 3/4" 1/2" 2-7/8" 1/2"
85693M 2-5/8" 1" 1/2" 3 3/4"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85694M 1" 1/2" 1/2" 2-1/8"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter
F.
Cutting
Width
85659M 1-1/4" 15/16" 1/2" 3" 3/4" 10°
