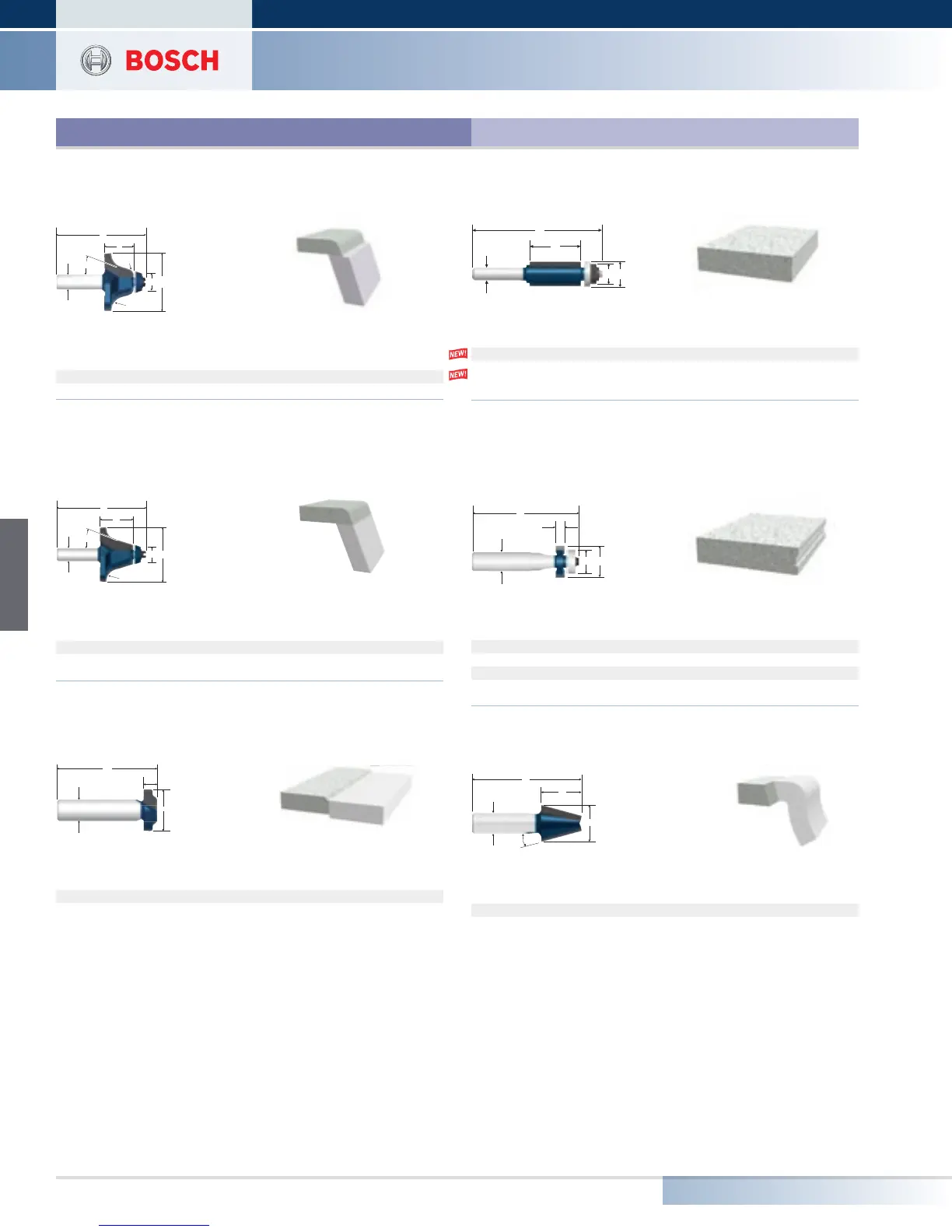

Bosch PR20EVSK - Router Bits Solid Surface Bits; Carbide Tipped Ogee Bowl Bit; Bowl & Sink Trim Bits; Carbide Tipped Roundover Bowl Bits

136
Boschtools.com
Toll Free: 877-BOSCH-99
Bits
Item #
A.
Overall
Dia.
B.
Cutting
Edge Lgth.
C.
Shank
Dia.
D.
Overall
Lgth.
E.
Bearing
Dia.
F.
Cutting
Radius
G.
Angle
85660M 2-1/8" 1" 1/2" 3" 3/4" 1/2" 18°
85661M 2-1/4" 1-1/4" 1/2" 3-1/4" 3/4" 1/2" 18°
Carbide Tipped Ogee Bowl Bit
Micrograin bit for use when fabricating solid undermount bowls.
• Replacement ball bearing 3 600 200 514
A
D
E
F
C
B
G
H
Carbide Tipped Roundover Bowl Bits
Micrograin bit for use when fabricating solid undermount bowls.
• Replacement ball bearing 3 600 200 514
• Use 85695M for ”1“ material thickness
• Use 85696M for ”1-1/2“ material thickness
A
D
E
F
C
B
G
Item #
A.
Overall
Dia.
B.
Cutting
Edge Lgth.
C.
Shank
Dia.
D.
Overall
Lgth.
E.
Bearing
Dia.
F.
Cutting
Angle
G.
Angle
H.
Radius
85662M 2-1/8" 1" 1/2" 3" 3/4" 1/2" 15° 1/2"
Bowl & Sink Trim Bits
For sink cutouts. 85702M creates rough cut-out with 1/16" margin.
85701M creates flush finished cut.
D
C
B
AE
Carbide Tipped Profiler Bit
Micrograin bit for use when mounting Corian® top mounted bowls to
countertops. Use in conjunction with 85648M flush mount bowl bit.
Also works as a groove-forming router bit with 82870 templet guide.
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85670M 31/32" 5/8" 1/2" 2-3/8"
Corian® is a registered trademark of DuPont.
Carbide Tipped Inlay Bits
Micrograin bits for use when inlaying on solid surface and hardwood material.
• For bits with 1/16" inlay depth, use replacement ball bearings 3 600 905 504
• For bits with 1/8" inlay depth, use replacement ball bearings 3 600 905 505
• For bits with 3/16" inlay depth, use replacement ball bearings 3 600 905 506
A
D
E
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter
85650M* 7/8" 1/4" 1/2" 3" 1/2"
85653M* 7/8" 1/2" 1/2" 3-1/2" 1/2"
85656M* 7/8" 3/4" 1/2" 3-1/2" 1/2"
*All bits include bearings for 1/16", 1/8" and 3/16" inlay depths
Carbide Tipped Flush Mount Bowl Bit
Micrograin bit for use when mounting flush or recessed bevel-mount bowls
to countertops. Use in conjunction with Bosch 30 mm templet guide 82870.
A
D
E
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
E.
Angle
85648M 29/32" 15/16" 1/2" 2-1/2" 15°
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
E.
Small
Diameter
85701M 3/4" 1" 1/2" 3-1/2" 0° - Flush Trim
85702M 3/4" 1" 1/2" 3-1/4"
10° - 1/16"
Overhang
Router 
