-8-
Functional Description and Specifications
Disconnect battery pack from tool before making any assembly,
adjustments or changing accessories
. Such preventive safety measures
reduce the risk of starting the tool accidentally.
!
WARNING

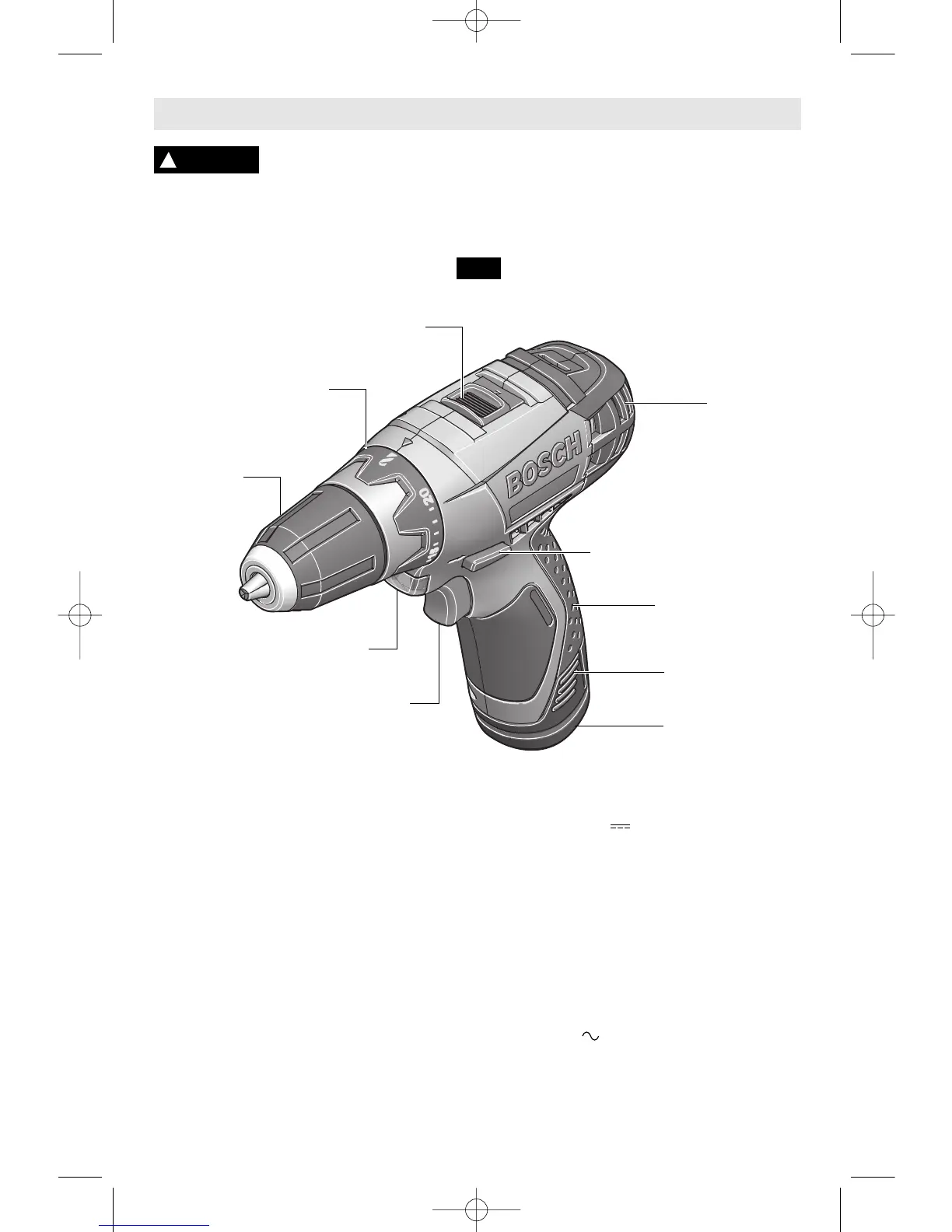

Cordless Drill/Driver
FIG. 1
NOTE: For tool specifications refer to the nameplate on your tool.
Model number PS30
Voltage rating 10.8V/12V MAX
No load speed 1 n
0
0-400/min
No load speed 2 n
0
0-1100/min
Charge time 30 minutes
Maximum Capacities
Chuck size 3/8"
Drilling Wood 3/4" (19 mm)
Screw Sizes 9/32" (7 mm)
Battery pack BAT411
Charger BC430
Voltage rating
120 V 60 Hz
FORWARD/REVERSING
BUTTON & TRIGGER LOCK
VARIABLE SPEED
TRIGGER SWITCH
BUILT IN
WORK LIGHT
VENTILATION
OPENINGS
RUBBERIZED
GRIP
BATTERY
RELEASE TABS
BATTERY
PACK
GEAR SHIFTER
KEYLESS
CHUCK
ADJUSTABLE CLUTCH
