RE 15305-WA, Version 11.2019, Bosch Rexroth AB
Installation | Hägglunds CA Radial piston hydraulic motor 23/76
7.3 REQUIRED TOOLS
7.3.1 Assembly tool for CA motor
For easier and faster mounting of the motor on the coupling adapter or driven
shaft, a special assembly tool can be used. The assembly tool is passed through
the motor and screwed into a pre made thread in the coupling adapter or driven
shaft. The motor is pulled onto the shaft by turning the nut on the assembly tool.
Material ID Assembly tool for CA motor:
Material ID R939003803

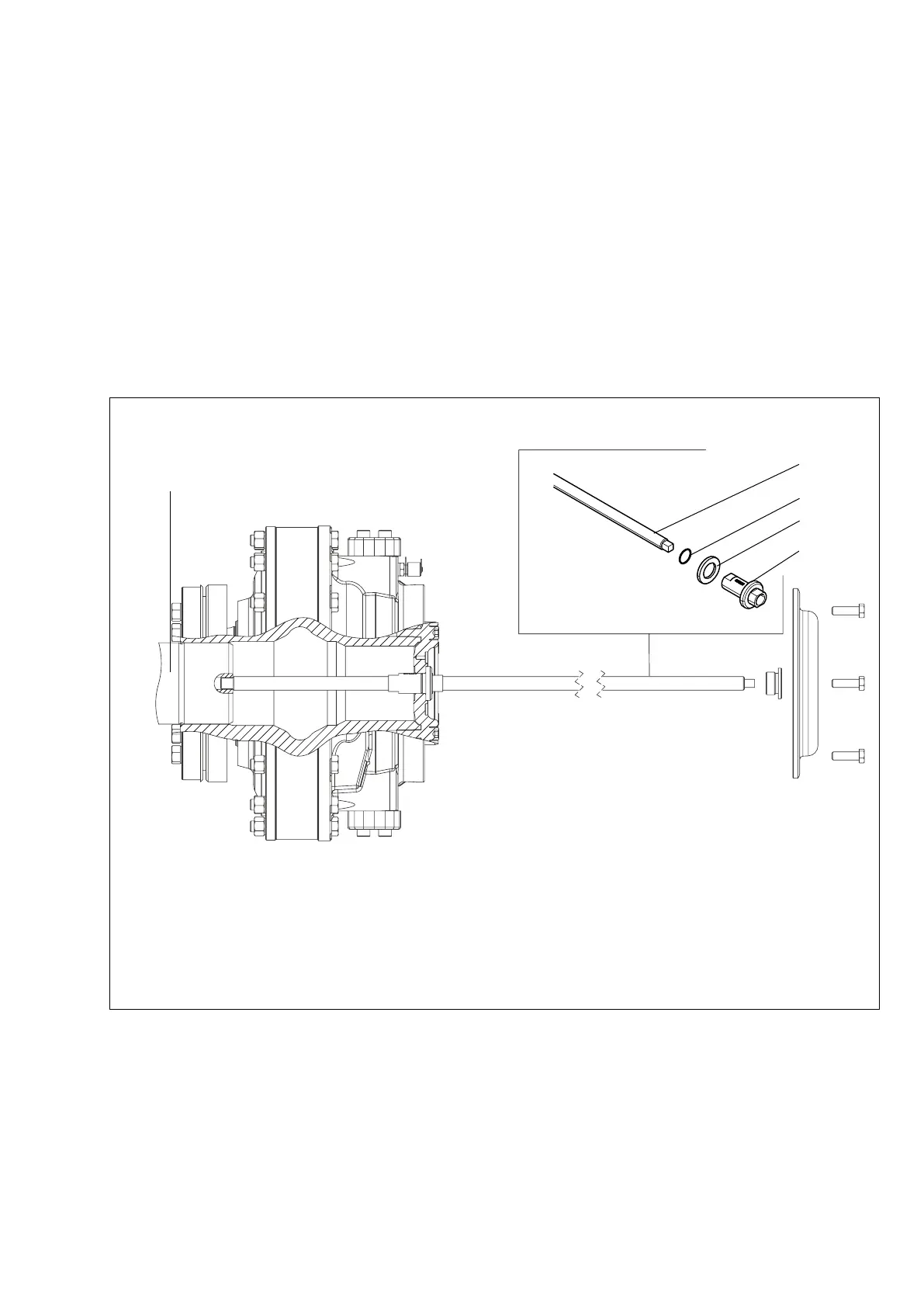

Fig. 13: Mounting CA motor with assembly tool
DD00100406, DD00104814
1
Driven shaft
2
Assembly tool
3
4
Assembly tool
1. Tie rod
2. O-ring
3. Washer
4. Nut
