Transport and storage | Hägglunds CA Radial piston hydraulic motor 19/76
6.2 PRODUCT STORAGE
The motor is delivered with internal protection in the form of an oil lm with vapor
state corrosion inhibitors, and external protection in form of a VCI plastic bag. This
provides sufcient protection for indoor storage in normal temperatures for about
12 months.
6.2.1 Standingthemotoronaatsurface
DANGER
Unsecured motor can fall
Danger to life or risk of injury, damage to equipment.
▶ When in storage or during oil lling, the motor must always be secured from
falling.
NOTICE
Incorrect placement of the motor
Risk of damage to equipment.
▶ When in storage with shaft vertical, the motor must always be placed with the
hollow shaft facing down.
▶ It is also advisable to provide supports at the mounting surface of the motor,
see Fig. 11.
When the motor is placed on a at surface such as a oor, it must stand either on
its outer diameter or on the suitably protected end face of the hollow shaft. It is
also advisable to provide supports shown in Fig. 11.

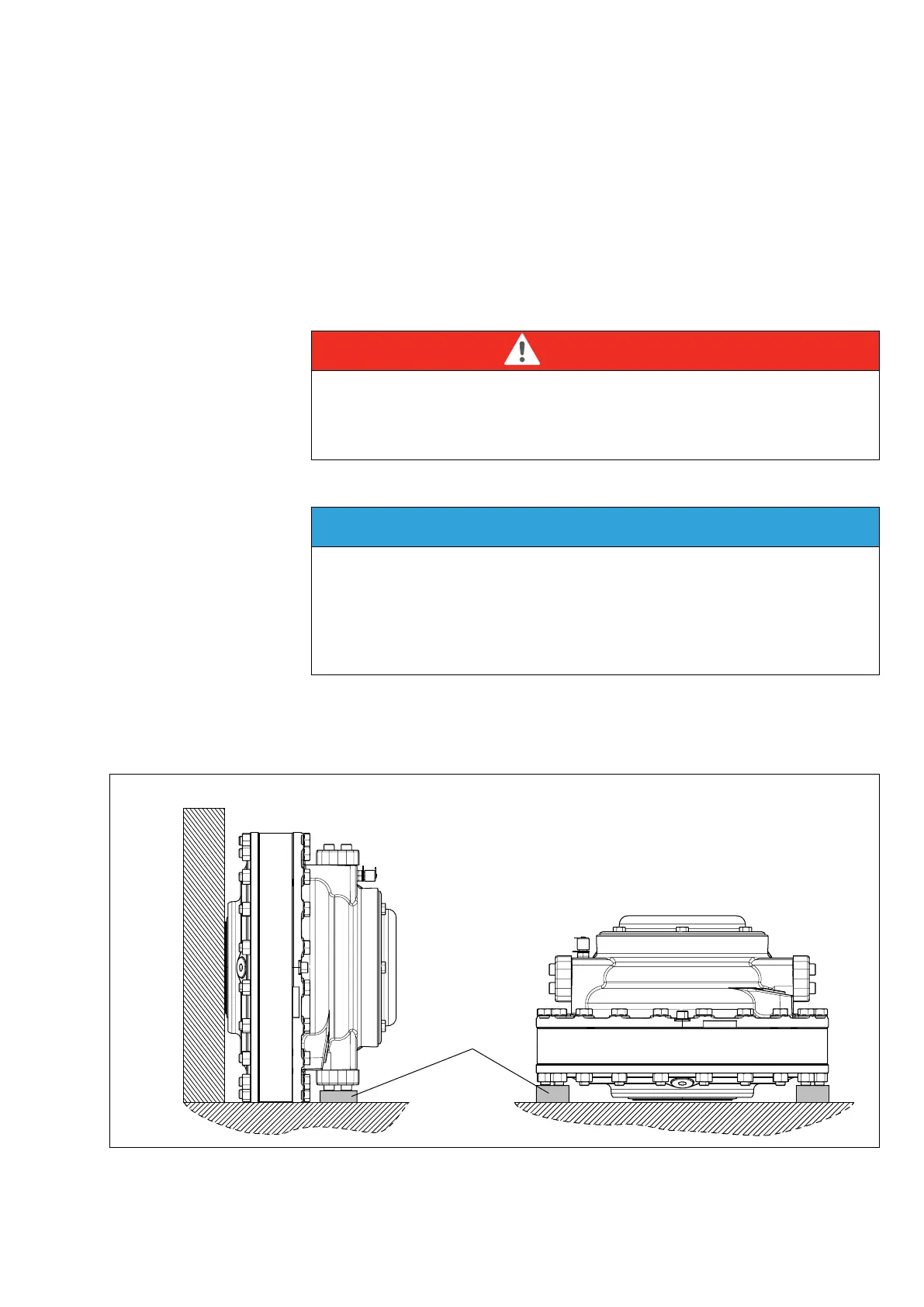

Fig. 11: Example, CA motor standing on a at surface
Support
A) Standing with
shaft horizontal
B) Standing with
shaft vertical
DD00104812DD00104811
